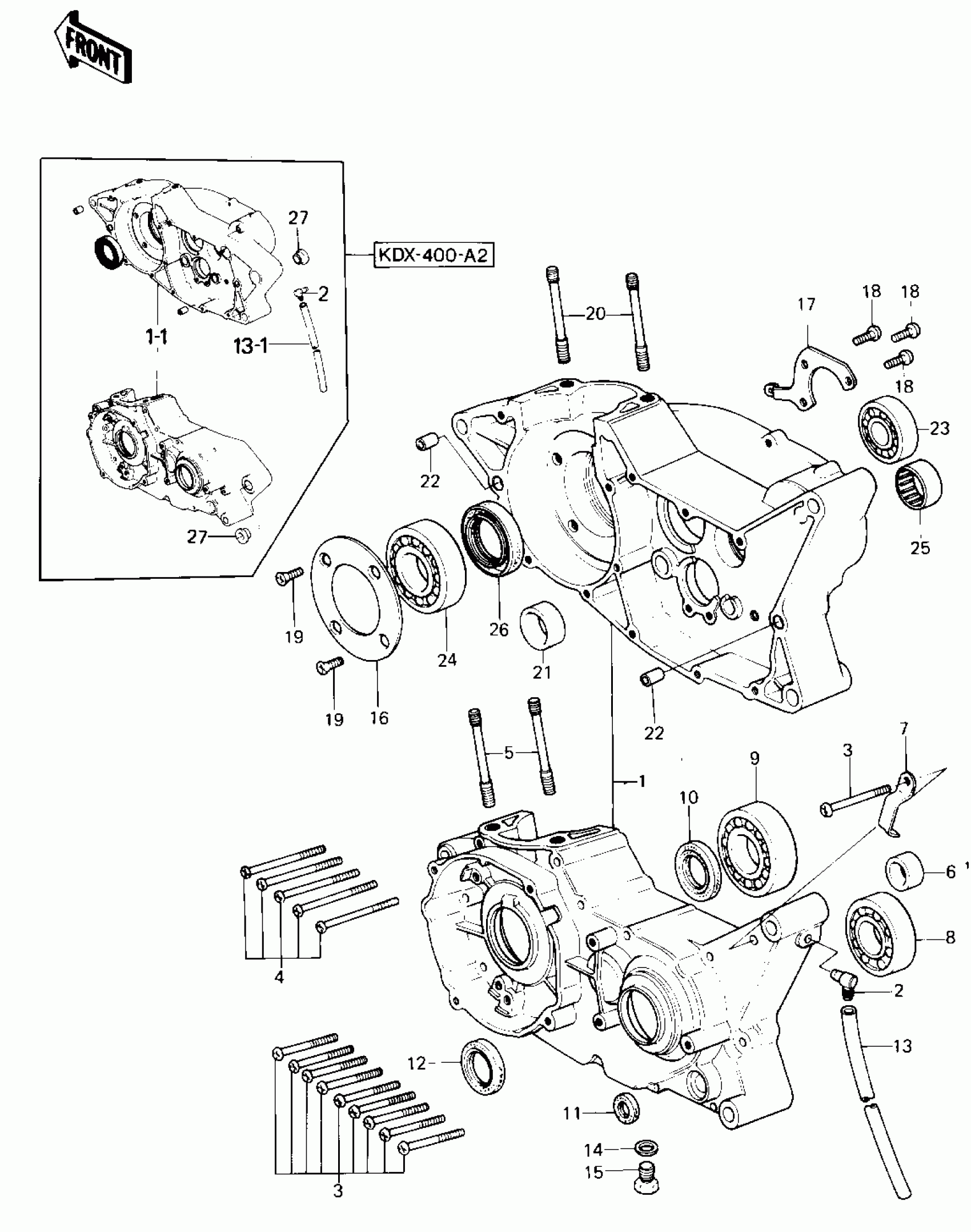

Kawasaki KDX400 CRANKCASE Diagram
#
Description
Price
1-1
CRANKCASE SET,F.BLACK
14001-5044
Unavailable
2
BREATHER
14069-003
$10.29
3
SCREW PAN HEAD 6X50
220B0650
$1.25
4
SCREW PAN HEAD 6X70
220B0670
$3.84
5
STUD,10X72
92004-1023
$8.22
6
BUSHING,23X30X13
92028-132
$38.06
7
CLAMP
92037-1073
Unavailable
8
BEARING-BALL,#6305
92045-1011
$38.42
9
BEARING-BALL,6306SH2,9TC
92045-1027
$61.39
10
SEAL-OIL
92050-057
$23.48
11
SEAL-OIL
92050-082
$8.58
12
SEAL-OIL,TC32457
92049-1159
$8.60
13-1
TUBE,6X9X500
92059-1125
$18.63
14
GASKET,10.5X16X1
92065-058
$3.96
15
PLUG,DRAIN,10X12
92067-001
$4.41
16
PLATE,POSITION,CRANK
14014-1011
Unavailable
17
PLATE,POSITION,DRIVE
14014-1012
Unavailable
18
SCREW-PAN-CROS,6X16
220B0616
$2.84
19
SCREW-CSK-CROS,6X16
221B0616
$0.59
20
STUD,10X72
92004-1023
$8.22
21
BUSHING,26X35X14
92028-131
$38.06
22
PIN,DOWEL,10X14
92043-1037
$0.74
23
BEARING,BALL
92045-1006
Unavailable
24
BEARING-BALL,6306SH2,9TC
92045-1027
$61.39
25
BEARING,NEEDLE,344012
92046-040
Unavailable
26
OIL SEAL,ACJ386210
92049-1046
Unavailable
27
BUSHING,PIVOT MOUNT
92028-1074
Unavailable
