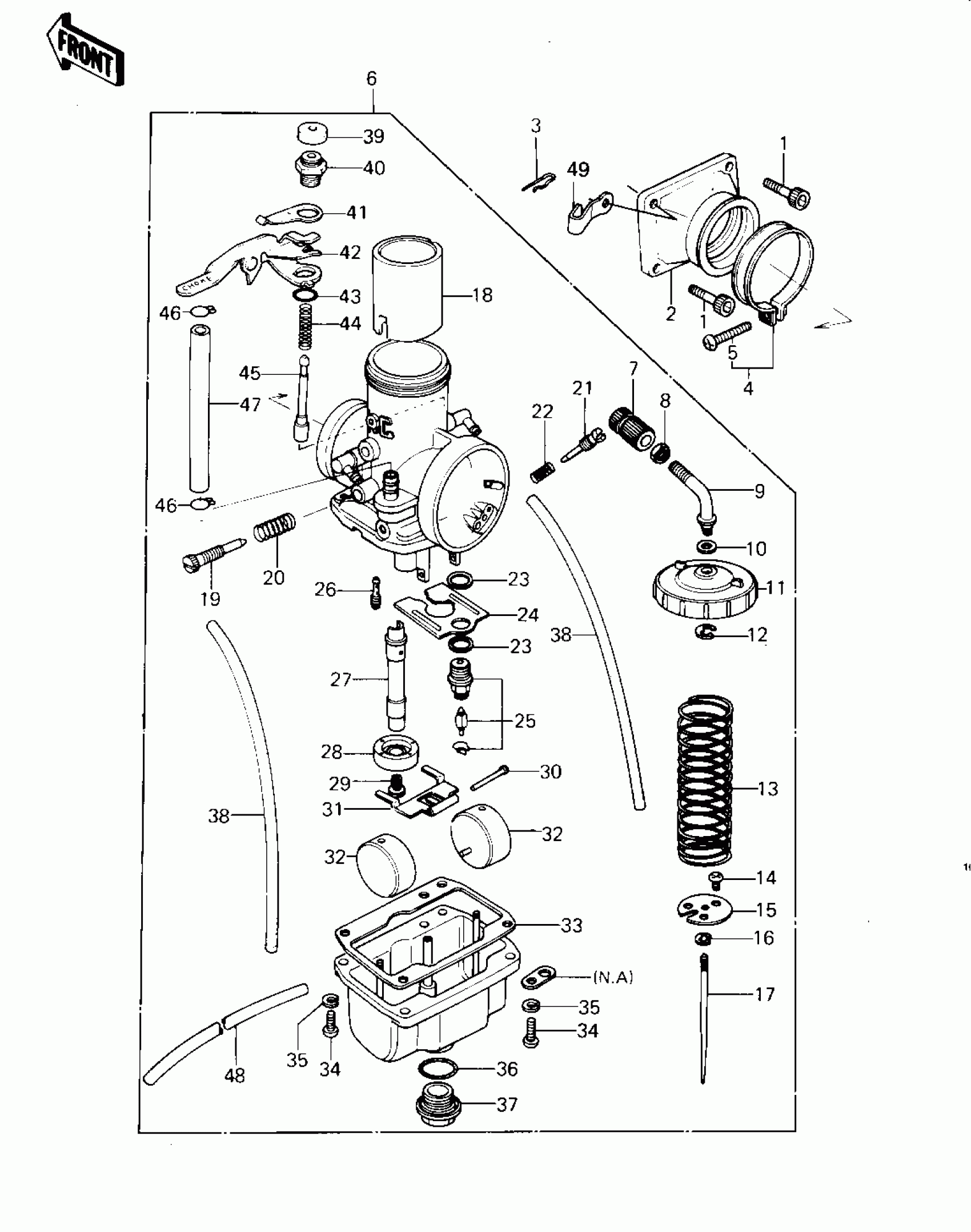

Kawasaki KDX400 CARBURETOR Diagram
#
1
BOLT-SOCKET,6X25,BLACK
120S0625
$2.57
2
HOLDER,CARBURETOR
16065-1005
Unavailable
3
RING-SNAP
92036-018
$3.89
4
CLAMP,CARBURETOR HLDR
92037-116
$14.66
5
SCREW-PAN-CROS
220B0535
$3.70
6
CARBURETOR ASSY
16001-1116
Unavailable
7
ADJUSTER,CABLE
16002-1003
$12.77
8
NUT,CABLE ADJUST LOCK
16003-004
$7.34
9
GUIDE,CABLE
13070-1014
Unavailable
10
GASKET,CABLE GUIDE
11009-1074
Unavailable
11
TOP,MIXING CHAMBER
16004-1010
$36.19
12
CLAMP,CABLE GUIDE
16008-011
Unavailable
13
SPRING,THROTTLE VALVE
16006-028
$11.14
14
SCREW,4X5
92009-1037
$3.56
15
SEAT,THROTTLE VALVE
16007-1007
Unavailable
16
CLAMP,E-TYPE
16008-010
$9.21
17
JET NEEDLE,6DH18
16009-1041
$27.22
18
VALVE,THROTTLE,C.A2.5
16025-1034
$62.76
19
SCREW,THROTTLE STOP
16021-1024
Unavailable
20
SPRING,THRTL STP SCRW
92081-1200
$9.28
21
SCREW
16014-006
$17.15
22
SPRING,PILOT AIR SCREW
16022-007
$8.13
23
GASKET,FLOAT VALVE
11009-1076
Unavailable
24
BAFFLE-CARB
16038-019
$18.24
25
FLOAT VALVE ASSY
16030-020
$82.44
26
JET-PILOT NO 45
92064-044
$19.70
27
NEEDLE JET,Q-2
16017-1026
Unavailable
28
HOLDER,NEEDLE JET
16065-1017
$37.32
29
MAIN JET,#162.5R
92063-1019
Unavailable
29
MAIN JET,#157.5R
92063-1026
Unavailable
29
MAIN JET,#160R
92063-1018
Unavailable
29
MAIN JET,#165R
92063-1020
Unavailable
29
MAIN JET,#167.5R
92063-1021
Unavailable
30
PIN,FLOAT
16032-008
$6.57
31
ARM-FLOAT
16055-009
Unavailable
32
FLOAT
16031-029
$64.25
33
GASKET,FLOAT CHAMBER
16019-028
Unavailable
34
UNAVAILABLE IN PRICE BOOK
214B0516A
Unavailable
35
WASHER SPRING 5MM
461F0500
$0.69
36
GASKET,MAIN JET COVER
16038-009
Unavailable
37
COVER-MAIN JET
16049-006
Unavailable
38
HOSE,3.5OX7.5OX410M/M
92059-1027
$28.45
39
CAP,STARTER PLUNGER
16039-015
$6.88
40
CAP-STARTER PLUNGER
16012-019
$21.09
41
SPRING PLATE,STARTER
13169-1052
Unavailable
42
LEVER,STARTER PLUNGER
13168-1048
Unavailable
43
O RING,9MM
670B1509
$3.65
44
SPRING,STARTER PLUNGER
92081-1181
$4.11
45
PLUNGER ASSY,STARTER
16016-1008
$24.34
46
CLAMP,TUBE
92037-1184
$1.45
47
TUBE,7.5X12.5X225
92059-1123
Unavailable
48
HOSE,OVERFLOW
92059-1025
$21.68
49
CLAMP CABLE
92037-016
Unavailable
