Description

Price

1

AIR FILTER

11010-4001

Unavailable

2

CASE,AIR FILTER

11011-4001

Unavailable

3

CASE

11011-4002

Unavailable

4

PLATE, NUT

13169-4007

Unavailable

5

COVER, AIRBOX

14025-4004

Unavailable

6

DUCT

14073-4001

$9.69

7

BOLT-UPSET

112G0625

$3.62

8

WASHER SPRING 6MM

461F0600

$0.69

9

SCREW-PAN-CROS,6X16

220B0616

$2.84

10

HOOK

27012-4002

$5.03

11

HOOK

27012-4005

$1.35

12

FLAP, AIR BOX SHIELD

35019-4002

$3.74

13

BOOT

49006-1012

Unavailable

14

O RING,20MM

670B2020

$1.22

15

SCREW,6X20

92009-1289

$4.31

16

WASHER,PLAIN

92022-1018

$3.61

17

COLLAR

92027-1045

$5.52

18

COLLAR

92027-194

$5.52

19

CLAMP

92037-068

$11.91

20

SCREW PAN HEAD 6X35

220B0635

$1.63

21

DAMPER RUBBER

92075-112

$4.31

22

SCREW,6X14,WHITE

92009-1287

$2.55

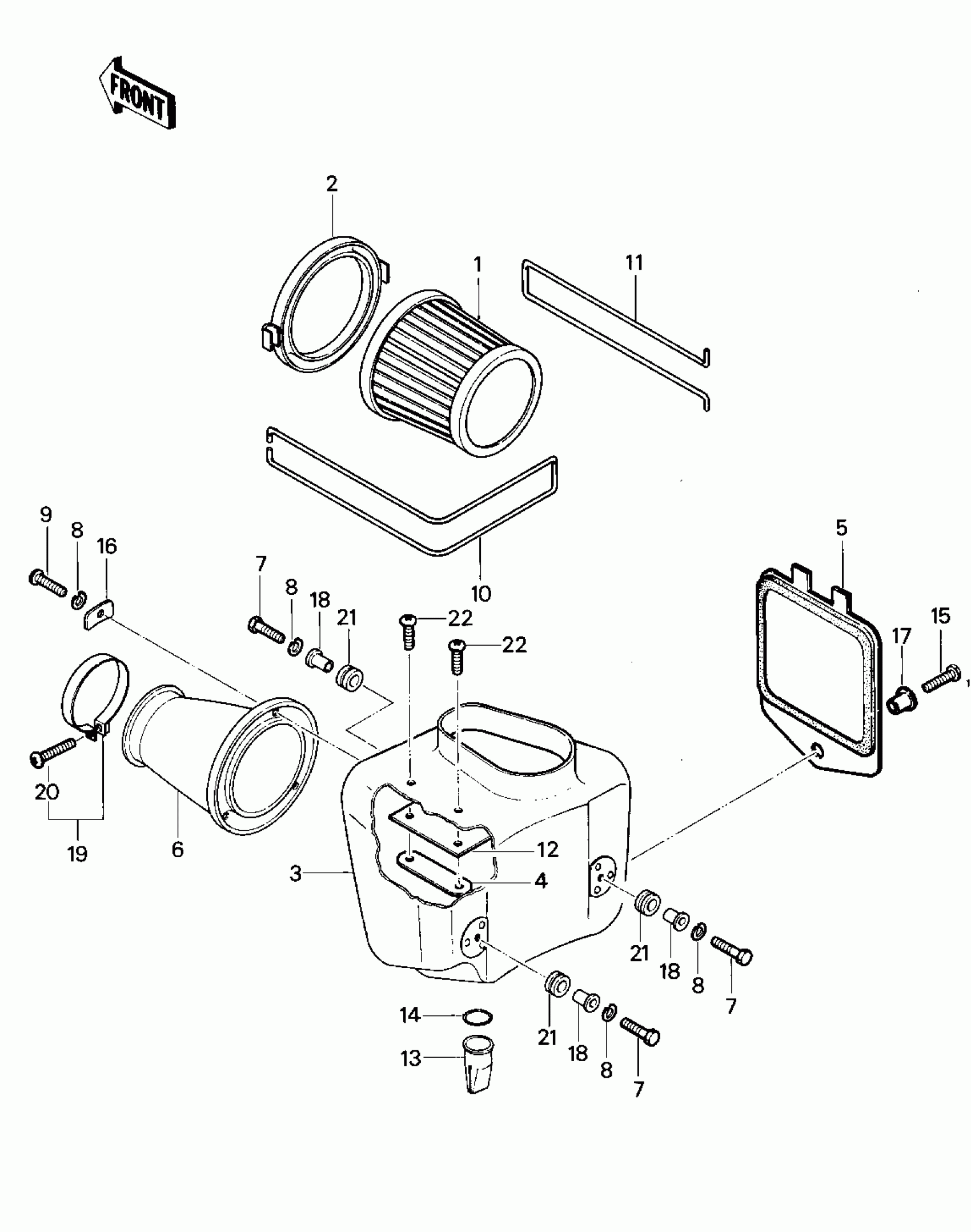

Kawasaki KDX400 AIR CLEANER Diagram

AIR FILTER

CASE,AIR FILTER

CASE

PLATE, NUT

COVER, AIRBOX

DUCT

BOLT-UPSET

WASHER SPRING 6MM

SCREW-PAN-CROS,6X16

HOOK

HOOK

FLAP, AIR BOX SHIELD

BOOT

O RING,20MM

SCREW,6X20

WASHER,PLAIN

COLLAR

COLLAR

CLAMP

SCREW PAN HEAD 6X35

DAMPER RUBBER

SCREW,6X14,WHITE
