Description

Price

11012

CAP,VALVE AIR

11012-1391

$5.73

13070

GUIDE,SPRING

13070-1161

$23.01

13070A

GUIDE,SPRING

13070-1165

$35.42

13256

PISTON,SHOCKABSORBER

13256-1054

Unavailable

43078

RESERVOIR,SHOCKABSORBER

43078-1094

$123.38

43089

CYLINDER-SHOCKABSORBER

43089-1145

$551.23

45014

SHOCKABSORBER,BLUE NO.1

45014-1498-W1

$1,187.50

46102

ROD,SHOCKABSORBER

46102-1316

$781.49

92002

BOLT,DRAIN

92002-1955

$11.16

92015

NUT,SPRING ADJUST

92015-1703

$40.51

92015A

NUT,SPRING ADJUST LOCK

92015-1704

$38.08

92033

RING-SNAP

92033-1209

$9.20

92033A

RING-SNAP,SHOCKABSORBER

92033-1228

$4.96

92049

SEAL-OIL

92049-1281

$64.84

92055

RING-O,ROD

92055-1369

$10.14

92055A

RING-O

92055-1383

$4.11

92092

BUSHING-RUBBER,SHOCKABSORBER

92092-1062

$28.82

92144

SPRING,SHOCKABSORBER,K=4.5,BLU

92144-1501-W1

$390.80

92144A

SPRING,SHOCKABOSRBER,K=4.9,BLU

92144-1503-W1

$409.57

92144B

SPRING,SHOCKABSORBER,K=4.8,BLU

92144-1618-W1

$301.22

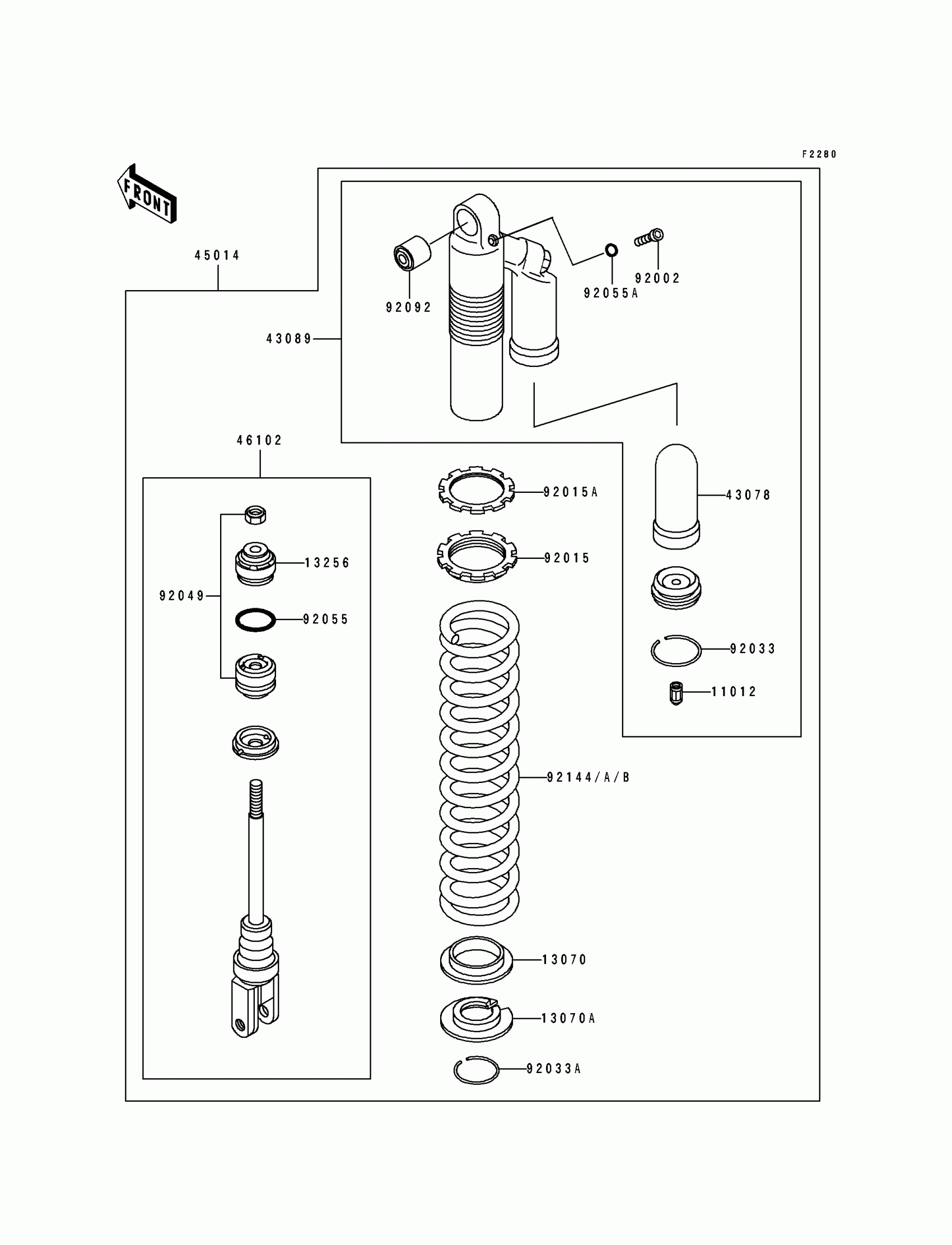

Kawasaki KDX250 Shock Absorber Diagram

CAP,VALVE AIR

GUIDE,SPRING

GUIDE,SPRING

PISTON,SHOCKABSORBER

RESERVOIR,SHOCKABSORBER

CYLINDER-SHOCKABSORBER

SHOCKABSORBER,BLUE NO.1

ROD,SHOCKABSORBER

BOLT,DRAIN

NUT,SPRING ADJUST

NUT,SPRING ADJUST LOCK

RING-SNAP

RING-SNAP,SHOCKABSORBER

SEAL-OIL

RING-O,ROD

RING-O

BUSHING-RUBBER,SHOCKABSORBER

SPRING,SHOCKABSORBER,K=4.5,BLU

SPRING,SHOCKABOSRBER,K=4.9,BLU

SPRING,SHOCKABSORBER,K=4.8,BLU
