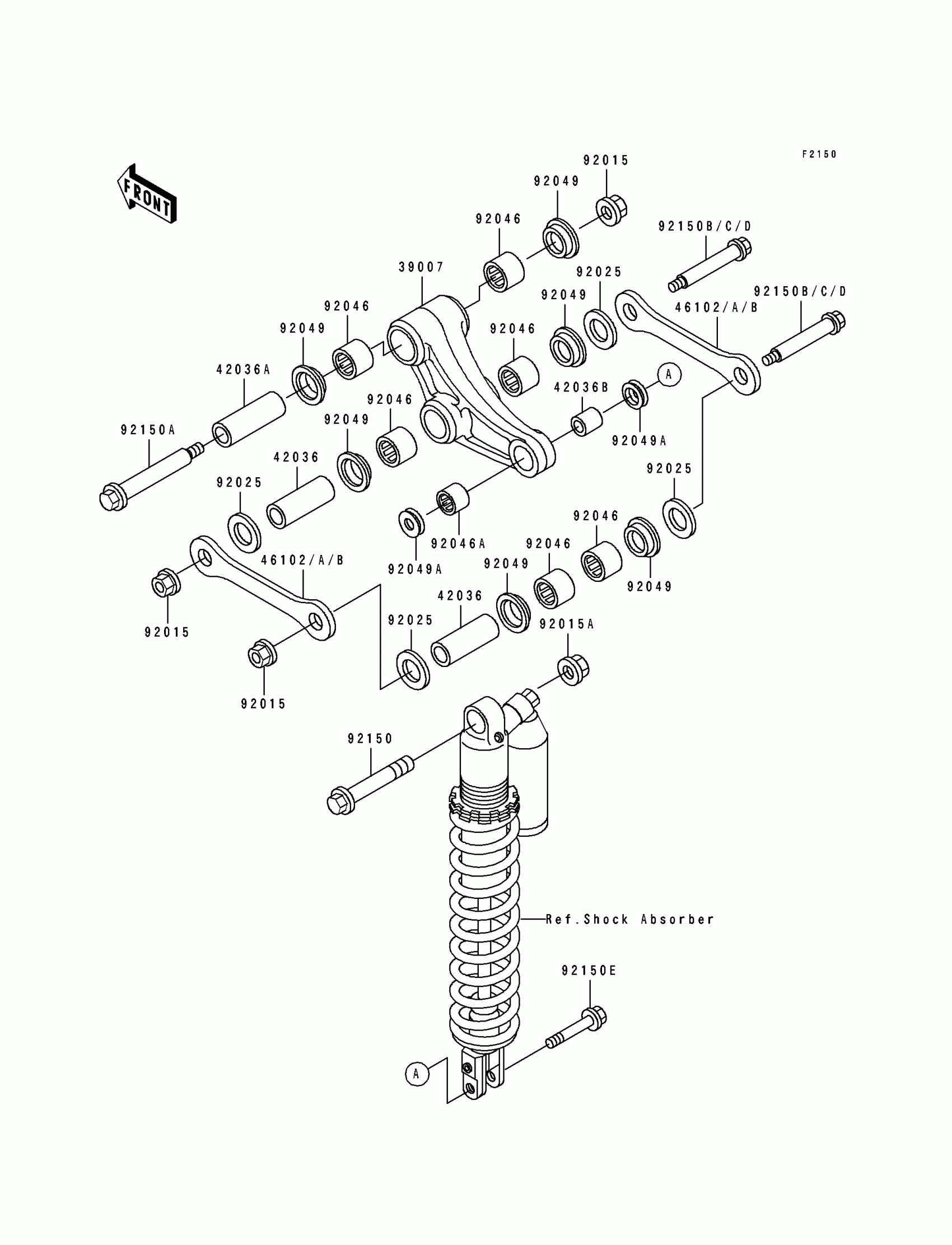

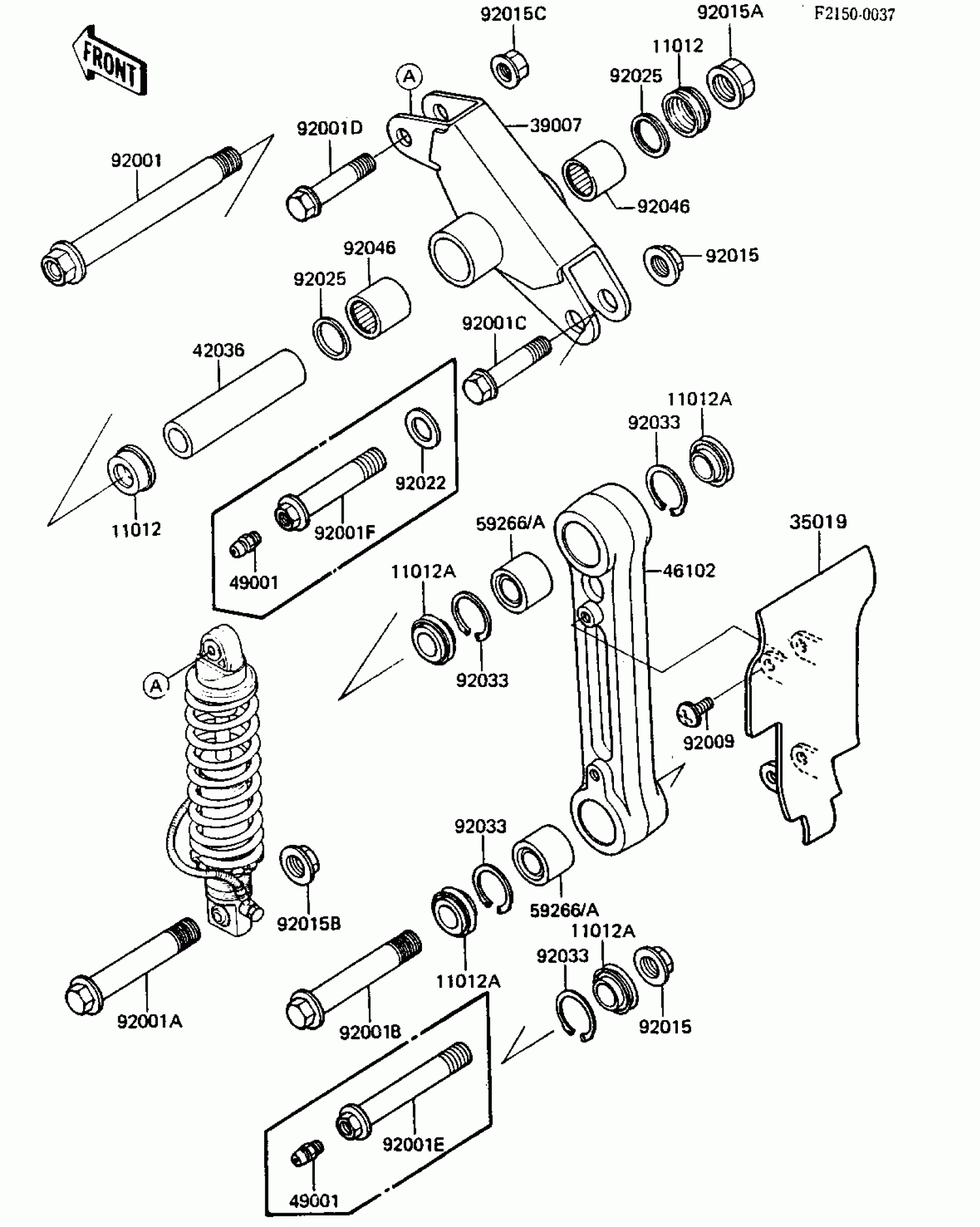

Kawasaki KDX250 Rear Suspension Diagram

Description

Price

39007

ARM-SUSP,UNI TRAK

39007-1208

Unavailable

42036

SLEEVE,15X22X57

42036-1245

$21.29

42036A

SLEEVE,15X22X63

42036-1246

$26.04

42036B

SLEEVE,10X16X19

42036-1248

$9.91

46102A

ROD,SUSPENSION,T=10

46102-1328

$45.16

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92015A

NUT,FLANGED,10MM

92015-1502

$10.28

92025

SHIM,15.3X27.5X0.6

92025-1135

$4.38

92046

BEARING-NEEDLE,F-2220

92046-1162

$21.24

92046A

BEARING-NEEDLE,16BM2212

92046-1192

$18.21

92049

SEAL-OIL,MHA22 28 5.7F

92049-1254

$9.28

92049A

SEAL-OIL

92049-1330

$12.29

92150

BOLT,FLANGED,10X50

92150-1125

$7.34

92150A

BOLT,ARM,12MM

92150-1195

$25.52

92150C

BOLT,ROD,12X93

92150-1337

$29.71

92150E

BOLT,FLANGED,10X40

92150-1711

$12.35
