1994 Kawasaki KDX250 Rear Master Cylinder Diagram

← All diagrams

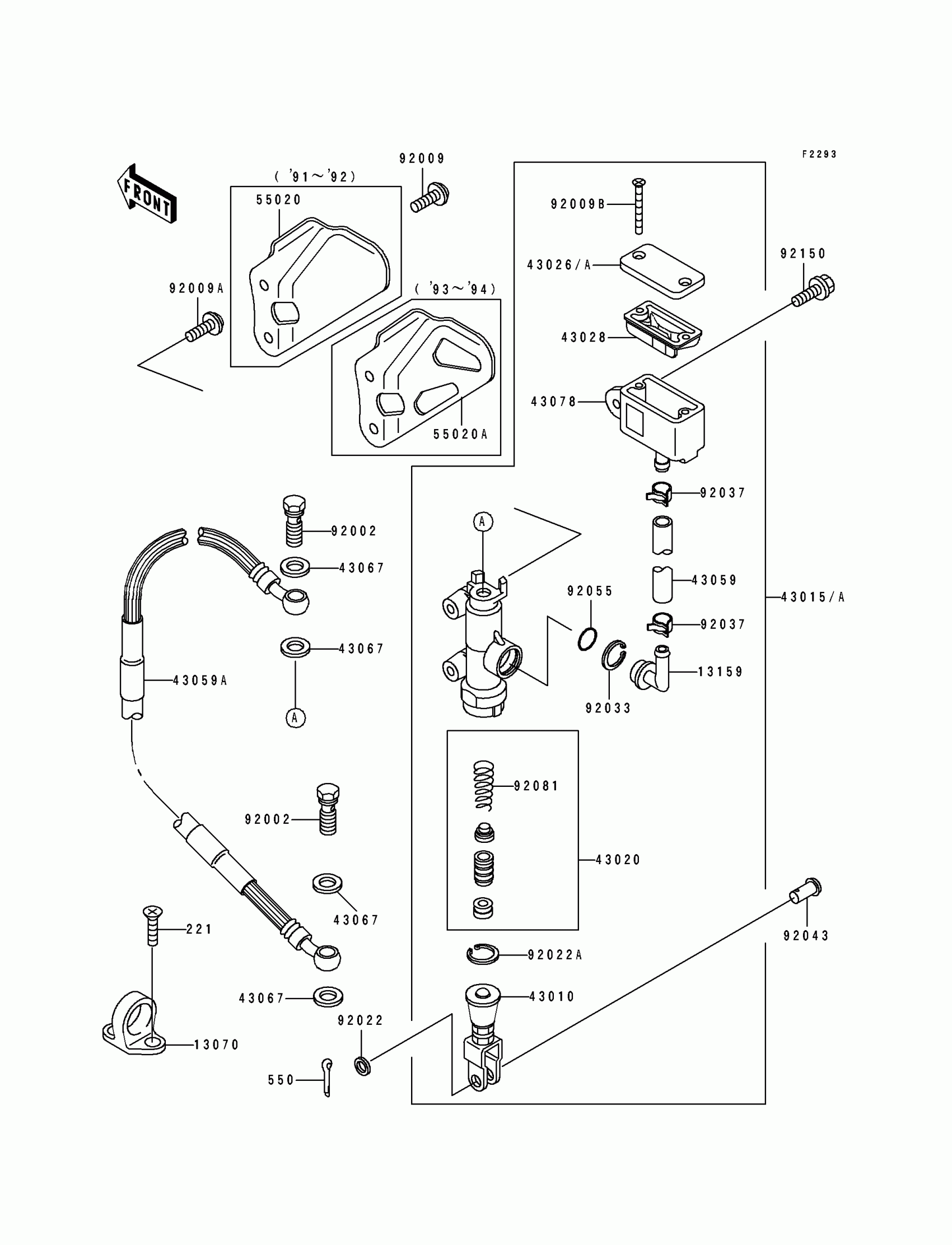

Find the part on the Rear Master Cylinder diagram for your 1994 Kawasaki KDX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1994 Kawasaki KDX250 Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13070

GUIDE,HOSE

13070-1144

1
Out of stock

13159

CONNECTOR

13159-1056

1
Out of stock

43010

ROD-ASSY-BRAKE

43010-1068

1
Out of stock

43015A

CYLINDER-ASSY-MASTER,RR

43015-1469

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1057

1
Out of stock

43026A

CAP-BRAKE

43026-1075

1
Out of stock

43028

DIAPHRAGM

43028-1067

1
Out of stock

43059

HOSE-BRAKE

43059-1561

1
Out of stock

43059A

HOSE-BRAKE,RR

43059-1570

1
Out of stock

43067

WASHER,10.5X15X1.5

43067-001

1
Out of stock

43078

RESERVOIR

43078-1122

1
Out of stock

55020A

GUARD,RR MASTER CYLINDER

55020-1442

1
Out of stock

92002

BOLT,OIL,L=23

92002-1888

1
Out of stock

92009

SCREW,6X10,WHITE

92009-1286

1
Out of stock

92009A

SCREW,6X14,WHITE

92009-1287

1
Out of stock

92009B

SCREW,4X40

92009-1596

1
Out of stock

92022

WASHER,8.5X13X1

92022-1028

1
Out of stock

92022A

WASHER,CIRCRIP

92022-1601

1
Out of stock

92033

RING-SNAP,20.5MM

92033-1186

1
Out of stock

92037

CLAMP

92037-1710

1
Out of stock

92043

PIN

92043-1039

1
Out of stock

92055

RING-O,MASTER CYLINDER

92055-1251

1
Out of stock

92081

SPRING,MASTER CYLINDER

92081-1737

1
Out of stock

92150

BOLT,FLANGED,6X25

92150-1507

1
Out of stock

221

SCREW-CSK-CROS,6X10

221B0610

1
Out of stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock
