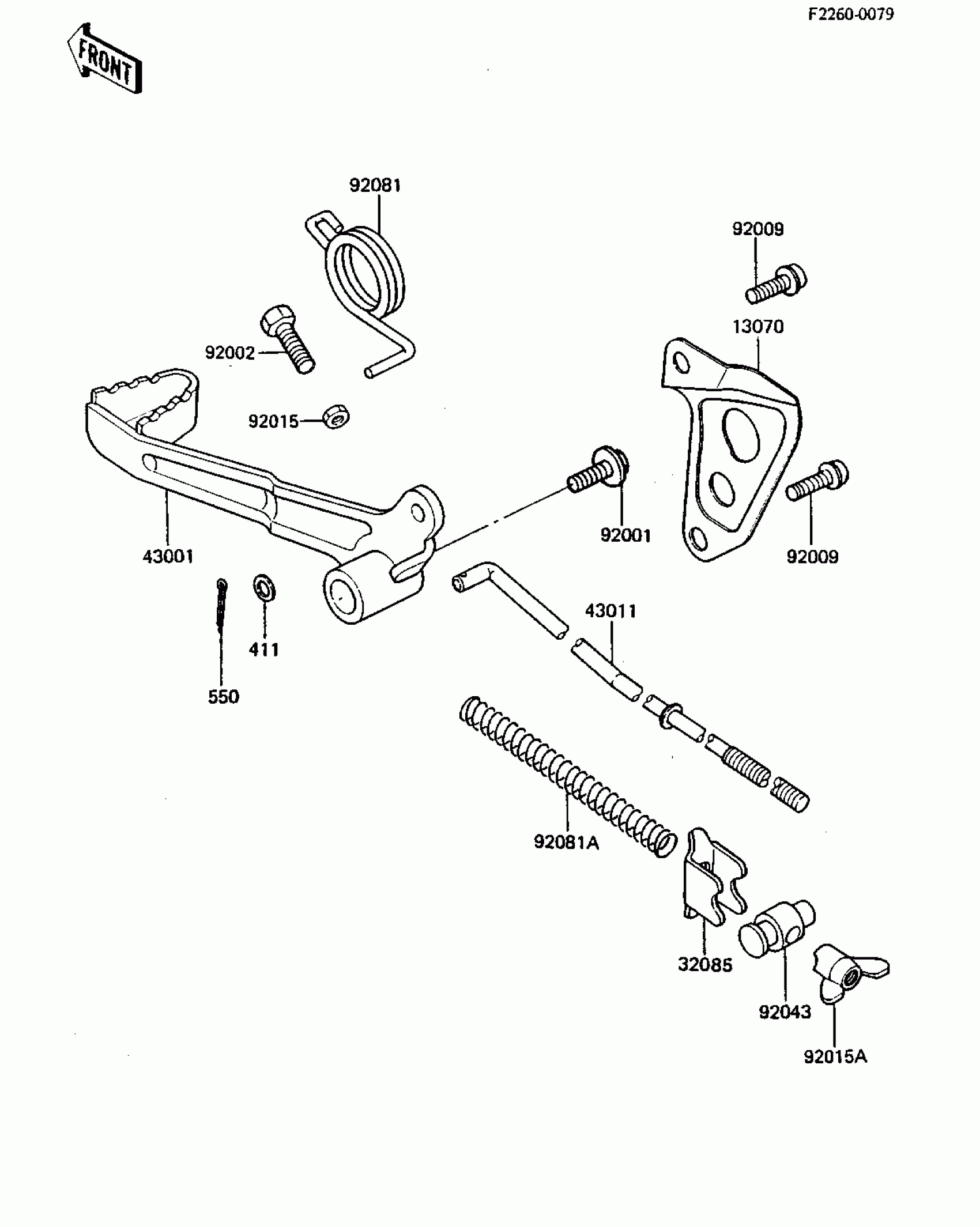

Kawasaki KDX250 BRAKE PEDAL Diagram

Description

Price

13070

GUIDE,BRAKE ROD

13070-1055

Unavailable

32085

STOPPER,BRAKE ROD

32085-1115

$9.14

43001

LEVER-BRAKE

43001-1075

$69.47

43011

ROD-BRAKE

43011-1056

Unavailable

92001

BOLT,FLANGED,6X10

92001-1034

$10.28

92002

BOLT,6X20

92002-1373

$4.38

92009

SCREW,6X10,WHITE

92009-1286

$4.31

92015

NUT,6MM

92015-1391

$2.49

92015A

NUT,WING,6MM

92015-4004

$7.29

92043

PIN,BRAKE ROD

92043-1139

Unavailable

92081

SPRING

92081-1418

Unavailable

92081A

SPRING,BRAKE ROD

92081-1688

$4.65

411

WASHER PLAIN 6MM

411B0600

Unavailable

550

PIN COTTER 2.0X15

550D2015

Unavailable
