Description

Price

11009

GASKET,DRAIN BOLT

11009-1152

$7.55

14037

SCREEN,L.GREEN

14037-1099-6W

$27.83

39061

RADIATOR-ASSY,LH

39061-1127

$553.84

39061A

RADIATOR-ASSY,RH

39061-1172

$553.84

39062

HOSE-COOLING,RADIATOR,LH-RH

39062-1302

Unavailable

39062A

HOSE-COOLING,5X9X700

39062-1423

$29.34

39062B

HOSE-COOLING,HEAD-RADIATOR,LH

39062-1435

$27.80

39062C

HOSE-COOLING,RADIATOR,RH-PUMP

39062-1471

$27.80

49085

CAP-ASSY-PRESSURE

49085-1003

$37.42

49085A

CAP-ASSY-PRESSURE,P=1.6

49085-1059

$52.95

49089G

SHROUD-ENGINE,LH,L.GREEN

49089-5197-6W

$107.84

49089H

SHROUD-ENGINE,RH,L.GREEN

49089-5198-6W

$107.72

92002

BOLT,RADIATOR DRAIN

92002-1682

$20.51

92015

NUT

92015-1487

$4.80

92027

COLLAR

92027-194

$5.52

92037

CLAMP,COOLING HOSE

92037-1589

$18.57

92075

DAMPER RUBBER,RR FENR

92075-209

$4.69

92150

BOLT,FLANGED,6X14,WASHER

92150-1392

$4.80

92150A

BOLT,6X12

92150-1435

$4.31

92150B

BOLT,FLANGED,6X25

92150-1507

$4.80

132

BOLT-FLANGED-SMALL

132G0620

$2.33

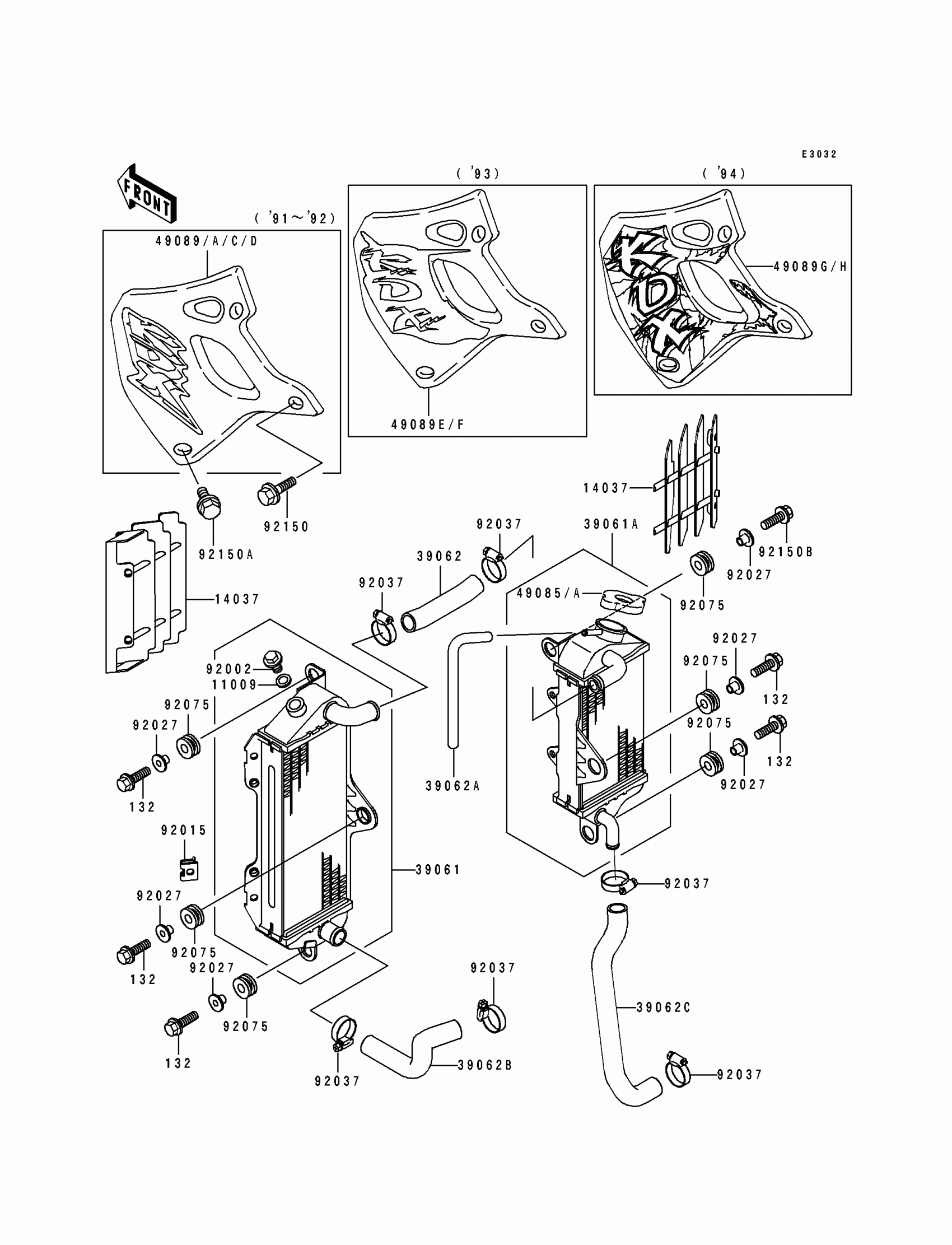

Kawasaki KDX250 Radiator Diagram

GASKET,DRAIN BOLT

SCREEN,L.GREEN

RADIATOR-ASSY,LH

RADIATOR-ASSY,RH

HOSE-COOLING,RADIATOR,LH-RH

HOSE-COOLING,5X9X700

HOSE-COOLING,HEAD-RADIATOR,LH

HOSE-COOLING,RADIATOR,RH-PUMP

CAP-ASSY-PRESSURE

CAP-ASSY-PRESSURE,P=1.6

SHROUD-ENGINE,LH,L.GREEN

SHROUD-ENGINE,RH,L.GREEN

BOLT,RADIATOR DRAIN

NUT

COLLAR

CLAMP,COOLING HOSE

DAMPER RUBBER,RR FENR

BOLT,FLANGED,6X14,WASHER

BOLT,6X12

BOLT,FLANGED,6X25

BOLT-FLANGED-SMALL
