1980 Kawasaki KDX250 Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1980 Kawasaki KDX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

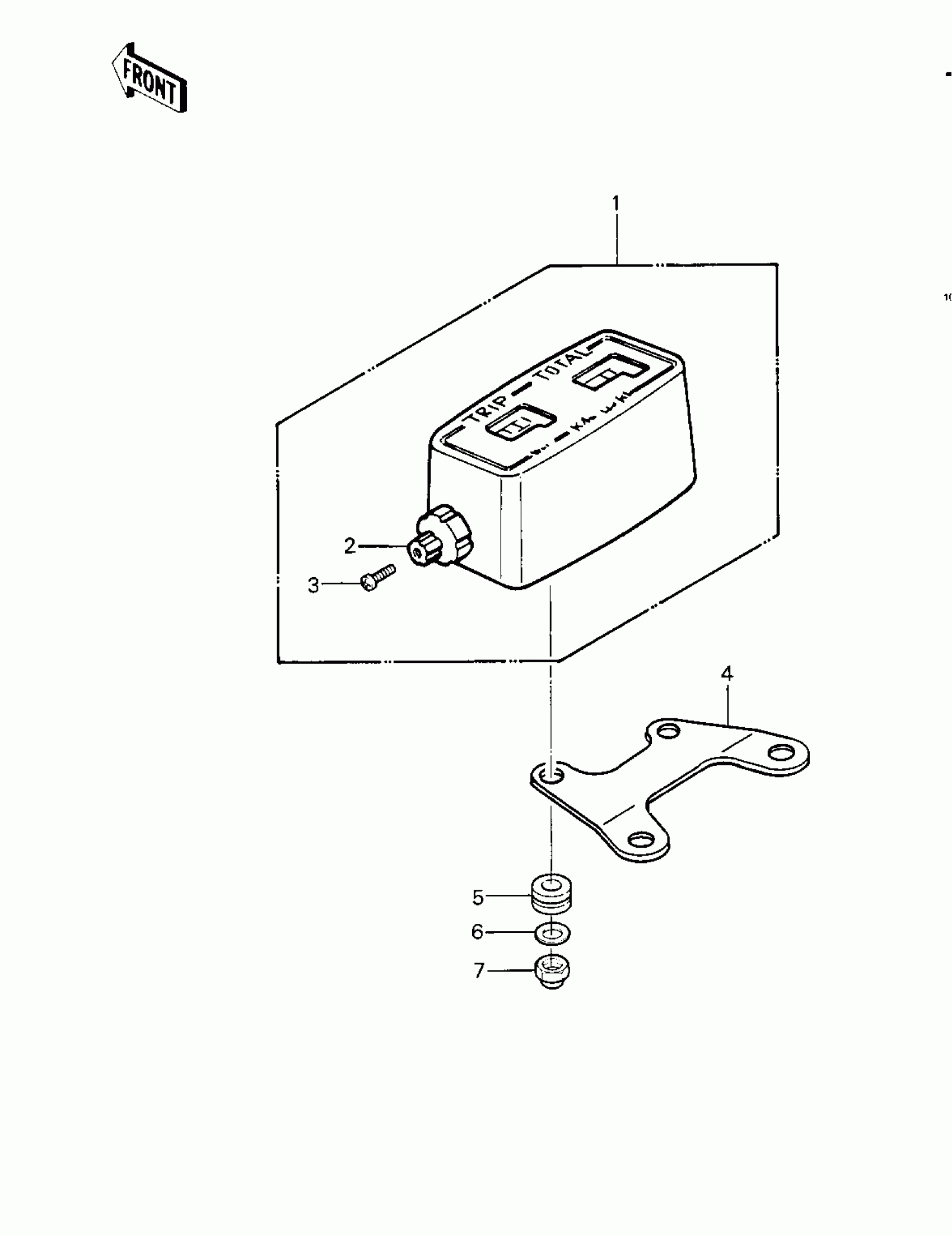

1980 Kawasaki KDX250 Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ODOMETER,MILE

25005-1061

1

$239.90

In stock

1

25005-1061 (Canada)

25005-1062

1
Out of stock

2

KNOB,METER TRIP

92077-1013

1
Out of stock

3

SCREW,2X6

92009-1159

1
Out of stock

4

BRACKET,SPEEDOMETER

11034-4019

1
Out of stock

5

DAMPER,METER

92075-1209

1
Out of stock

6

WASHER,5.2X16X1.2

25009-004

1

$3.03

In stock

7

NUT-CAP

322C0500

1
Out of stock
