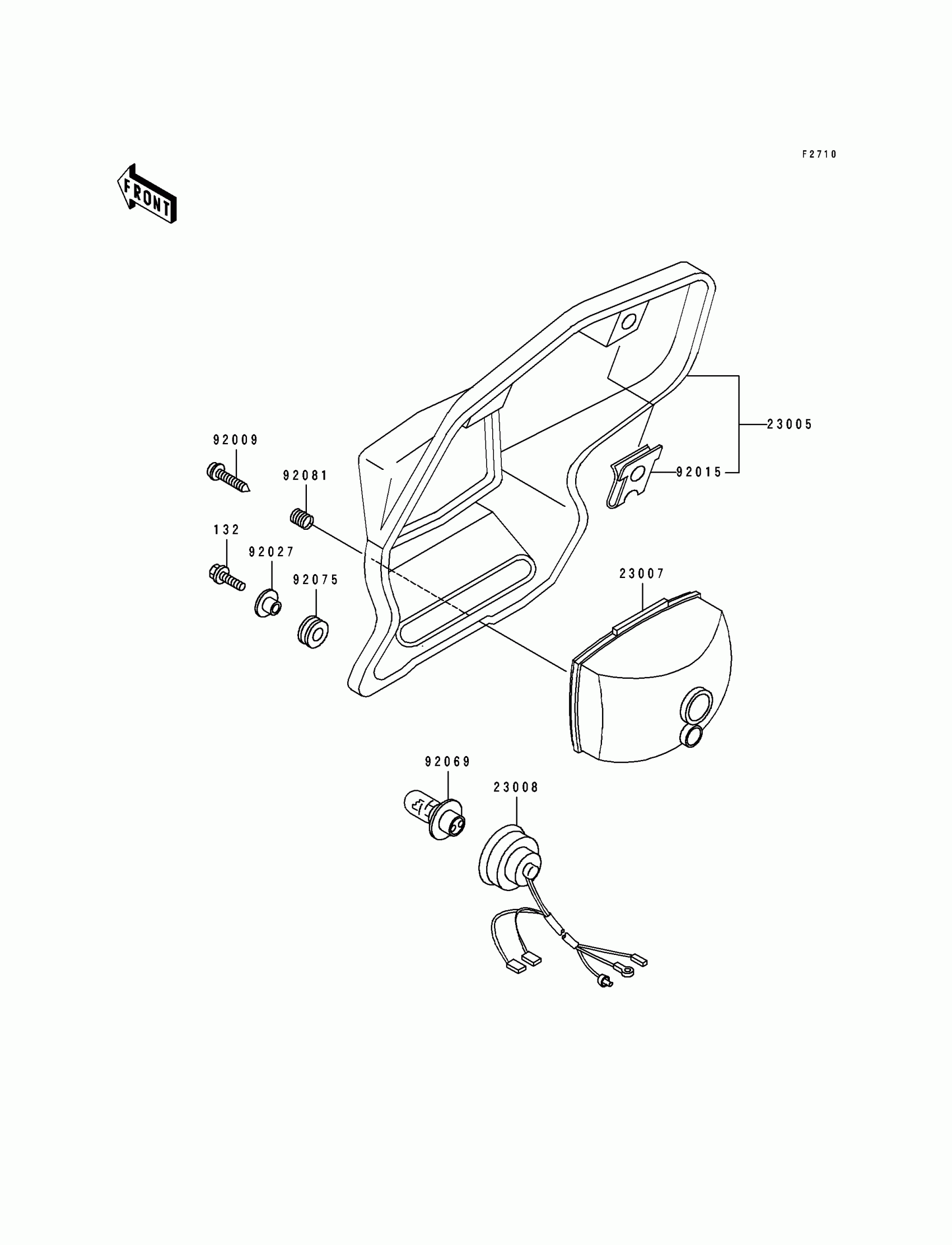

Kawasaki KDX250 HEADLIGHT Diagram

#

Description
Price

1

COVER,HEAD LAMP

14025-4002

Unavailable

2

LAMP,HEAD

23004-4001

Unavailable

3

BODY-COMP-HEAD LAMP,

23005-5002-7F

Unavailable

4

SOCKET,HEAD LAMP

23008-4001

Unavailable

5

NUT,4MM,FOCUS ADJUST

23020-018

$4.65

6

NUT,5MM

23020-023

Unavailable

7

WASHER,4.1X8X0.8

23021-004

$2.91

8

WASHER,PLAIN,5MM

23021-012

$5.43

9

SWITCH,HEAD LAMP

27004-4001

Unavailable

10

SCREW,ADJUSTING,4X43

92009-4002

Unavailable

11

SCREW,HEAD LAMP

92009-4003

Unavailable

12

WASHER,HEAD LAMP

92022-4005

Unavailable

13

CLAMP,HEAD LAMP

92037-4001

$8.92

14

BULB,6V 35/25W

92069-4001

Unavailable

15

DAMPER,HEAD LAMP

92075-4009

Unavailable

16

DAMPER,HEAD LAMP

92075-4010

Unavailable

17

SPRING,FOCUS ADJUSTN

92081-4003

Unavailable

18

SEAL,HEAD LAMP

92093-4001

Unavailable

19

BRACKET

11034-4007

Unavailable

20

BRACKET

11034-4008

Unavailable

21

SCREW-PAN-CROS,6X16

220B0616

$2.84

22

WASHER SPRING 6MM

461F0600

$0.69

23

BAND,FUEL TANK

92072-076

Unavailable

24

BAND,HEAD LAMP

92072-077

Unavailable

25

DAMPER

92075-4005

Unavailable

26

HEAD LAMP ASSY

23001-4001

Unavailable
