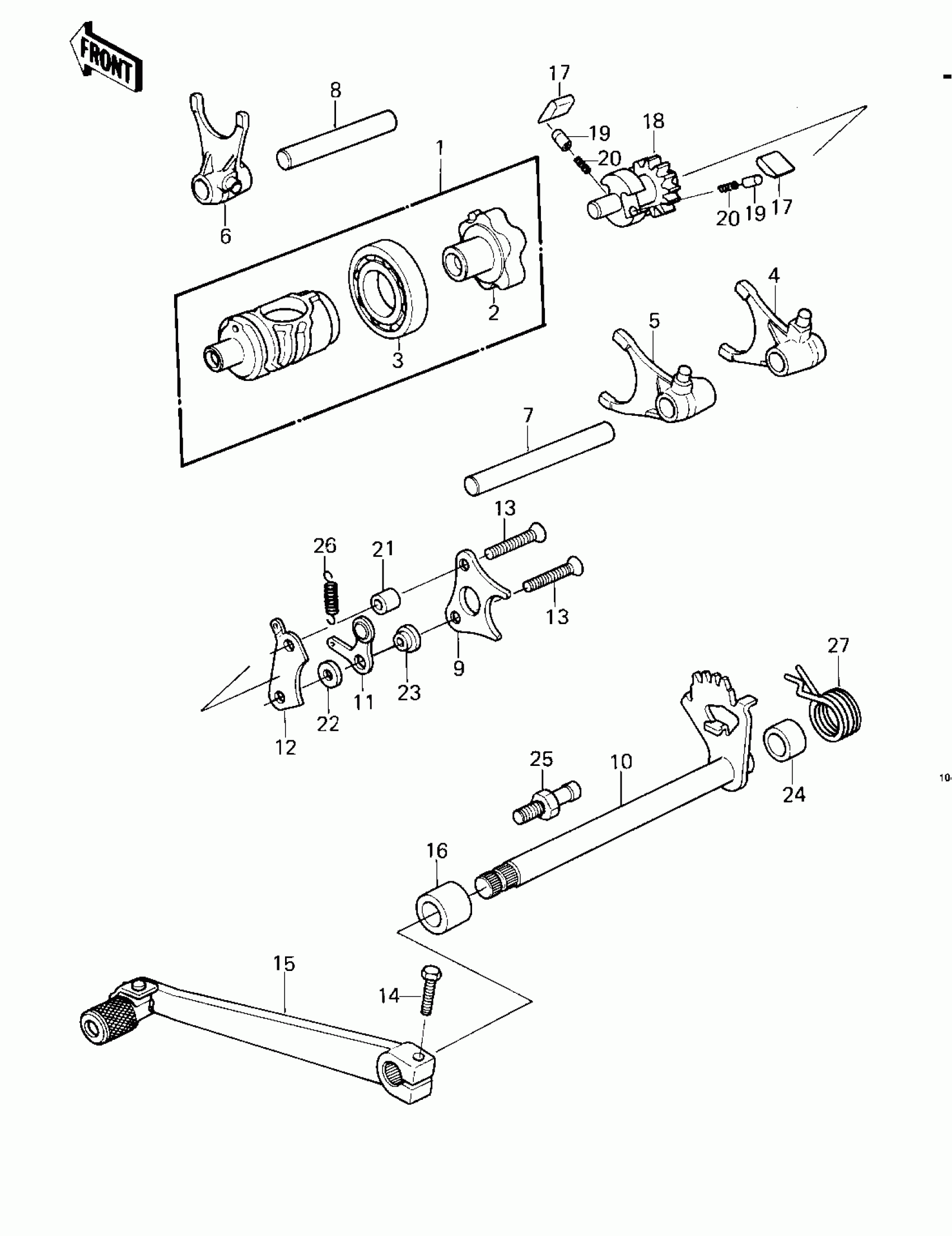

Kawasaki KDX250 GEAR CHANGE MECHANISM Diagram
#
Description
Price
1
DRUM ASSY,GEAR CHANGE
13239-1028
Unavailable
2
HOLDER,GEAR CHANGE
13091-1069
Unavailable
3
BEARING-BALL,16005Z
92045-1030
Unavailable
4
SHIFT FORK,LOW
13140-1031
Unavailable
5
SHIFT FORK,2ND&3RD
13140-1032
Unavailable
6
SHIFT FORK,4TH&TOP
13140-1033
Unavailable
9
GUIDE,RATCHET
13070-1049
Unavailable
10
LEVER ASSY,GEAR CHNGE
13161-1016
Unavailable
11
LEVER,CHANGE DRUM
13236-1021
Unavailable
12
PLATE,POSITIONING
14014-1013
Unavailable
15
PEDAL ASSY,GEAR CHANG
13242-1032
Unavailable
16
COLLAR,13.5X22X18
92027-1274
Unavailable
17
PAWL,RATCHET
13165-1026
Unavailable
18
RATCHET,CHANGE DRUM
13216-1020
Unavailable
22
COLLAR,RATCHET GUIDE
92027-1235
Unavailable
23
COLLAR
92027-1248
Unavailable
24
COLLAR
92027-189
Unavailable
25
PIN,CHANGE PEDAL
92043-1055
Unavailable
26
SPRING-COIL
92081-091
Unavailable
