1994 Kawasaki KDX250 Front Fork/ Diagram

← All diagrams

Find the part on the Front Fork/ diagram for your 1994 Kawasaki KDX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

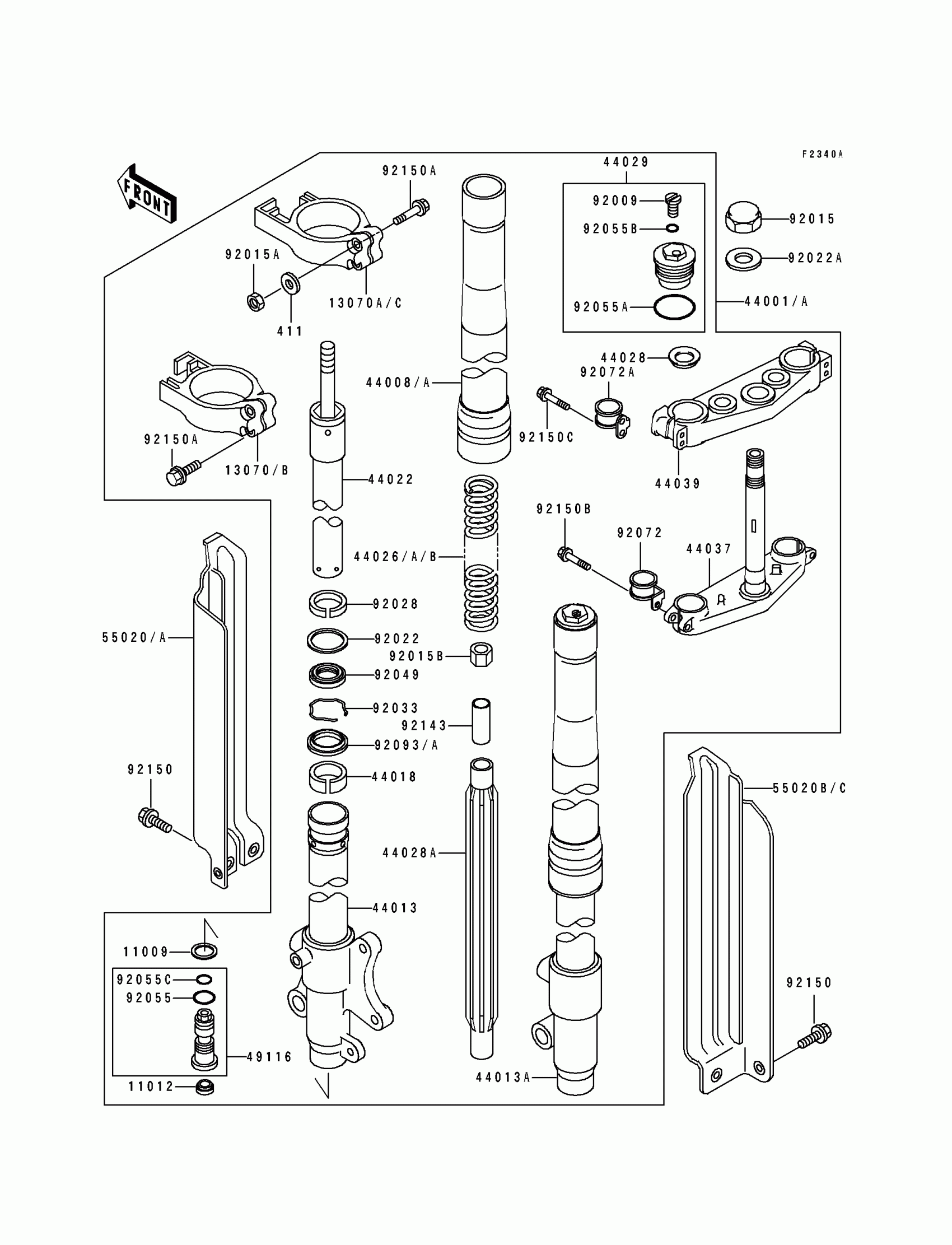

1994 Kawasaki KDX250 Front Fork/ Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,FORK CYLINDER BOLT

11009-1592

1
Out of stock

11012

CAP,FORK CYLINDER

11012-1381

1
Out of stock

13070B

GUIDE,FORK,LH

13070-1263

1
Out of stock

13070C

GUIDE,FORK,RH

13070-1264

1
Out of stock

44001A

FORK-FRONT,BLUE

44001-1838-KW

1
Out of stock

44008A

PIPE-FORK OUTER,BLUE

44008-1015-KW

1
Out of stock

44013

PIPE-FORK INNER,LH

44013-1350

1
Out of stock

44013A

PIPE-FORK INNER,RH

44013-1351

1
Out of stock

44018

PISTON-FORK,INNER PIPE

44018-1056

1
Out of stock

44022

CYLINDER-FORK

44022-1268

1
Out of stock

44026

SPRING-FRONT FORK,K=0.35

44026-1496

1
Out of stock

44026A

SPRING-FRONT FORK,K=0.34

44026-1502

1
Out of stock

44026B

SPRING-FRONT FORK,K=0.36

44026-1503

1
Out of stock

44028

GUIDE-FORK SPRING

44028-1081

1
Out of stock

44028A

GUIDE-FORK SPRING

44028-1084

1
Out of stock

44029

SEAT-FORK SPRING

44029-1149

1
Out of stock

44037

HOLDER-FORK UNDER

44037-1290

1
Out of stock

44039

HOLDER-FORK UPPER

44039-1218

1
Out of stock

49116

VALVE-ASSY,FORK

49116-1096

1
Out of stock

55020A

GUARD,FORK,LH,WHITE

55020-1363-RZ

1
Out of stock

55020C

GUARD,FORK,RH,WHITE

55020-1423-RZ

1
Out of stock

92009

SCREW

92009-1568

1
Out of stock

92015

NUT,STEERING STEM,22MM

92015-1653

1
Out of stock

92015B

NUT

92015-1827

1
Out of stock

92022

WASHER

92022-1299

1
Out of stock

92022A

WASHER,STEERING STEM

92022-1873

1
Out of stock

92028

BUSHING

92028-1581

1
Out of stock

92033

RING-SNAP

92033-1077

1
Out of stock

92049

SEAL-OIL

92049-1373

1
Out of stock

92055

RING-O

92055-1156

1
Out of stock

92055A

RING-O,FORK,AIR TUBE

92055-1333

1
Out of stock

92055B

RING-O,2.8X6.6X1.9

92055-1441

1
Out of stock

92055C

RING-O,FORK VALVE

92055-1502

1
Out of stock

92072

BAND

92072-1267

1
Out of stock

92072A

BAND

92072-1268

1
Out of stock

92093A

SEAL,FORK OUTER TUBE

92093-1342

1
Out of stock

92143

COLLAR,FORK

92143-1516

1
Out of stock

92150

BOLT,6X14

92150-1340

1
Out of stock

92150A

BOLT,FLANGED,5X40

92150-1434

1
Out of stock

92150B

BOLT,FLANGED,8X40

92150-1446

1
Out of stock

92150C

BOLT,FLANGED,8X40

92150-1516

1
Out of stock
