1980 Kawasaki KDX250 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 1980 Kawasaki KDX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

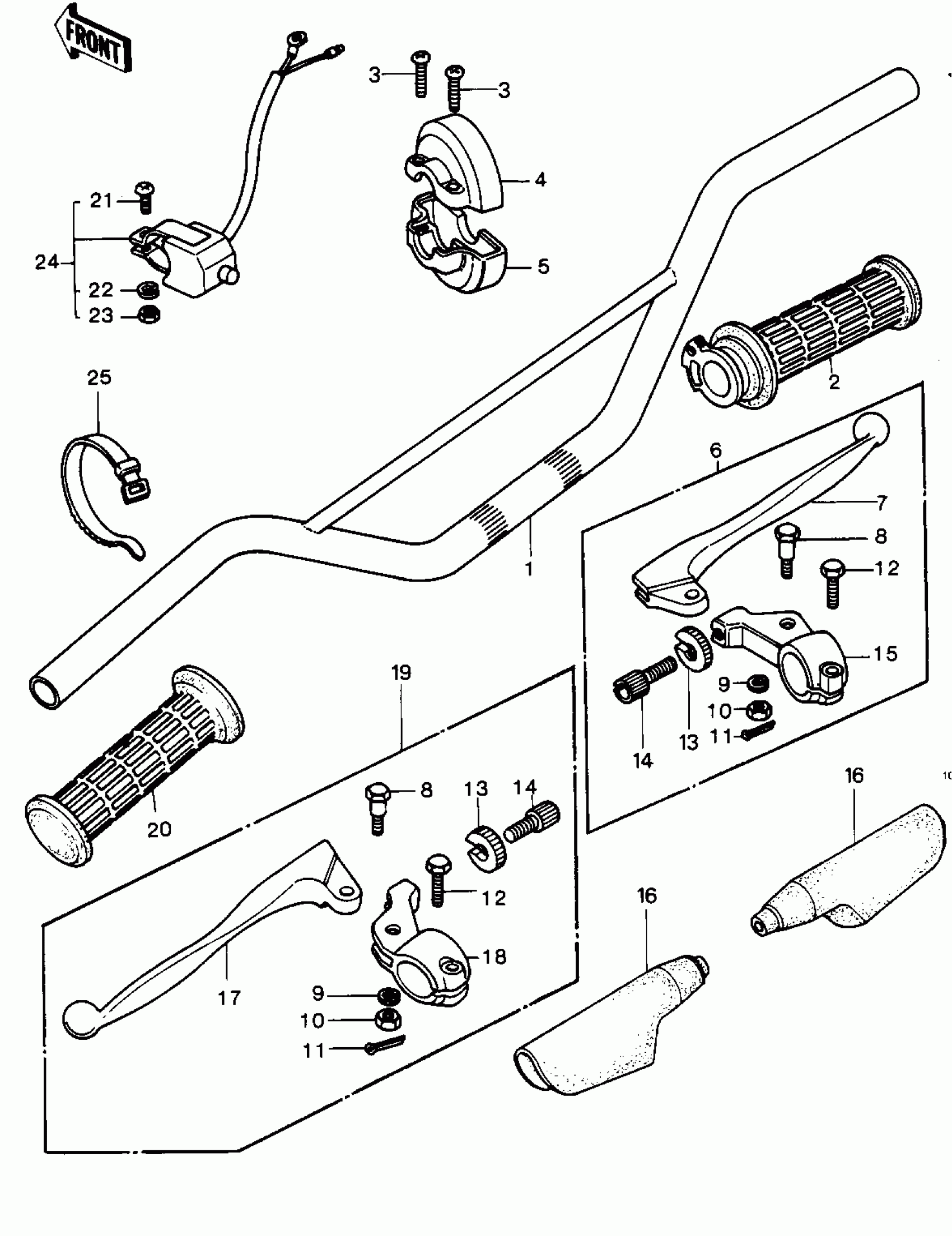

1980 Kawasaki KDX250 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

46003-4001

1
Out of stock

2

GRIP-ASSY

46019-1012

1
Out of stock

3

SCREW-PAN-CROS

220B0520

1

$0.71

In stock

4

CASE,R.H,GRIP,UPPER

32099-1014

1
Out of stock

4

CASE,R.H,GRIP,UPPER

32099-1014

1
Out of stock

5

HOUSING CONTROL,R.H.

32099-1011

1
Out of stock

6

LEVER ASSY,FRONT BRA

46076-1003

1
Out of stock

7

FRONT BRAKE LEVER

46058-018

1

$58.85

In stock

8

BOLT,HEX HEAD,6MM

92001-140

1
Out of stock

9

WASHER SPRING 6MM

461F0600

1
Out of stock

10

NUT,LOCK,6MM

92019-008

1

$3.36

In stock

11

1

$2.08

In stock

12

BOLT-UPSET

112N0620

1
Out of stock

13

NUT,CABLE ADJUST

46056-006

1

$8.71

In stock

14

1

$14.99

In stock

15

HOLDER,F.BRAKE LEVER

46060-010-21

1

$69.80

In stock

16

DUST COVER

46071-003

1
Out of stock

17

LEVER, CLUTCH

46092-021

1
Out of stock

18

HOLDER,CLUTCH LEVER

46094-014-21

1

$61.97

In stock

19

LEVER ASSY,CLUTCH

46076-1004

1
Out of stock

20

GRIP

46075-1015

1
Out of stock

21

SCREW PAN HEAD 3X14

220E0314A

1
Out of stock

22

WASHER SPRING 3MM

461F0300

1
Out of stock

23

NUT-HEX

311B0300

1

$0.46

In stock

24

SWITCH,ASSY,ENG STOP

27010-1018

1
Out of stock

25

BAND

92072-3505

1
Out of stock
