1982 Kawasaki KDX250 Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 1982 Kawasaki KDX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

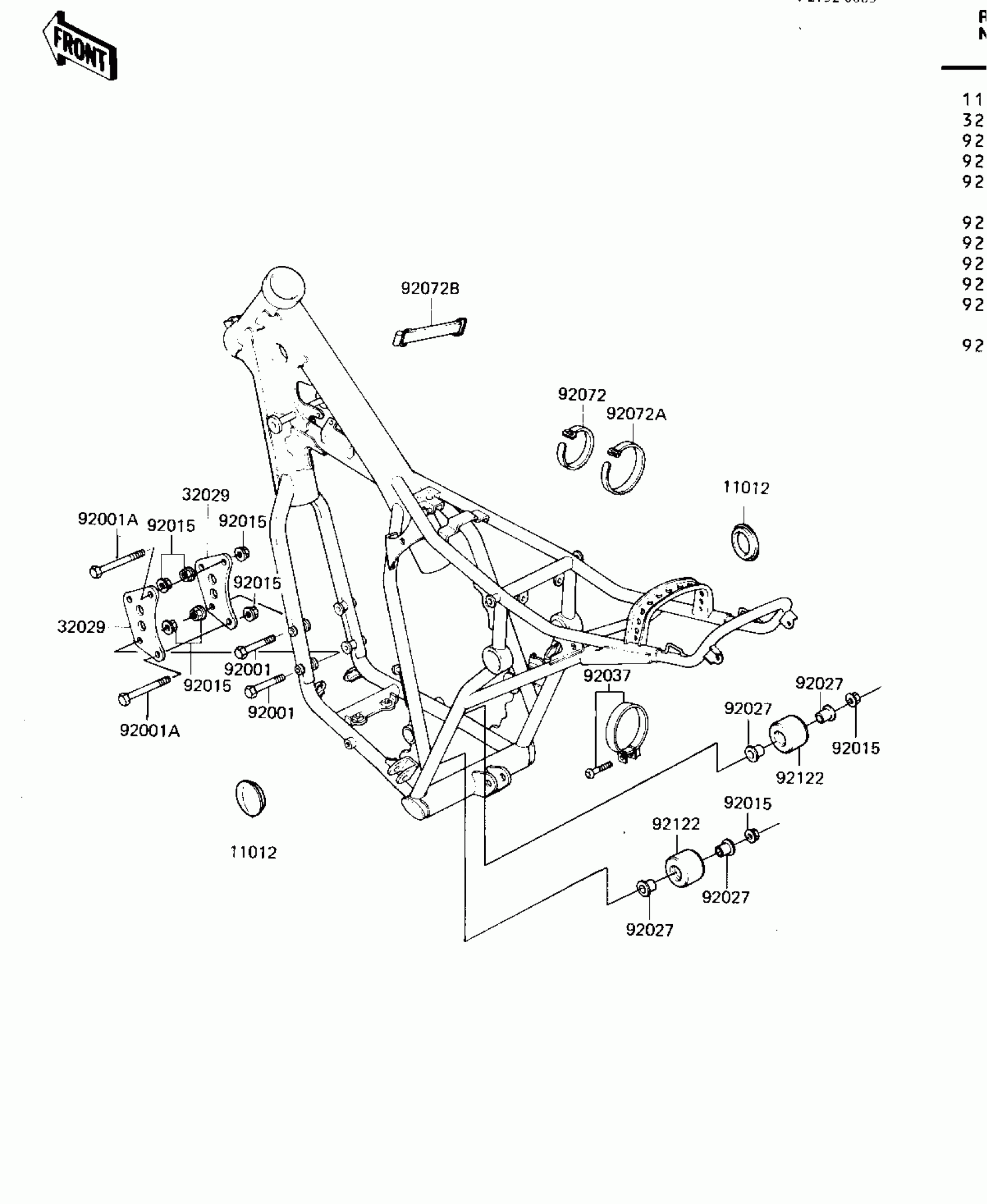

1982 Kawasaki KDX250 Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,UNI-TRAK

11012-1211

1
Out of stock

32029

BRACKET-ENGINE

32029-1333

1
Out of stock

92001

BOLT,8X57

92001-1493

1
Out of stock

92001A

BOLT,8X72

92001-1494

1
Out of stock

92015

NUT,8MM

92015-1143

1
Out of stock

92027

COLLAR,CHAIN GUIDE

92027-1383

1
Out of stock

92037

CLAMP

92037-1172

1
Out of stock

92072

BAND,L=123

92072-030

1
Out of stock

92072A

BAND,L=186

92072-056

1
Out of stock

92072B

BAND,FUEL TANK

92072-076

1
Out of stock

92122

ROLLER,CHAIN GUIDE

92122-1021

1
Out of stock
