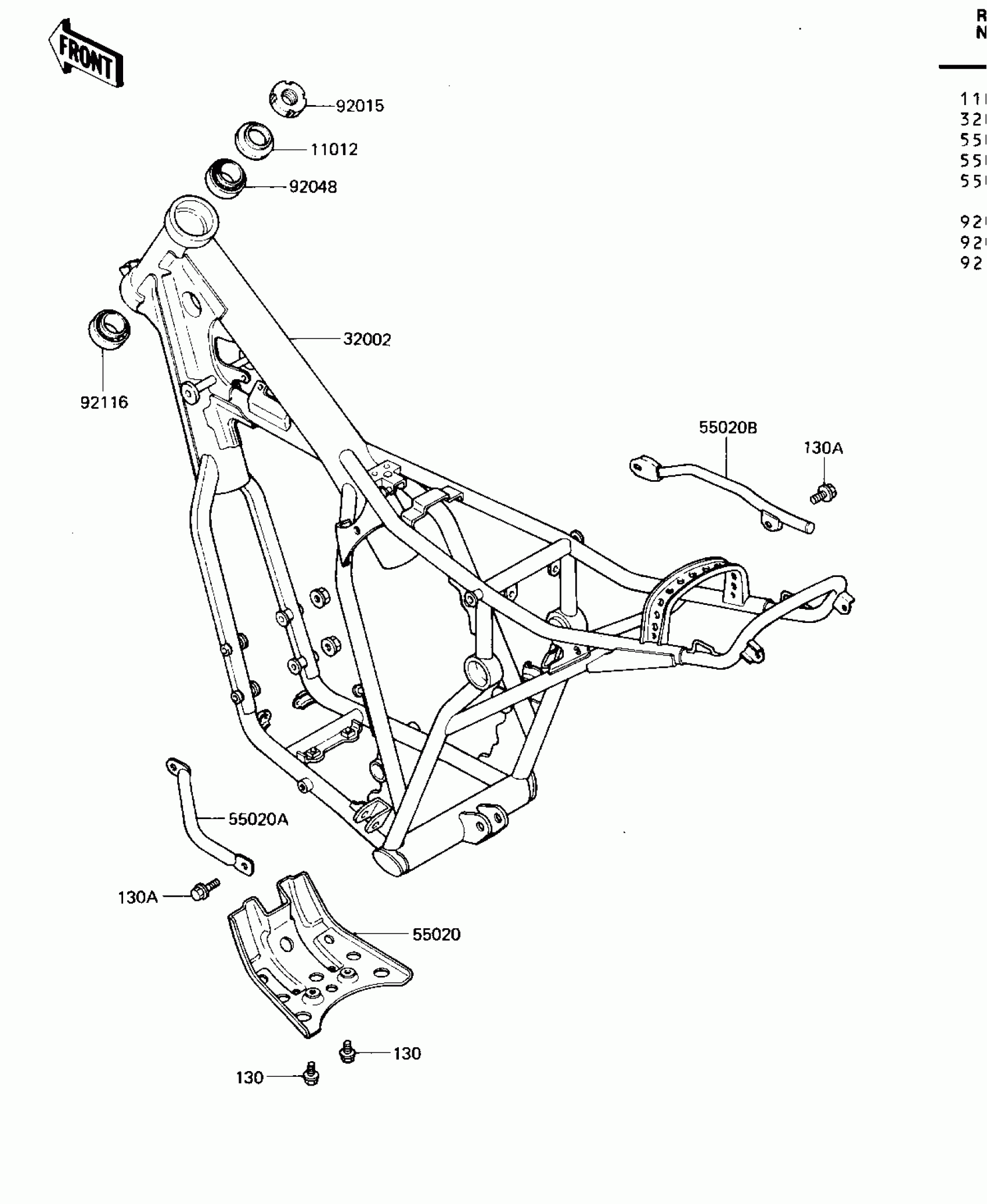

Kawasaki KDX250 FRAME Diagram

#

Description
Price

11012

CAP,STEERING STEM

46098-015

Unavailable

32002

FRAME-COMP

32002-1394

$773.89

55020

GUARD,ENGINE

55020-1062

$44.42

55020A

GUARD,LH

55020-1064

$41.77

55020B

GUARD,RH

55020-1065

$41.77

92015

NUT,25MM,T=12

92015-1546

$19.66

92048

RACE,ROLLER,32005JR RS

92047-017

$38.84

92116

BEARING-ROLLER,LWR,32006JR RS

92116-1008

$76.75

130

BOLT-FLANGED,6X12

130G0612

Unavailable

130A

BOLT-FLANGED,8X12

130G0812

Unavailable
