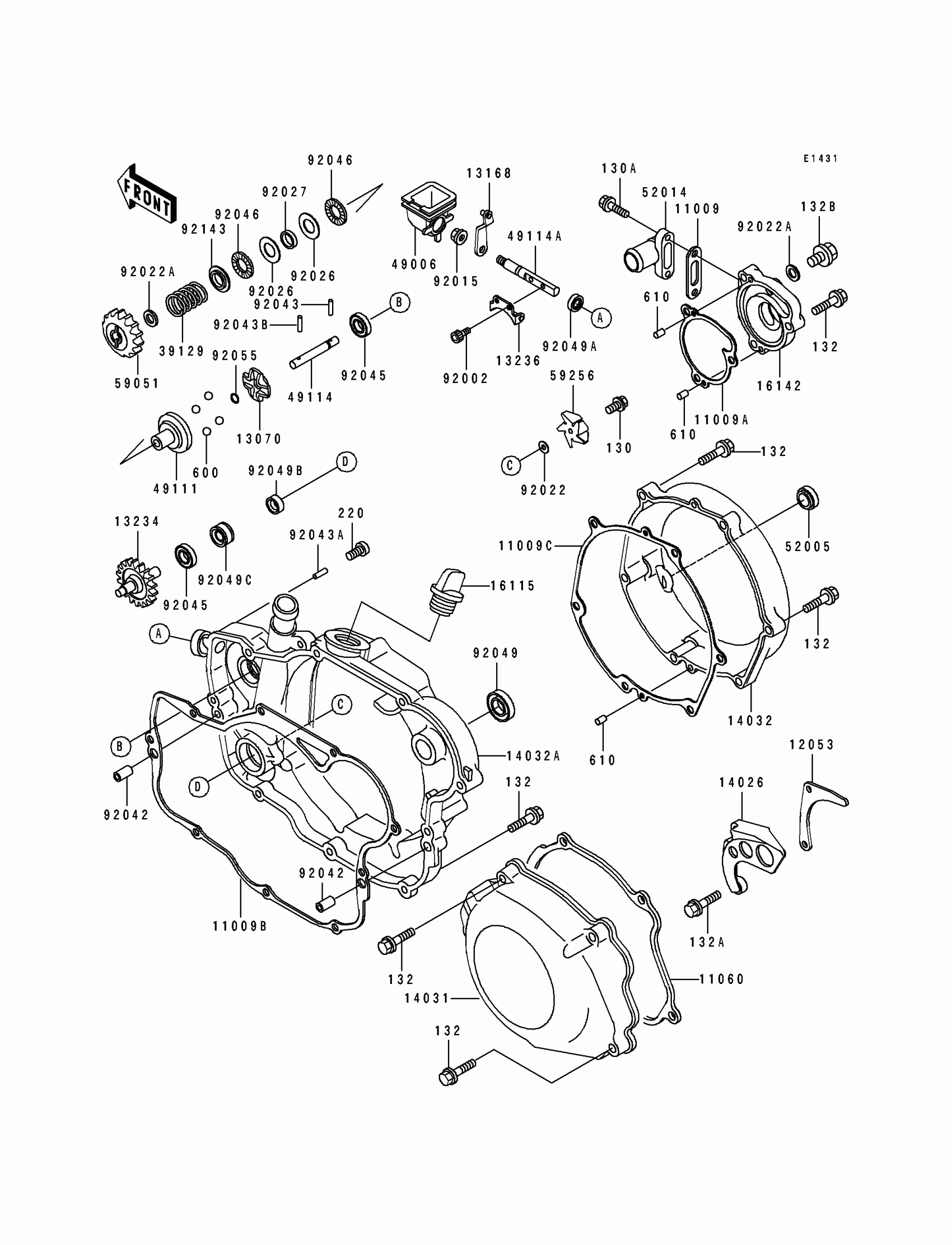

Kawasaki KDX250 Engine Covers Diagram
#
11009
GASKET,ELBOW
11009-1952
$5.54
11009A
GASKET,WATER PUMP COVER
11009-1953
$9.27
11009B
GASKET,CLUTCH COVER,IN
11009-1954
$35.71
11009C
GASKET,CLUTCH COVER,OUT
11009-1955
$20.95
11060
GASKET,GENERATOR COVER
11060-1192
Unavailable
12053
GUIDE-CHAIN
12053-1233
$10.50
13070
GUIDE
13070-1122
$79.07
13168
LEVER
13168-1442
Unavailable
13234
SHAFT-COMP,PUMP
13234-1093
$91.17
13236
LEVER-COMP,GOVERNOR
13236-1250
$9.77
14026
COVER-CHAIN
14026-1174
$26.81
14031
COVER-GENERATOR
14031-1253
Unavailable
14032
COVER-CLUTCH,OUTSIDE
14032-1283
Unavailable
14032A
COVER-CLUTCH,INSIDE
14032-1310
Unavailable
16115
CAP-OIL FILLER
16115-018
$10.56
16142
COVER-PUMP
16142-1085
Unavailable
39129
SPRING-GOVERNOR
39129-1007
Unavailable
49006
BOOT
49006-1202
$10.96
49111
HOLDER-GOVERNOR WEIGHT
49111-1051
$67.40
49114
SHAFT-GOVERNOR
49114-1058
$32.40
49114A
SHAFT-GOVERNOR
49114-1061
Unavailable
52005
GAUGE,OIL LEVEL
52005-1055
$14.76
52014
ELBOW
52014-1067
$15.89
59051
GEAR-SPUR,GOVERNOR
59051-1192
$12.46
59256
IMPELLER
59256-1067
Unavailable
92002
BOLT,SOCKET,4X8
92002-1403
$3.32
92015
NUT,FLANGED,6MM
92015-1193
Unavailable
92022
WASHER,5.2X13X1
92022-1380
$4.31
92022A
WASHER,8.2X14X1.0
92022-1488
$4.92
92026
SPACER,15X28X1
92026-1238
$8.47
92027
COLLAR,15.2X17X4
92027-1839
$12.27
92042
PIN,DOWEL,6.3X8X14
92042-007
$5.70
92043
PIN,3X12.8
92043-1256
$4.50
92043A
PIN,2X9.8
92043-1293
$6.52
92043B
PIN,3X19.8
92043-1319
$4.11
92045
BEARING-BALL
92045-1212
$12.37
92046
BEARING-NEEDLE,AXK1102
92046-1052
$14.47
92049
SEAL-OIL,SB18307
92049-013
$14.36
92049A
SEAL-OIL,SDO8144
92049-1207
$9.73
92049B
SEAL-OIL,MH8X18X3.5-A
92049-1359
$9.28
92049C
SEAL-OIL,MHSD8X18X10J-1
92049-1366
$17.95
92055
RING-O,5.5X1.5
92055-1343
$0.64
92143
COLLAR
92143-1001
$24.57
130
BOLT-FLANGED
130P0510
$1.76
130A
BOLT-FLANGED
130P0520
Unavailable
132
BOLT-FLANGED-SMALL
132G0625
Unavailable
132A
BOLT-FLANGED-SMALL,6X30
132G0630
$2.48
132B
BOLT-FLANGED-SMALL
132G0810
$4.02
220
SCREW-PAN-CROS,3X6
220B0306
$0.63
600
BALL-STEEL,5/16
600A1000
$0.73
610
ROLLER,4X8
610A0408
$4.31
