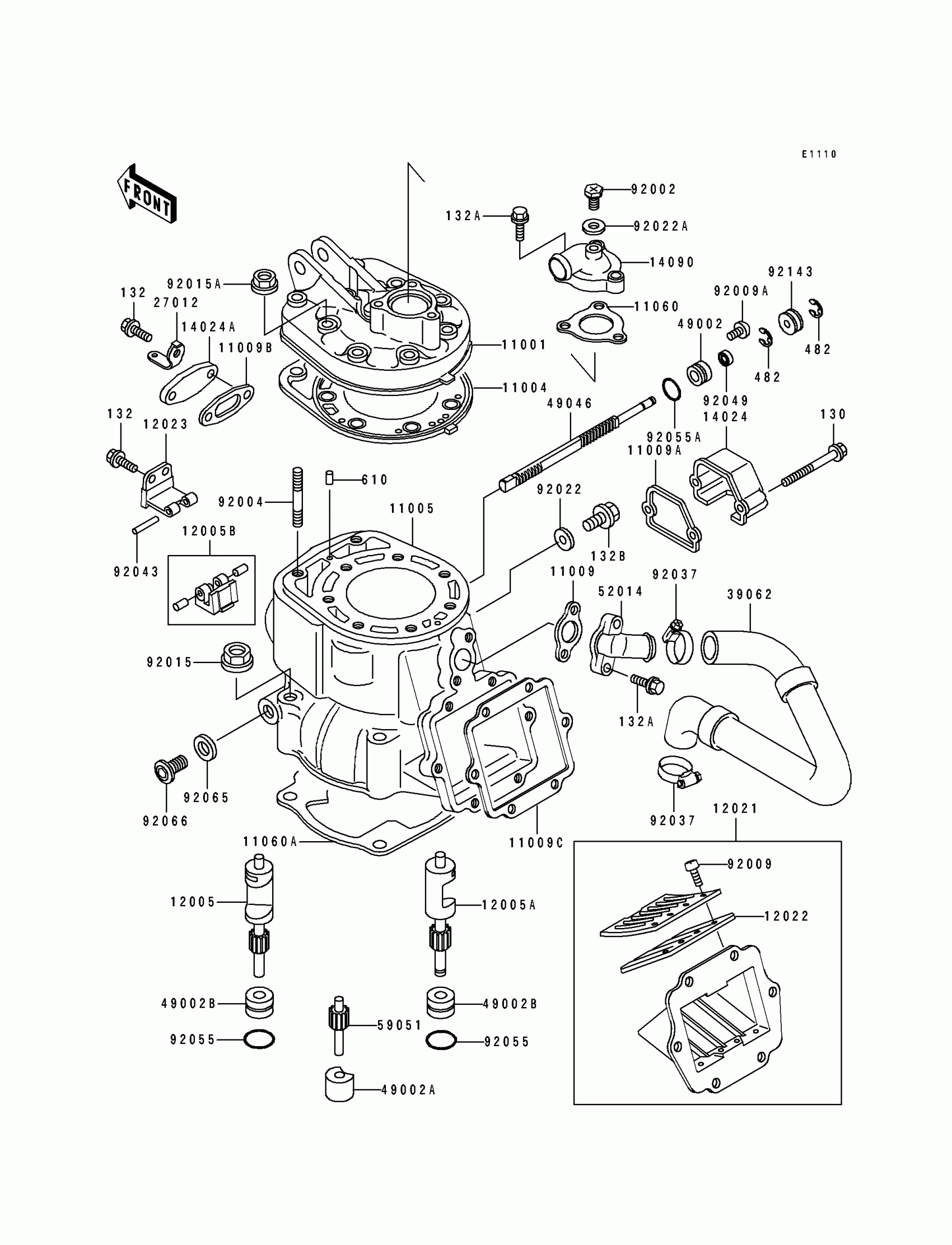

Kawasaki KDX250 Cylinder Head/Cylinder Diagram
#
11001
HEAD-CYLINDER
11001-1372
Unavailable
11004
GASKET-HEAD,T=0.46
11004-1215
$39.52
11005
CYLINDER-ENGINE
11005-1647
Unavailable
11009
GASKET,ELBOW
11009-1935
$4.97
11009A
GASKET,GOVERNOR COVER
11009-1946
$5.82
11009B
GASKET,VALVE COVER
11009-1948
$6.38
11009C
GASKET,REED VALVE
11009-1950
$11.49
11060
GASKET,THERMOSTAT COVER
11060-1102
$5.05
11060A
GASKET,CYLINDER BASE
11060-1147
$11.31
12005
VALVE-EXHAUST,LH
12005-1140
$104.51
12005A
VALVE-EXHAUST,RH
12005-1141
$104.51
12005B
VALVE-EXHAUST,CENTER
12005-1142
Unavailable
12021
VALVE-ASSY-REED
12021-1070
$143.46
12022
VALVE-REED
12022-1017
$29.73
12023
HOLDER-VALVE
12023-1055
Unavailable
14024
COVER,GOVERNOR
14024-1585
Unavailable
14024A
COVER,CENTER VALVE
14024-1588
$11.93
14090
COVER,THERMOSTAT
14090-1053
$20.67
27012
HOOK
27012-1423
Unavailable
39062
HOSE-COOLING,PUMP-CYLINDER
39062-1365
Unavailable
49002
GUIDE-VALVE
49002-1087
$17.12
49002A
GUIDE-VALVE,IDLE GEAR
49002-1110
$15.45
49002B
GUIDE-VALVE
49002-1111
Unavailable
49046
ROD-GOVERNOR
49046-1063
Unavailable
52014
ELBOW
52014-1077
$37.05
59051
GEAR-SPUR,IDLE
59051-1194
$46.02
92002
BOLT,6X10
92002-1222
$8.10
92004
STUD,8X33
92004-1197
$4.65
92009
SCREW,3X6
92009-1371
$4.18
92009A
SCREW,5X10
92009-1502
$4.18
92015
NUT,FLANGED,10MM
92015-077
$4.69
92015A
NUT,8MM
92015-1143
$0.65
92022
WASHER,8.2X14X1.0
92022-1488
$4.92
92022A
WASHER,6.2X11X1
92022-304
$3.65
92037
CLAMP,COOLING HOSE
92037-1589
$18.57
92043
PIN,4X23.8
92043-1373
$4.17
92049
SEAL-OIL,RSO-5.5X11X4
92049-1206
$10.39
92055
RING-O,17.5X1.5
92055-022
$6.22
92055A
RING-O,11.5X1.5
92055-1387
$3.92
92065
GASKET,12.5X18X1,DRAIN PLUG
92065-073
$4.07
92066
PLUG,12X10
92066-1222
$12.37
92143
COLLAR
92143-1056
$10.57
130
BOLT-FLANGED
130G0535
$3.84
132
BOLT-FLANGED-SMALL,6X16
132G0616
$1.47
132A
BOLT-FLANGED-SMALL
132G0625
Unavailable
132B
BOLT-FLANGED-SMALL
132G0810
$4.02
482
CIRCLIP-TYPE-E,4MM
482J4000
$1.35
610
ROLLER,4X8
610A0408
$4.31
