Description

Price

1

BOLT-SOCKET,6X25,BLACK

120S0625

$2.57

2

HOLDER,CARBURETOR

16065-1029

Unavailable

3

RING-SNAP

92036-018

$3.89

4

CLAMP,CARBURETOR HLDR

92037-116

$14.66

5

SCREW-PAN-CROS

220B0535

$3.70

6

CARBURETOR ASSY

16001-1304

Unavailable

7

ADJUSTER-CABLE

16002-1006

Unavailable

8

NUT,CABLE ADJUST LOCK

16003-004

$7.34

9

GUIDE,CABLE

13070-1014

Unavailable

10

GASKET,CABLE GUIDE

11009-1191

Unavailable

11

TOP,MIXING CHAMBER

16004-1010

$36.19

12

CLAMP,CABLE GUIDE

16008-011

Unavailable

13

SPRING,THROTTLE VALVE

16006-028

$11.14

14

SCREW,4X5

92009-1037

$3.56

15

SEAT,THROTTLE VALVE

16007-1007

Unavailable

16

CLAMP,E-TYPE

16008-010

$9.21

17

JET NEEDLE,6F21

16009-1067

Unavailable

18

VALVE ASSY,CA2.0

16025-1048

$65.57

19

SCREW,THROTTLE STOP

16021-1024

Unavailable

20

SPRING,THRTL STP SCRW

92081-1200

$9.28

21

SCREW

16014-006

$17.15

22

SPRING,PILOT AIR SCREW

16022-007

$8.13

23

GASKET,FLOAT VALVE

11009-1076

Unavailable

24

BAFFLE-CARB

16038-019

$18.24

25

FLOAT VALVE ASSY

16030-020

$82.44

26

PILOT JET #60A

92064-031

$13.11

27

NEEDLE JET,R-2

16017-1066

$20.08

28

HOLDER,NEEDLE JET

16065-1017

$37.32

29

MAIN JET,#167.5R

92063-1021

$10.43

29

MAIN JET,#172.5R

92063-1027

Unavailable

29

MAIN JET,#170R

92063-1022

Unavailable

29

MAIN JET,#165R

92063-1020

Unavailable

29

MAIN JET,#162.5R

92063-1019

Unavailable

30

PIN,FLOAT

16032-008

$6.57

31

ARM-FLOAT

16055-009

Unavailable

32

FLOAT

16031-029

$64.25

33

GASKET,FLOAT CHAMBER

16019-028

Unavailable

34

UNAVAILABLE IN PRICE BOOK

214B0516A

Unavailable

35

WASHER SPRING 5MM

461F0500

$0.69

36

GASKET,MAIN JET COVER

16038-009

Unavailable

37

COVER-MAIN JET

16049-006

Unavailable

38

TUBE,3.5X6.5X410

92059-1142

Unavailable

39

CAP,STARTER PLUNGER

16039-015

$6.88

40

CAP-STARTER PLUNGER

16012-019

$21.09

41

SPRING PLATE,STARTER

13169-1052

Unavailable

42

LEVER,STARTER PLUNGER

13168-1048

Unavailable

43

O RING,9MM

670B1509

$3.65

44

SPRING,STARTER PLUNGER

92081-1181

$4.11

45

PLUNGER ASSY,STARTER

16016-1008

$24.34

46

CLAMP,TUBE

92037-1184

$1.45

47

TUBE,7.5X12.5X225

92059-1123

Unavailable

48

TUBE,3.5X6.5X290,BRTH

92059-1017

Unavailable

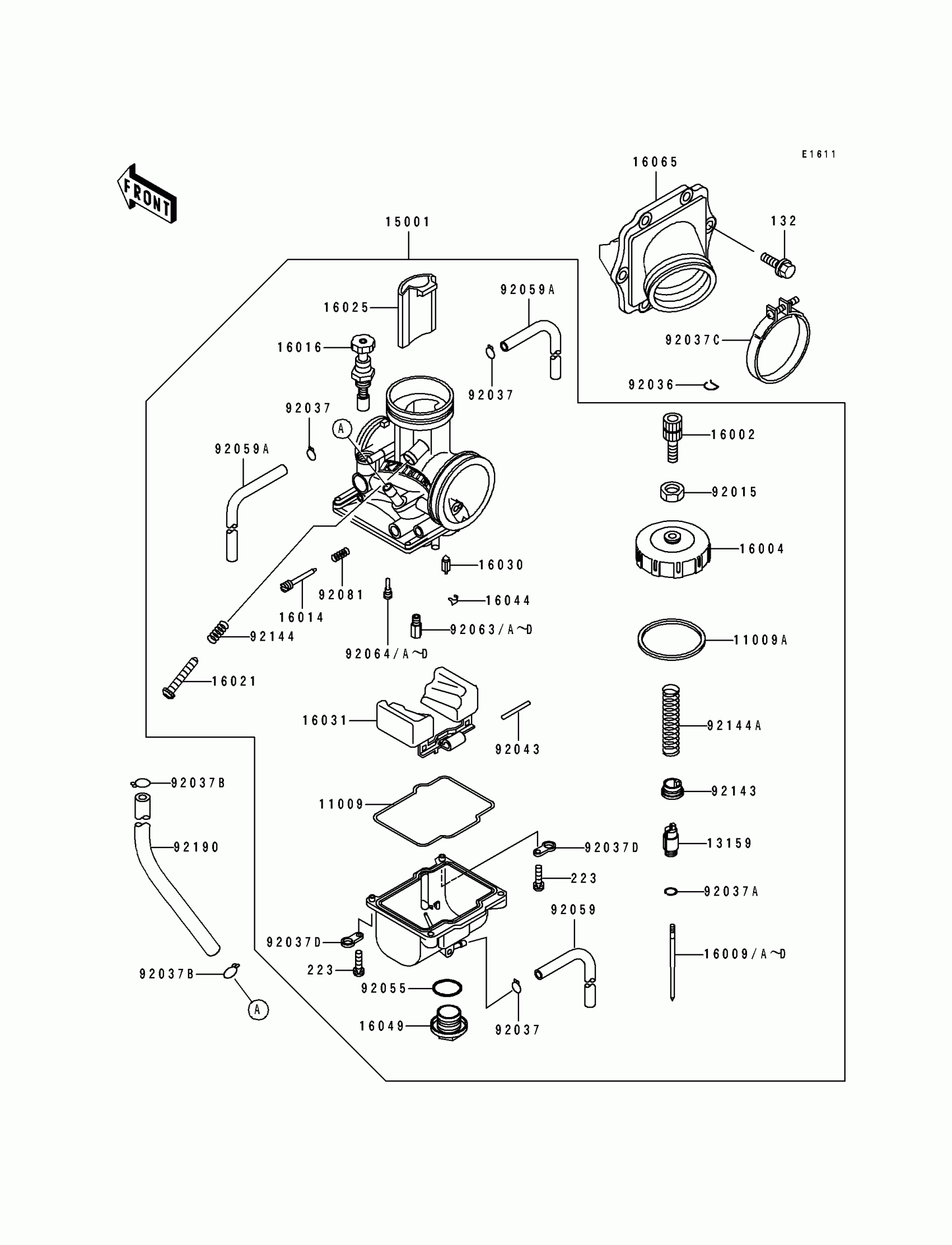

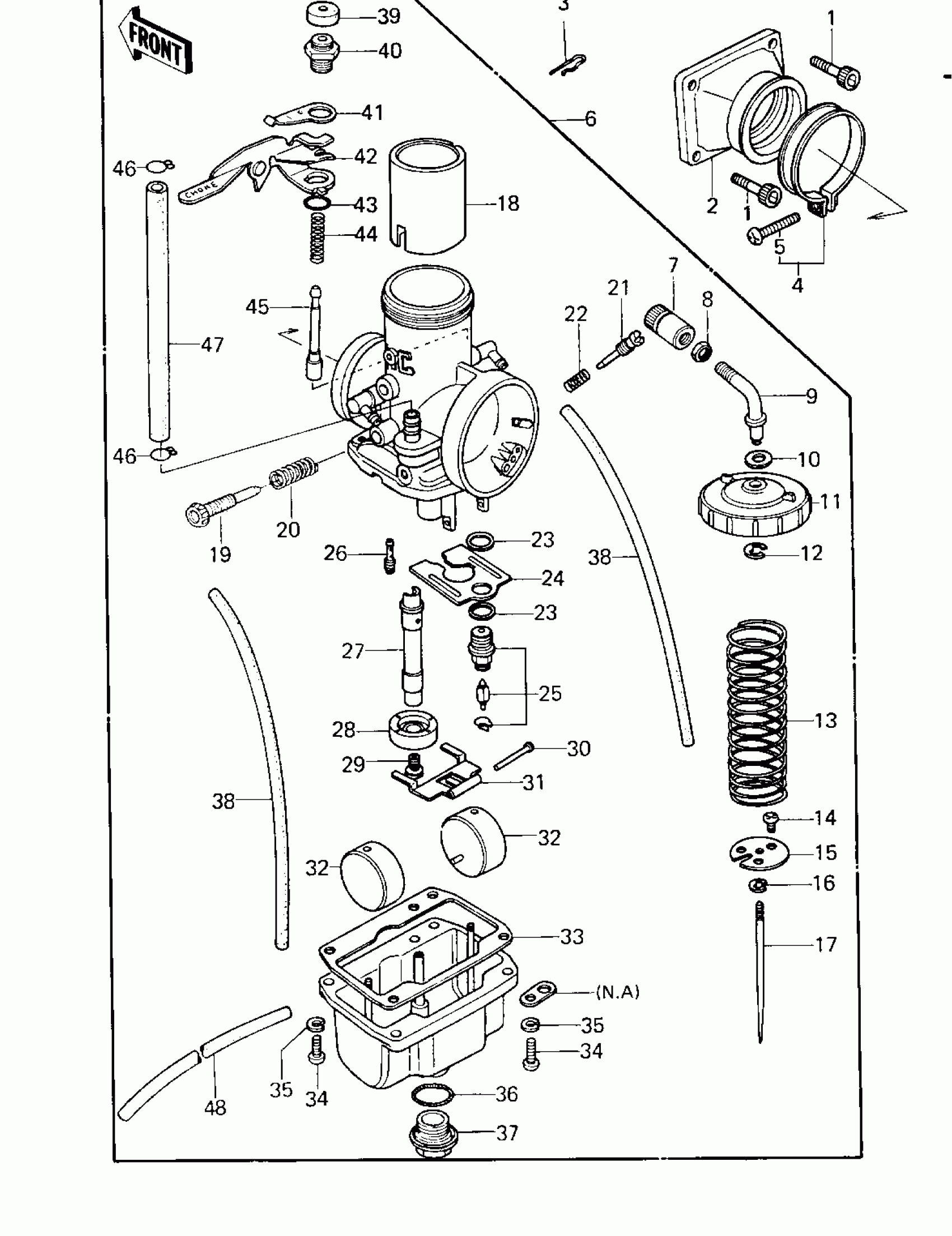

Kawasaki KDX250 CARBURETOR Diagram

BOLT-SOCKET,6X25,BLACK

HOLDER,CARBURETOR

RING-SNAP

CLAMP,CARBURETOR HLDR

SCREW-PAN-CROS

CARBURETOR ASSY

ADJUSTER-CABLE

NUT,CABLE ADJUST LOCK

GUIDE,CABLE

GASKET,CABLE GUIDE

TOP,MIXING CHAMBER

CLAMP,CABLE GUIDE

SPRING,THROTTLE VALVE

SCREW,4X5

SEAT,THROTTLE VALVE

CLAMP,E-TYPE

JET NEEDLE,6F21

VALVE ASSY,CA2.0

SCREW,THROTTLE STOP

SPRING,THRTL STP SCRW

SCREW

SPRING,PILOT AIR SCREW

GASKET,FLOAT VALVE

BAFFLE-CARB

FLOAT VALVE ASSY

PILOT JET #60A

NEEDLE JET,R-2

HOLDER,NEEDLE JET

MAIN JET,#167.5R

MAIN JET,#172.5R

MAIN JET,#170R

MAIN JET,#165R

MAIN JET,#162.5R

PIN,FLOAT

ARM-FLOAT

FLOAT

GASKET,FLOAT CHAMBER

UNAVAILABLE IN PRICE BOOK

WASHER SPRING 5MM

GASKET,MAIN JET COVER

COVER-MAIN JET

TUBE,3.5X6.5X410

CAP,STARTER PLUNGER

CAP-STARTER PLUNGER

SPRING PLATE,STARTER

LEVER,STARTER PLUNGER

O RING,9MM

SPRING,STARTER PLUNGER

PLUNGER ASSY,STARTER

CLAMP,TUBE

TUBE,7.5X12.5X225

TUBE,3.5X6.5X290,BRTH
