Description

Price

13127

SHAFT-TRANSMISSION INPUT,13T

13127-1237

$221.73

13128

SHAFT-TRANSMISSION OUTPUT

13128-1164

$190.50

13129

GEAR,INPUT 5TH,24T

13129-1753

$122.28

13129A

GEAR,OUTPUT LOW,35T

13129-1755

$122.28

13144

SPROCKET-OUTPUT,13T

13144-1027

$34.32

13260

GEAR,INPUT 2ND,14T

13260-1003

$83.85

13260A

GEAR,OUTPUT 2ND,28T

13260-1004

$122.28

13260B

GEAR,INPUT 3RD&4TH,15T&17T

13260-1006

$110.17

13260C

GEAR,INPUT TOP,23T

13260-1425

$122.90

13260D

GEAR,OUTPUT 3RD,23T

13260-1426

$122.90

13260E

GEAR,OUTPUT 5TH,25T

13260-1427

$122.90

13260F

GEAR,OUTPUT TOP,20T

13260-1489

$122.90

13260G

GEAR,OUTPUT 4TH,21T

13260-1567

$110.05

92022

WASHER,THRUST,16.5X28X1

92022-170

$9.28

92033

RING-SNAP,24MM

92033-026

$8.79

92033A

RING-SNAP

92033-032

$4.96

92033B

RING-SNAP,20MM

92033-1231

$5.54

92033C

RING-SNAP,20MM

92033-1258

$6.10

92046

BEARING-NEEDLE,K17X23X13.8X

92046-1059

$21.25

92055

RING-O

92055-035

$5.00

92143

COLLAR

92143-1433

$13.83

92143A

COLLAR

92143-1472

$27.35

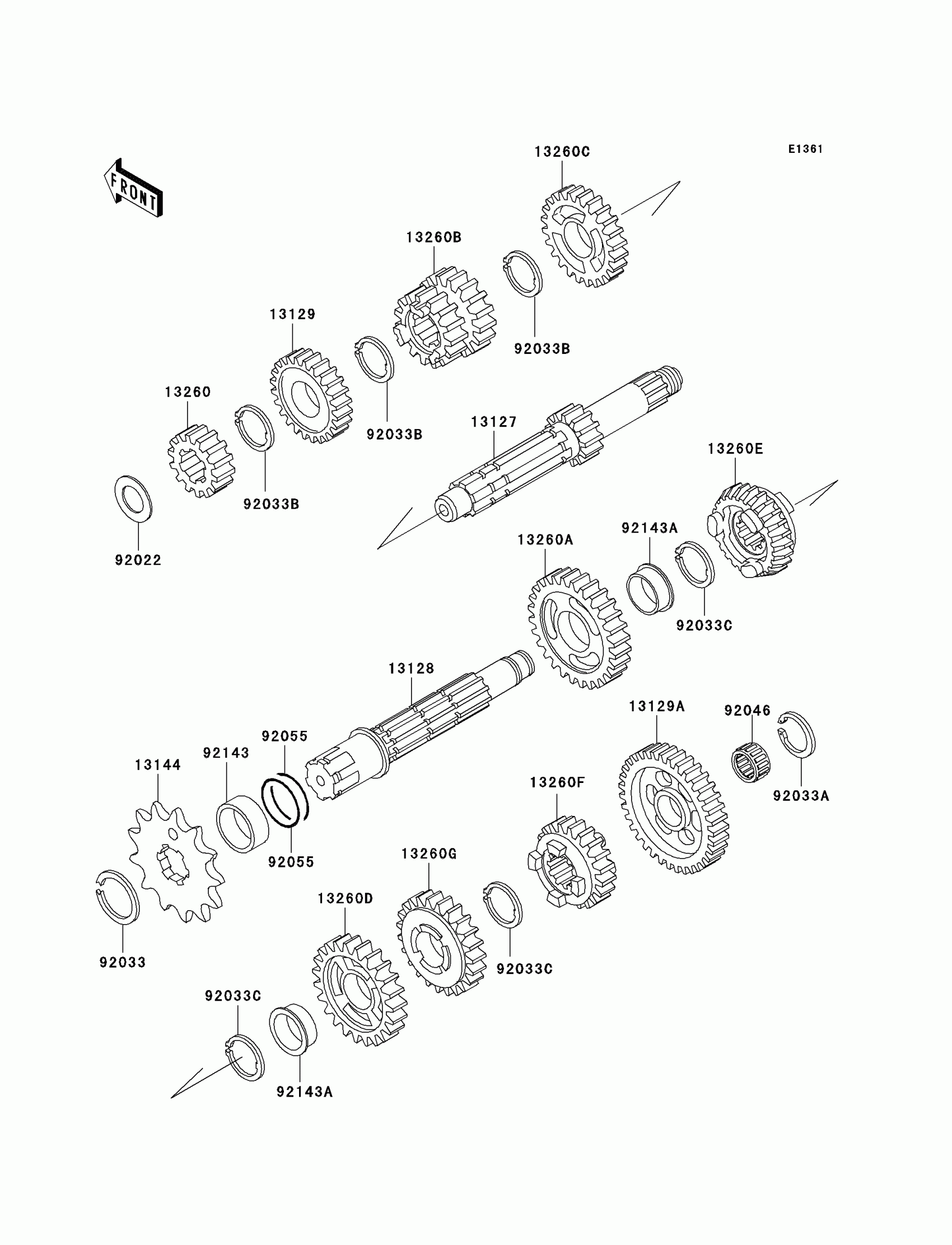

Kawasaki KDX220R Transmission Diagram

SHAFT-TRANSMISSION INPUT,13T

SHAFT-TRANSMISSION OUTPUT

GEAR,INPUT 5TH,24T

GEAR,OUTPUT LOW,35T

SPROCKET-OUTPUT,13T

GEAR,INPUT 2ND,14T

GEAR,OUTPUT 2ND,28T

GEAR,INPUT 3RD&4TH,15T&17T

GEAR,INPUT TOP,23T

GEAR,OUTPUT 3RD,23T

GEAR,OUTPUT 5TH,25T

GEAR,OUTPUT TOP,20T

GEAR,OUTPUT 4TH,21T

WASHER,THRUST,16.5X28X1

RING-SNAP,24MM

RING-SNAP

RING-SNAP,20MM

RING-SNAP,20MM

BEARING-NEEDLE,K17X23X13.8X

RING-O

COLLAR

COLLAR
