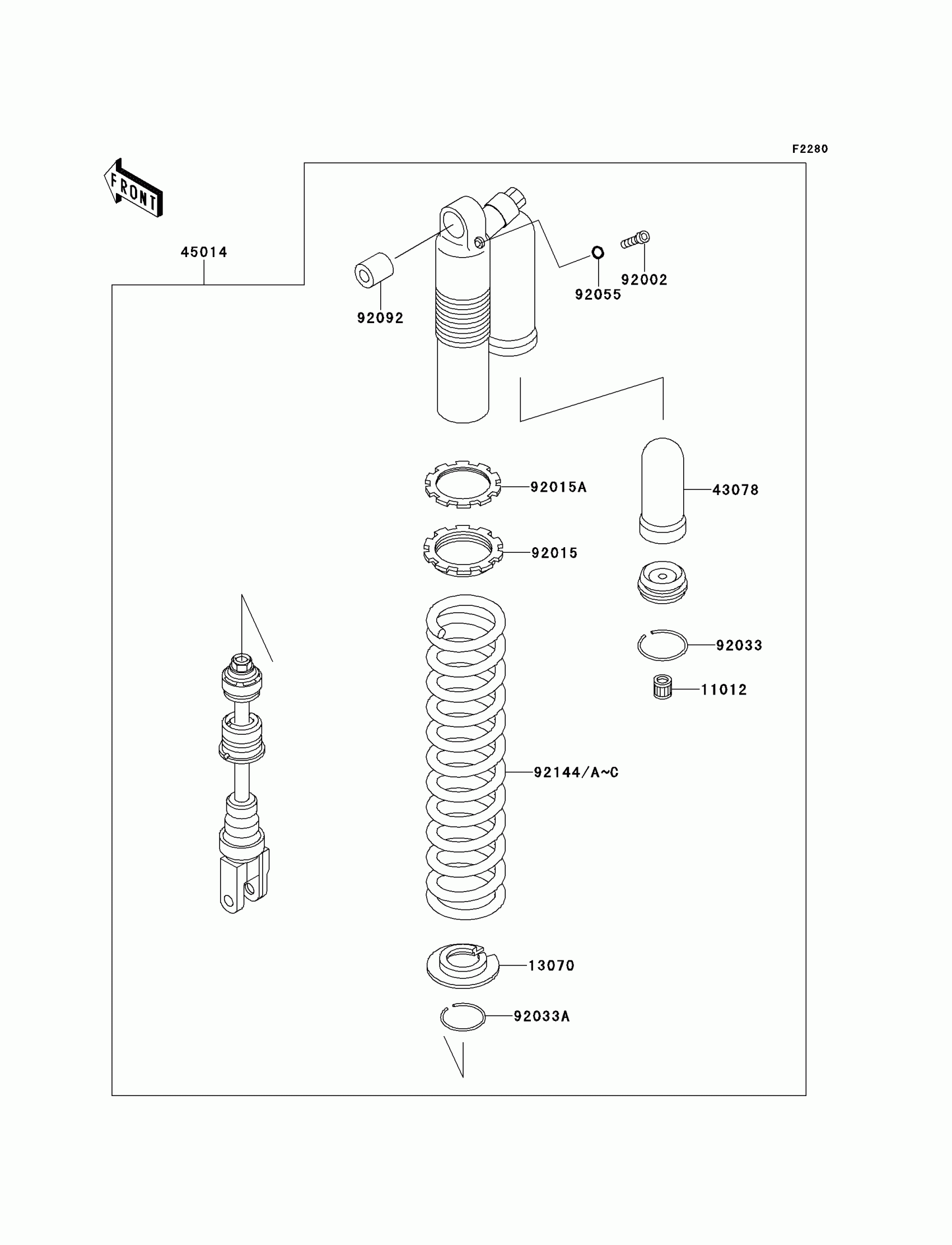

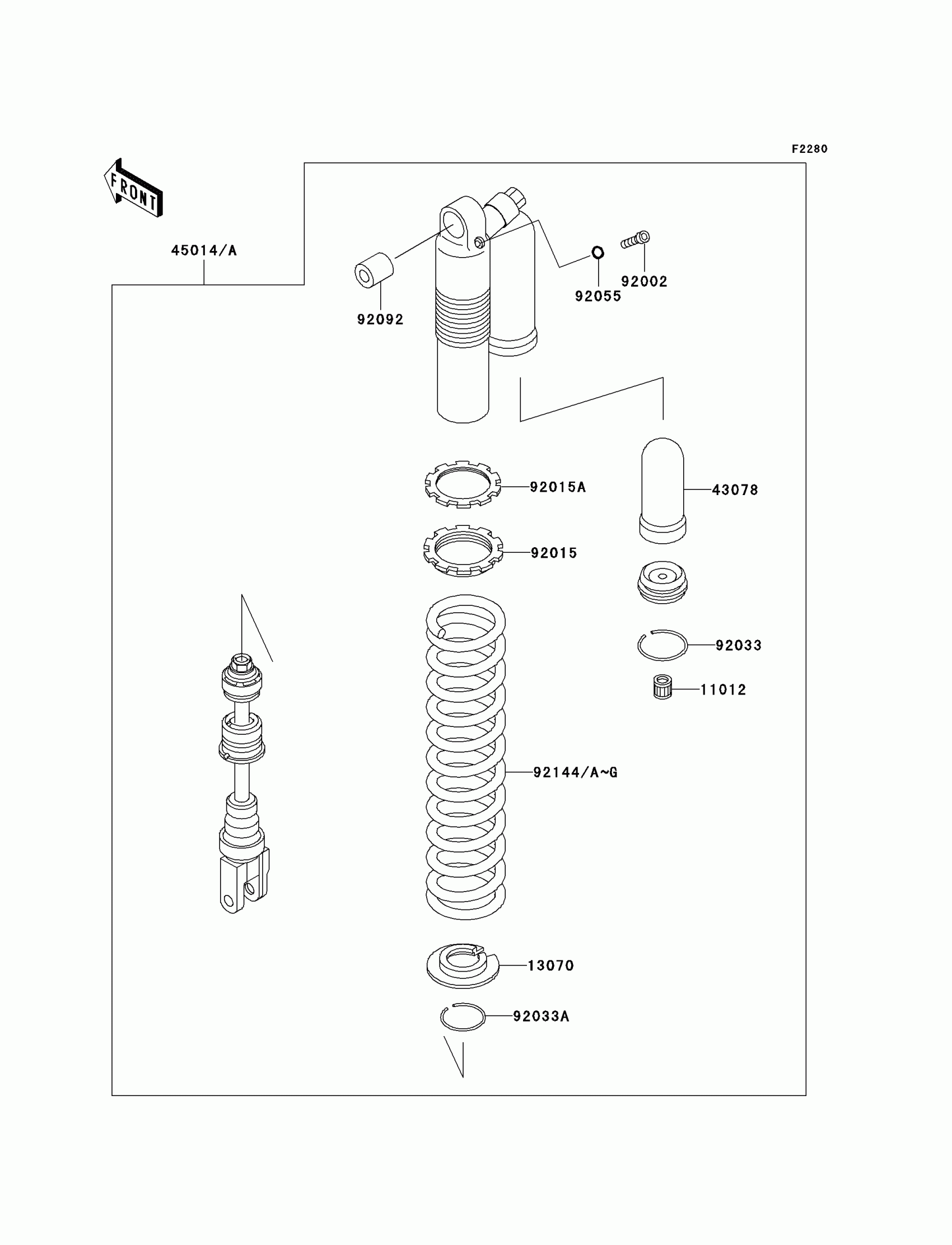

Kawasaki KDX220R Shock Absorber(s) Diagram

Description

Price

11012

CAP,VALVE AIR

11012-1391

$5.73

13070

GUIDE,SPRING

13070-1165

$35.42

43078

RESERVOIR,SHOCKABSORBER

43078-1094

$123.38

45014A

SHOCKABSORBER,I.SILVER

45014-1596-8V

$1,478.29

92002

BOLT,DRAIN

92002-1955

$11.16

92015

NUT,SPRING ADJUST

92015-1703

$40.51

92015A

NUT,SPRING ADJUST LOCK

92015-1704

$38.08

92033

RING-SNAP

92033-1209

$9.20

92033A

RING-SNAP,SHOCKABSORBER

92033-1228

$4.96

92055

RING-O

92055-1383

$4.11

92092

BUSHING-RUBBER,SHOCKABSORBER

92092-1062

$28.82

92144A

SPRING,SHOCKABSORBER,K=5.0,SIL

92144-1830-8V

$473.05

92144C

SPRING,SHOCKABSORBER,K=4.8,SIL

92144-1837-8V

$521.71

92144E

SPRING,SHOCKABSORBER,K=5.2,SIL

92144-1838-8V

$521.71

92144G

SPRING,SHOCKABSORBER,K=5.4,SIL

92144-1839-8V

$521.71
