2005 Kawasaki KDX220R Reflectors Diagram

← All diagrams

Find the part on the Reflectors diagram for your 2005 Kawasaki KDX220R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

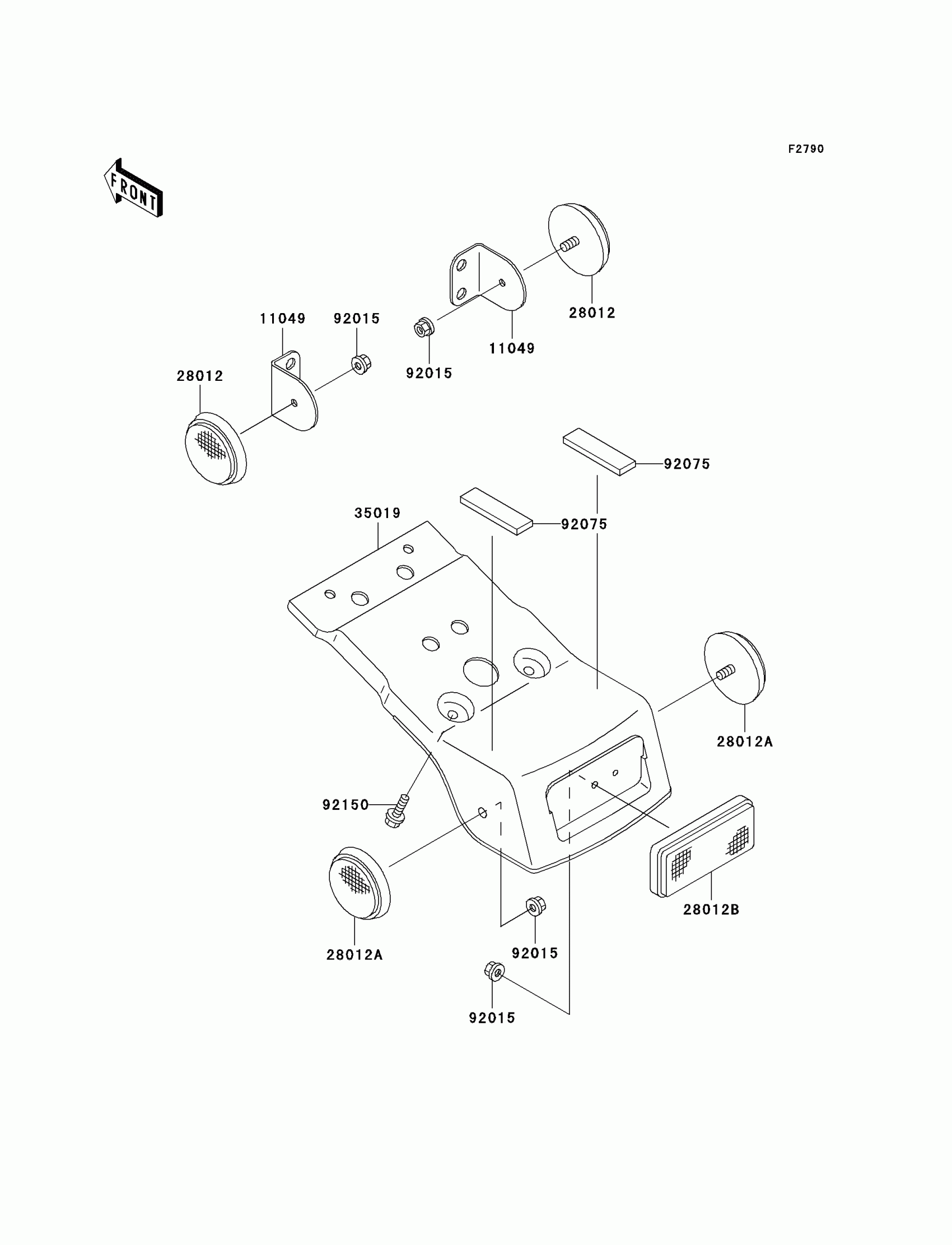

2005 Kawasaki KDX220R Reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11049

BRACKET,REFLECTOR

11049-1064

1

$9.97

In stock

28012

1

$21.56

In stock

28012A

REFLECTOR-REFLEX

28012-1067

1

$21.58

In stock

28012B

REFLECTOR-REFLEX

28012-1077

1

$21.76

In stock

35019

FLAP,RR

35019-1328

1

$78.92

In stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92075

1

$4.31

In stock

92150

BOLT,6X12

92150-1435

1

$3.43

In stock
