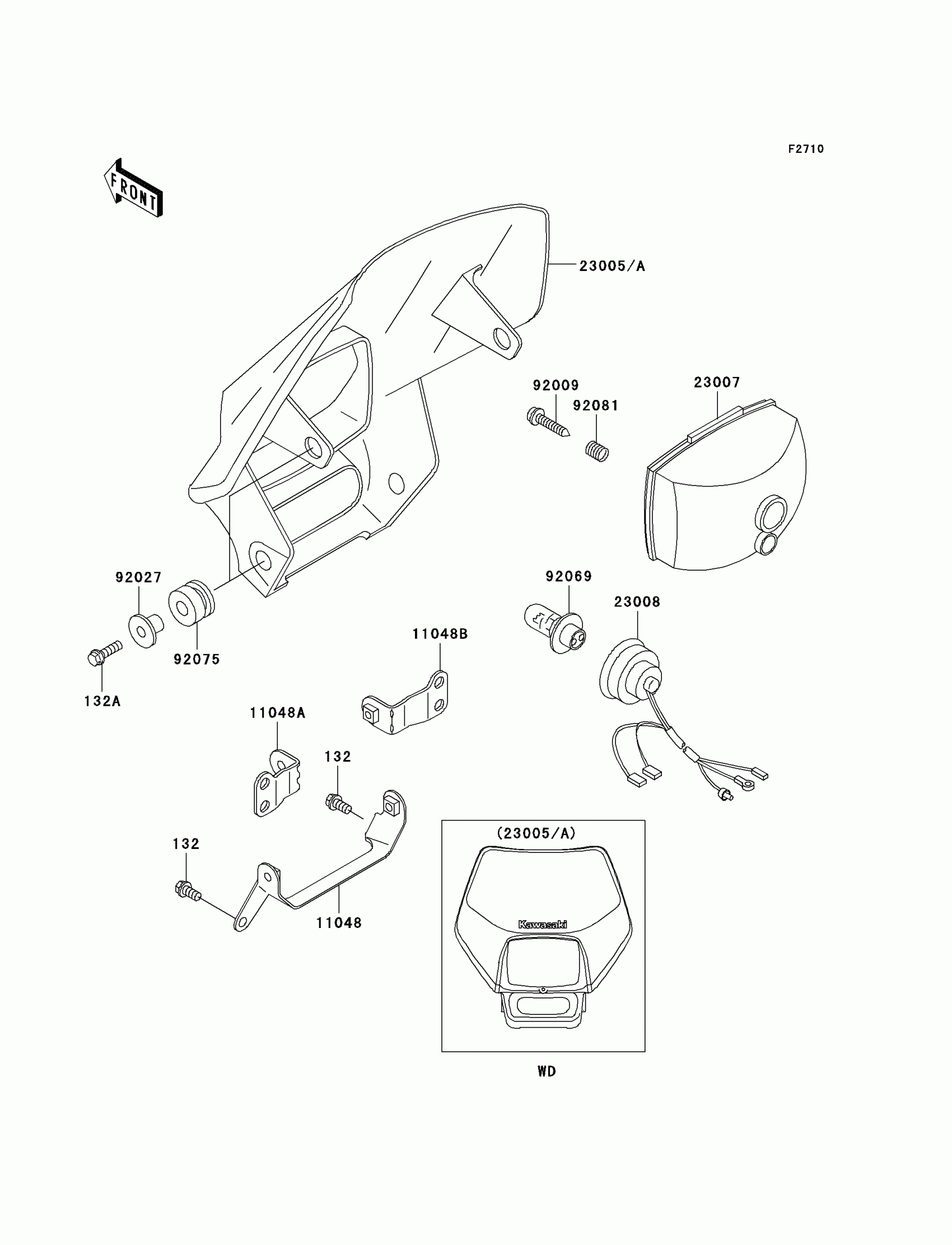

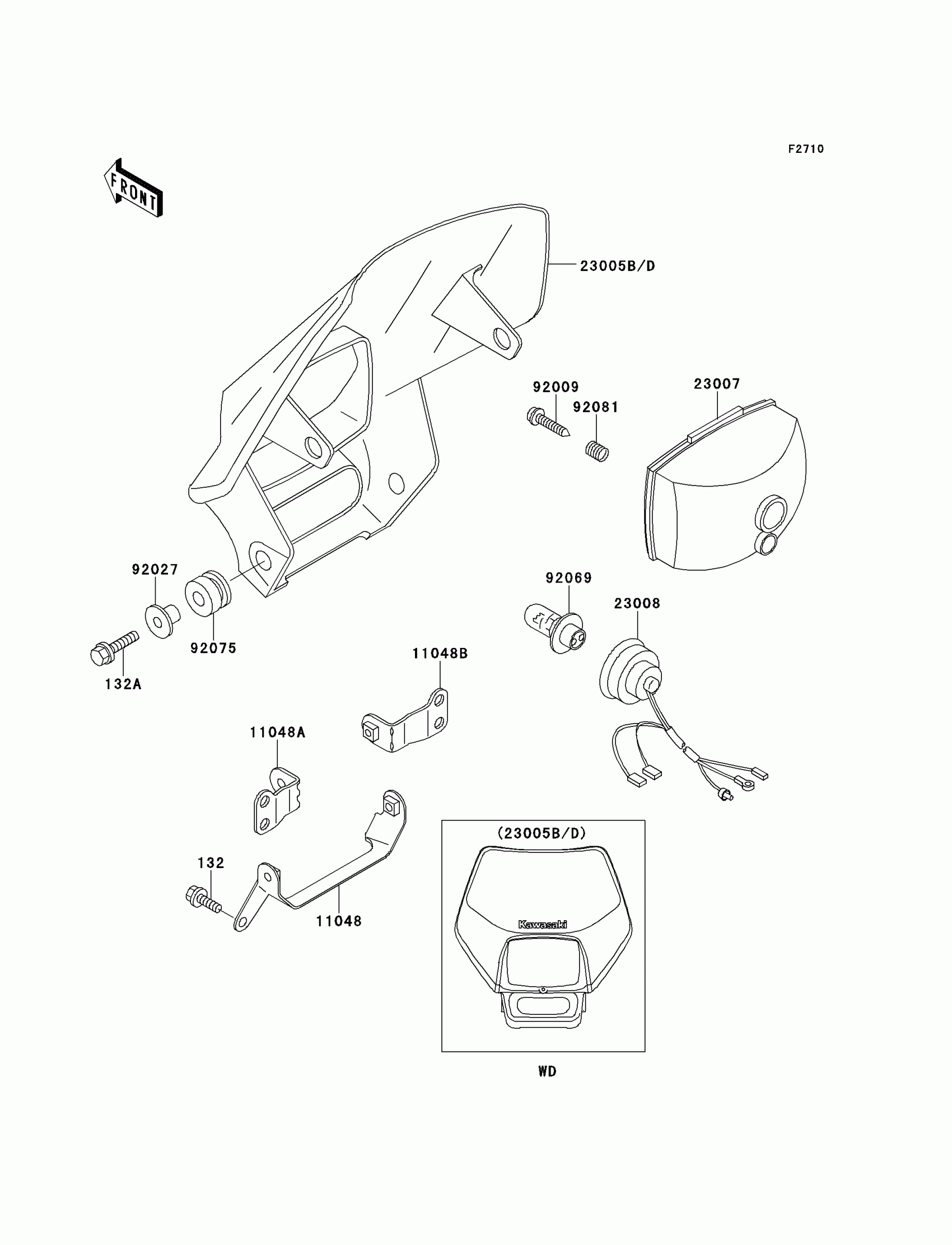

Find the part on the Headlight diagram for your 2001 Kawasaki KDX220R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Kawasaki KDX220R Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL

132G0612

1
Out of stock

132A

BOLT-FLANGED-SMALL

132G0620

1
Out of stock

11048

BRACKET,HEAD LAMP,LWR

11048-1089

1
Out of stock

11048A

1

$9.56

In stock

11048B

1

$9.56

In stock

23005D

1

$173.29

In stock

23007

LENS-COMP,HEAD LAMP

23007-1246

1

$50.25

In stock

23008

1

$62.78

In stock

92009

SCREW,TAPPING

92009-1695

1
Out of stock

92027

COLLAR,6.5X10X14.1

92027-1183

1

$4.37

In stock

92069

BULB,12V 30/30W

92069-1080

1

$27.68

In stock

92075

DAMPER,RUBBER

92075-1123

1

$3.97

In stock

92081

1

$3.88

In stock
