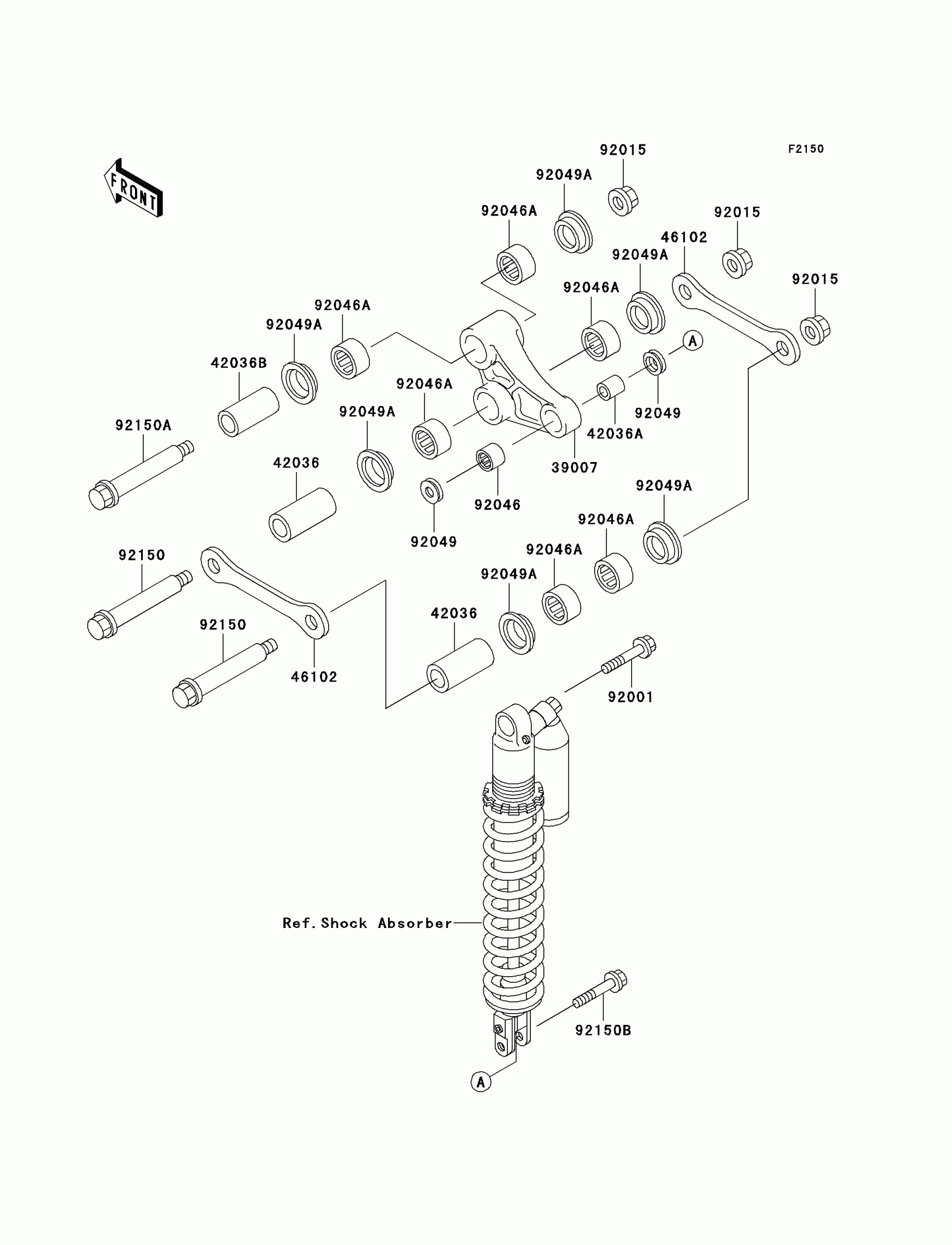

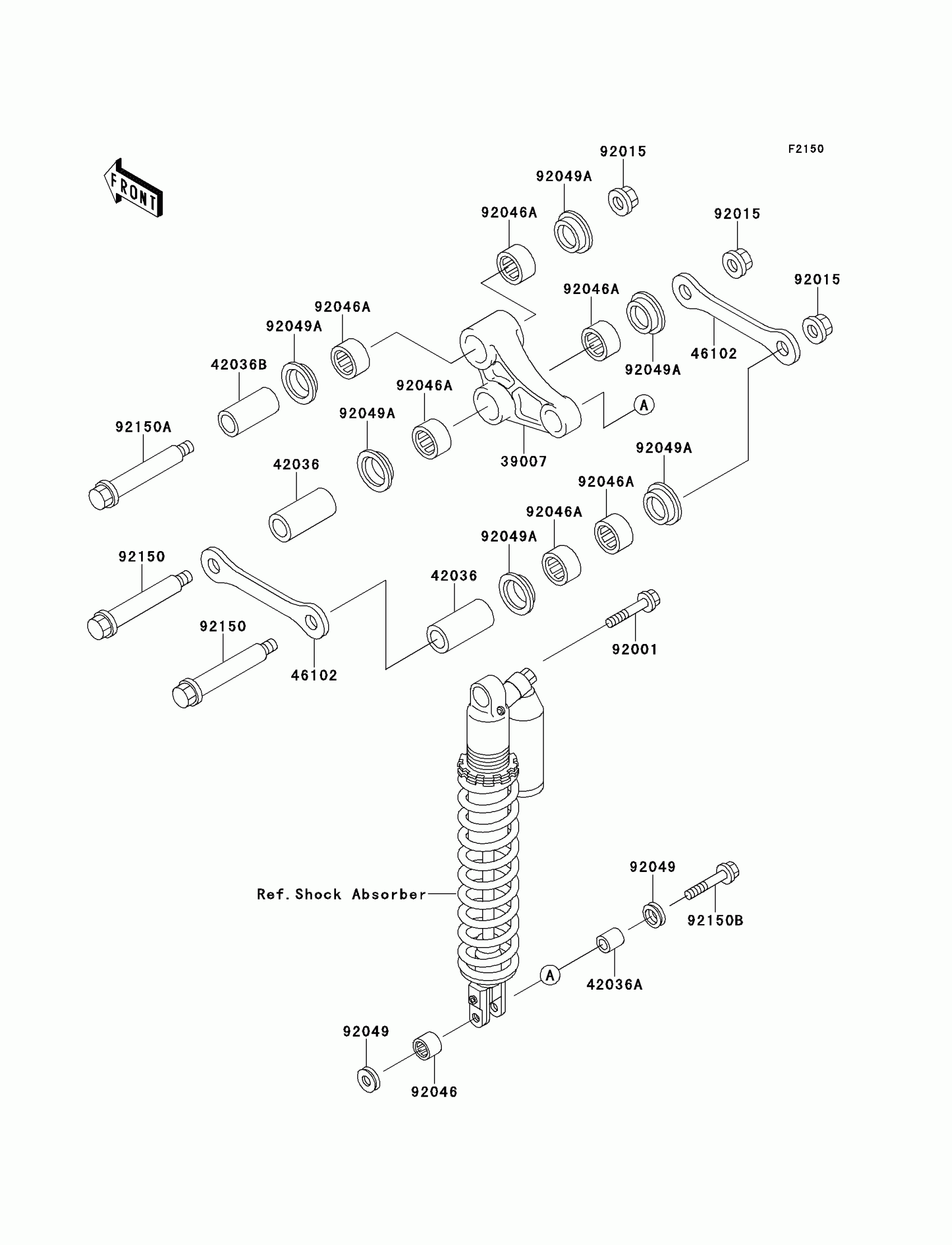

Kawasaki KDX220R Rear Suspension Diagram

Description

Price

39007

ARM-SUSP,UNI TRAK

39007-1229

$253.79

42036

SLEEVE,15X22X57

42036-1245

$21.29

42036A

SLEEVE,10X16X19

42036-1248

$9.91

42036B

SLEEVE,15X22X45

42036-1309

$25.59

46102

ROD,SUSPENSION

46102-1358

$58.68

92001

BOLT,FLANGED,10X44

92001-1499

$5.52

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92046

BEARING-NEEDLE,16BM2212

92046-1192

$18.21

92046A

BEARING-NEEDLE,22BM2816

92046-1216

$22.09

92049

SEAL-OIL

92049-1330

$12.29

92049A

SEAL-OIL,MHA22 28 5.7F-1

92049-1402

$10.39

92150

BOLT,ROD,12X85

92150-1213

$24.41

92150A

BOLT,FLANGED,12X76

92150-1701

Unavailable

92150B

BOLT,FLANGED,10X40

92150-1711

$12.35
