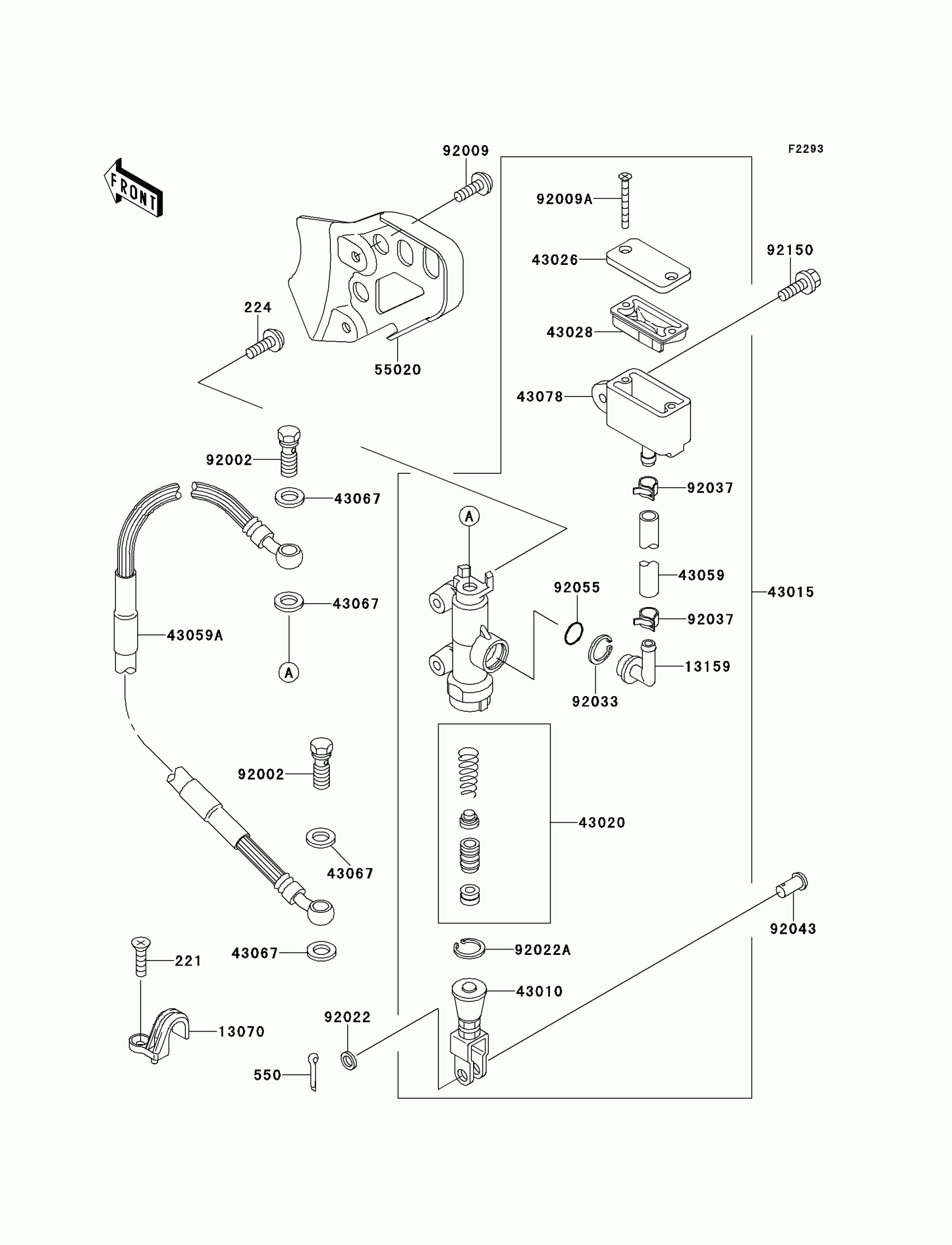

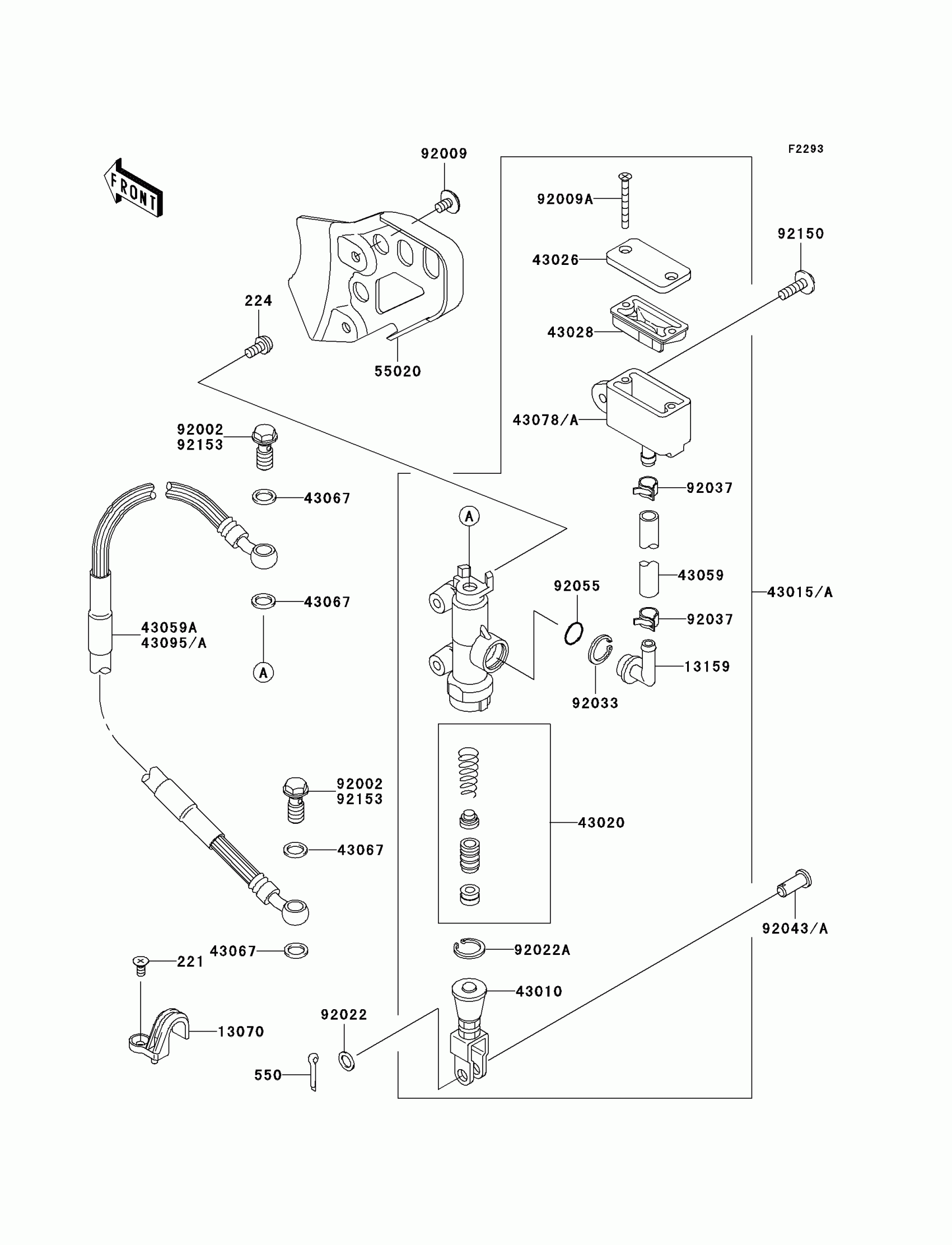

Kawasaki KDX220R Rear Master Cylinder Diagram

#

Description
Price

221

SCREW-CSK-CROS,5X10

221B0510

Unavailable

224

SCREW-PAN-WP-CROS

224B0614

$4.17

550

PIN COTTER 2.0X15

550D2015

Unavailable

13070

GUIDE,HOSE

13070-1275

$6.21

13159

CONNECTOR

13159-1056

$10.71

43010

ROD-ASSY-BRAKE

43010-1068

$45.28

43015

CYLINDER-ASSY-MASTER,RR

43015-1515

$346.56

43020

PISTON-COMP-BRAKE

43020-1094

$58.51

43026

CAP-BRAKE

43026-1075

$12.97

43028

DIAPHRAGM

43028-1067

$14.12

43059

HOSE-BRAKE

43059-1561

$14.68

43059A

HOSE-BRAKE,RR

43059-1863

$103.75

43067

WASHER,10.5X15X1.5

43067-001

$1.57

43078

RESERVOIR

43078-1122

$26.83

55020

GUARD,RR M/CYLINDER&OIL TANK

55020-1487

$40.76

92002

BOLT,OIL,L=23

92002-1888

$4.15

92009

SCREW,6X10,WHITE

92009-1286

$3.29

92009A

SCREW,4X40

92009-1596

$3.01

92022

WASHER,8.5X13X1

92022-1028

$2.99

92022A

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$3.78

92037

CLAMP

92037-1710

$7.54

92043

PIN

92043-1039

$7.54

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92150

BOLT,6X20

92150-1339

$3.35
