2001 Kawasaki KDX220R Front Master Cylinder Diagram

← All diagrams

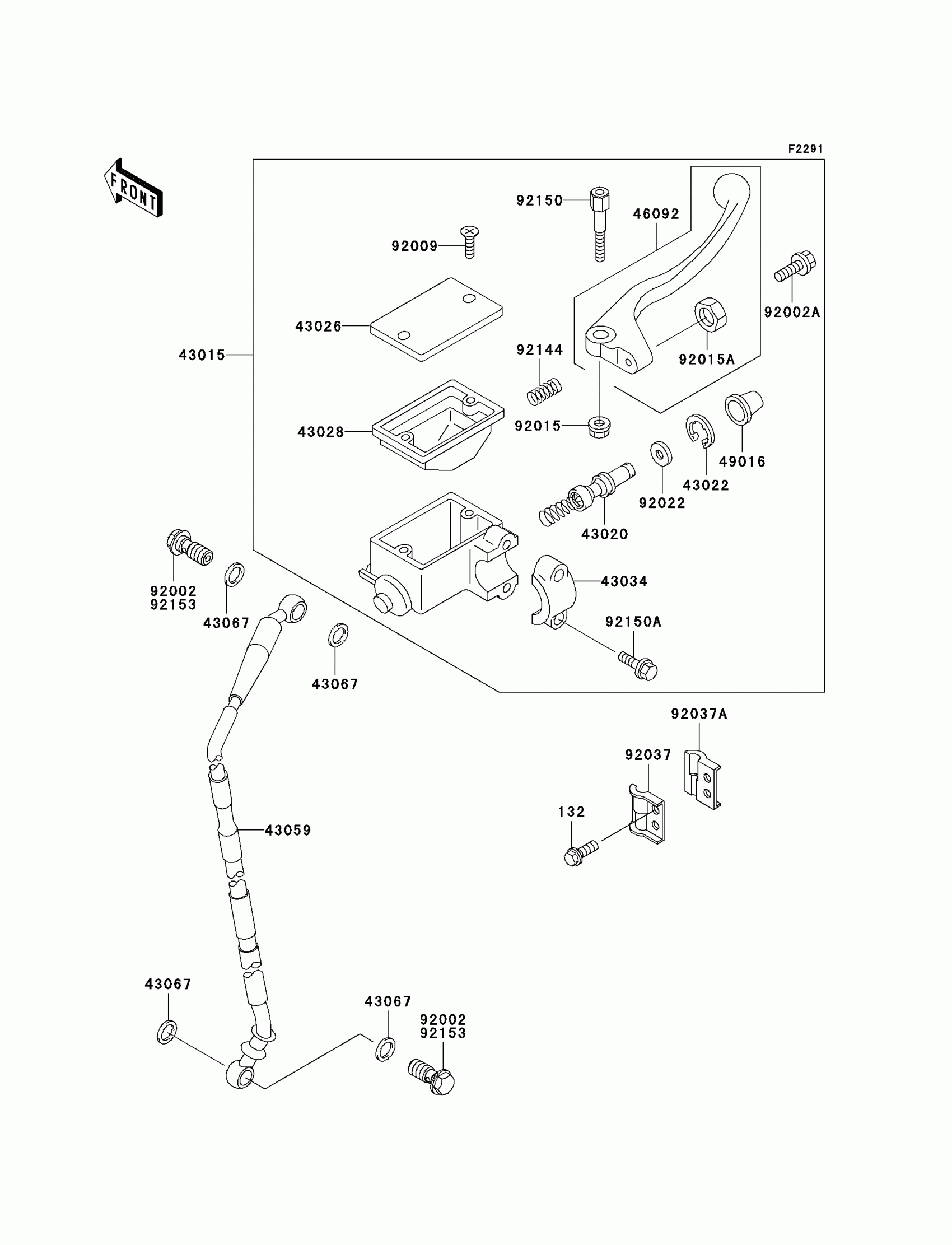

Find the part on the Front Master Cylinder diagram for your 2001 Kawasaki KDX220R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Kawasaki KDX220R Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X16

132G0616

1
Out of stock

43015

CYLINDER-ASSY-MASTER,FR

43015-1588

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1109

1
Out of stock

43022

STOPPER-BRAKE,PISTON

43022-1010

1
Out of stock

43026

CAP-BRAKE

43026-1075

1
Out of stock

43028

DIAPHRAGM

43028-1067

1
Out of stock

43034

HOLDER-BRAKE

43034-1110

1
Out of stock

43059

HOSE-BRAKE,FR

43059-1812

1
Out of stock

43067

WASHER,10.5X15X1.5

43067-001

1
Out of stock

46092

LEVER-GRIP,FRONT BRAKE

46092-1186

1
Out of stock

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

1
Out of stock

92002

BOLT,OIL,L=23

92002-1888

1
Out of stock

92002A

BOLT,ADJUST

92002-1893

1
Out of stock

92009

SCREW,4MM

92009-1458

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1528

1
Out of stock

92015A

NUT,ADJUST

92015-1642

1
Out of stock

92022

WASHER

92022-1814

1
Out of stock

92037

CLAMP,BRAKE HOSE,OUTSIDE

92037-1362

1
Out of stock

92037A

CLAMP,BRAKE HOSE,INSIDE

92037-1363

1
Out of stock

92144

SPRING,RETURN

92144-1725

1
Out of stock

92150

BOLT,LEVER SET

92150-1383

1
Out of stock

92150A

BOLT

92150-1452

1
Out of stock
