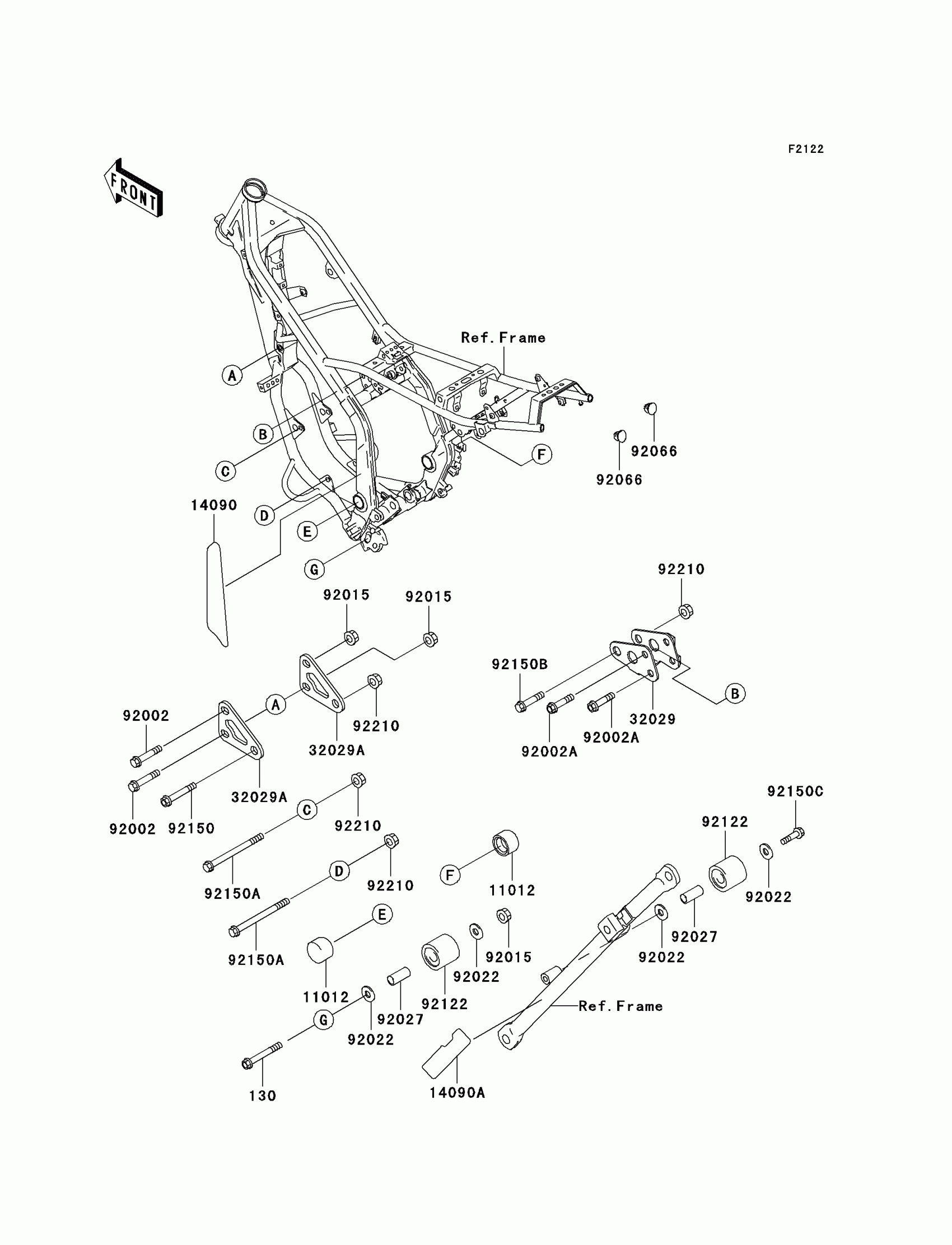

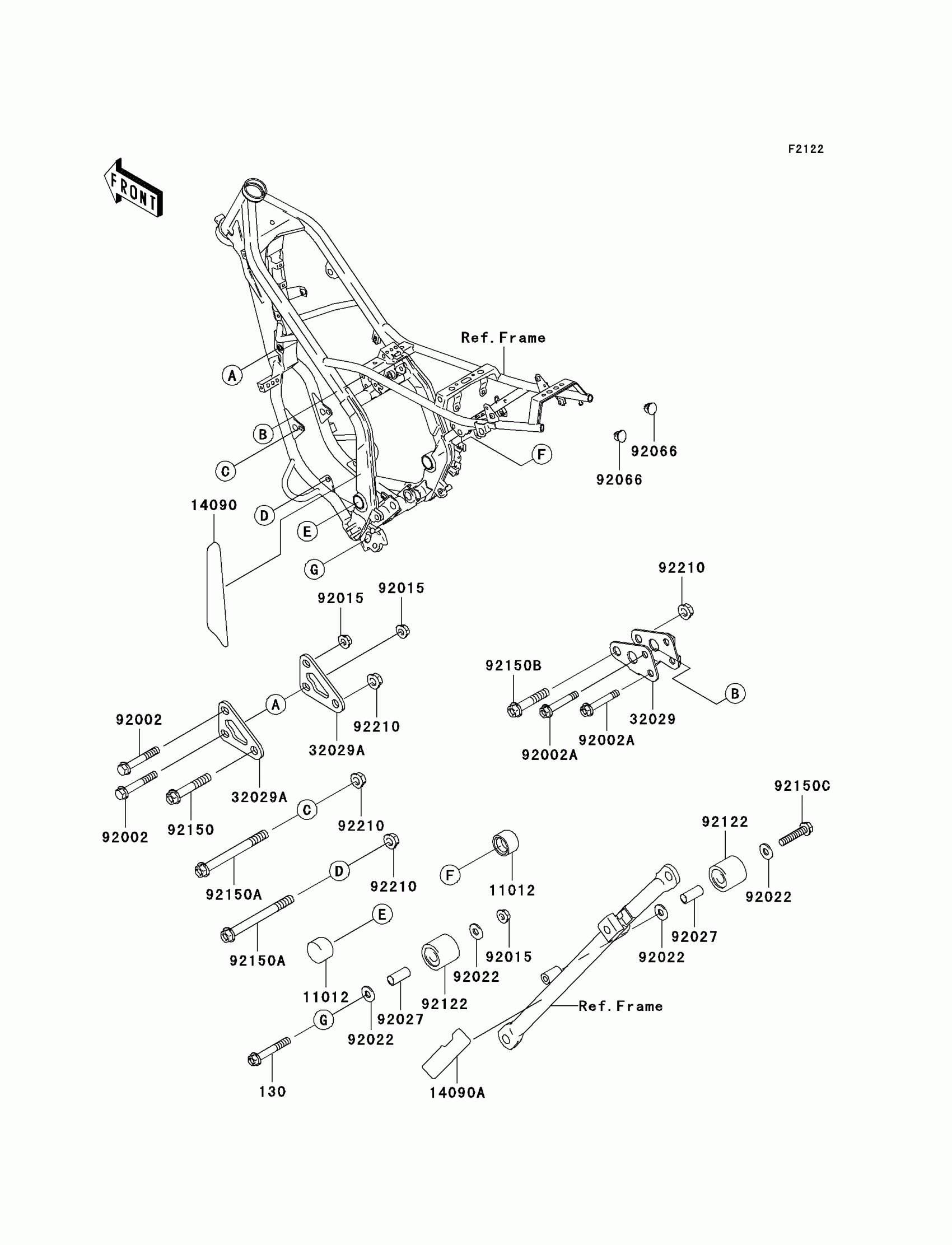

Kawasaki KDX220R Engine Mount Diagram

Description

Price

130

BOLT-FLANGED,8X55

130G0855

Unavailable

11012

CAP,AXLE NUT

11012-1591

$4.96

14090

COVER

14090-1514

$12.12

14090A

COVER

14090-1557

$7.32

32029

BRACKET-ENGINE,HEAD,RR

32029-1913

$31.77

32029A

BRACKET-ENGINE

32029-1944

$26.86

92002

BOLT

92002-1221

$7.84

92002A

BOLT,FLANGED,8X47

92002-1850

$5.52

92015

NUT,8MM

92015-1432

$6.57

92022

WASHER,8.5X20X1.6

92022-1561

$4.31

92027

COLLAR,CHAIN ROLLER

92027-1670

$7.34

92066

PLUG

92066-1093

$5.17

92122

ROLLER,CHAIN GUIDE

92122-1153

$10.65

92150

BOLT,FLANGED,10X57

92150-1227

$8.58

92150A

BOLT,FLANGED,10X105

92150-1624

$9.91

92150B

BOLT,FLANGED,10X51

92150-1719

$9.97

92150C

BOLT,FLANGED,8X40

92150-1961

$6.15

92210

NUT,LOCK,FLANGED,10MM

92210-1080

$10.28
