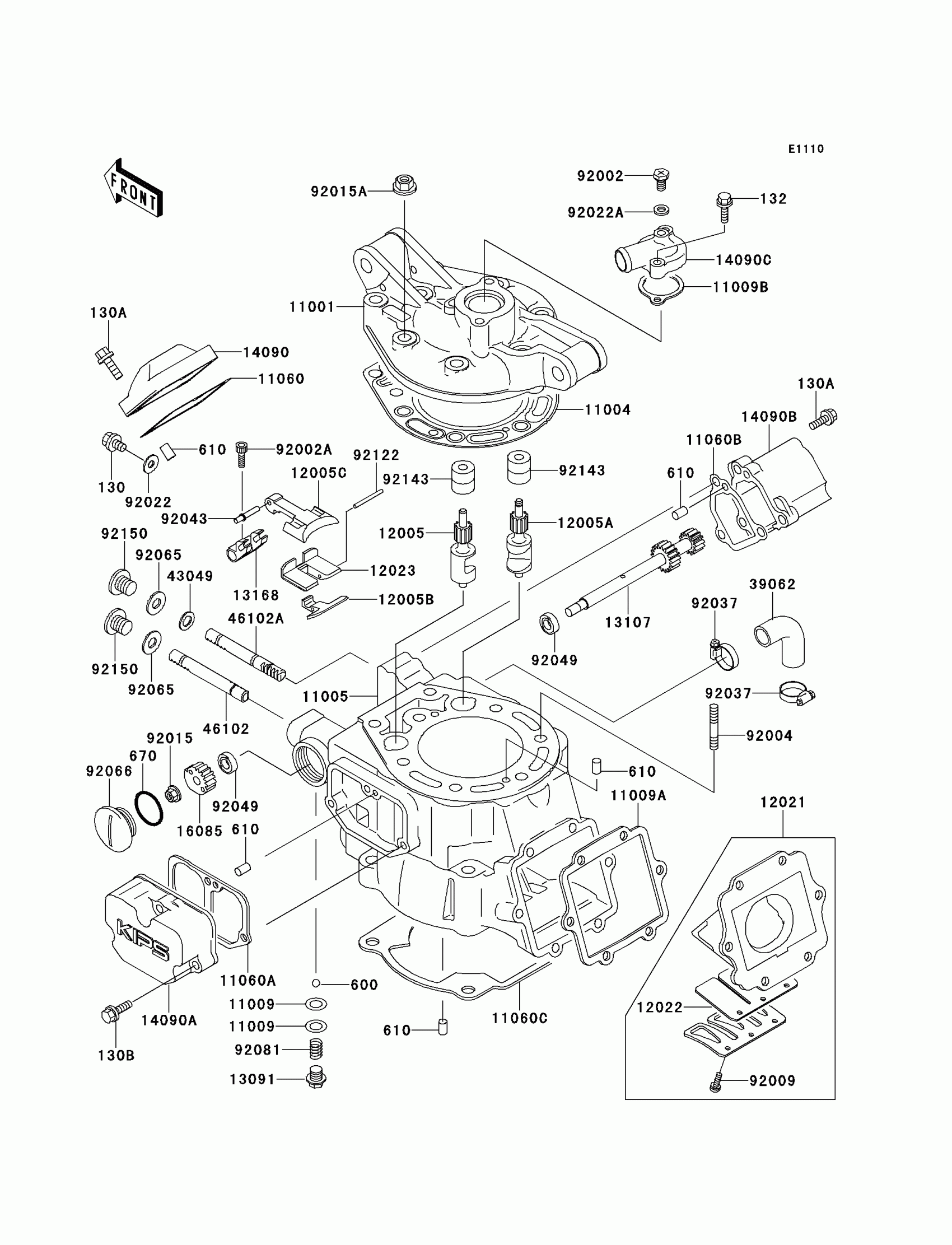

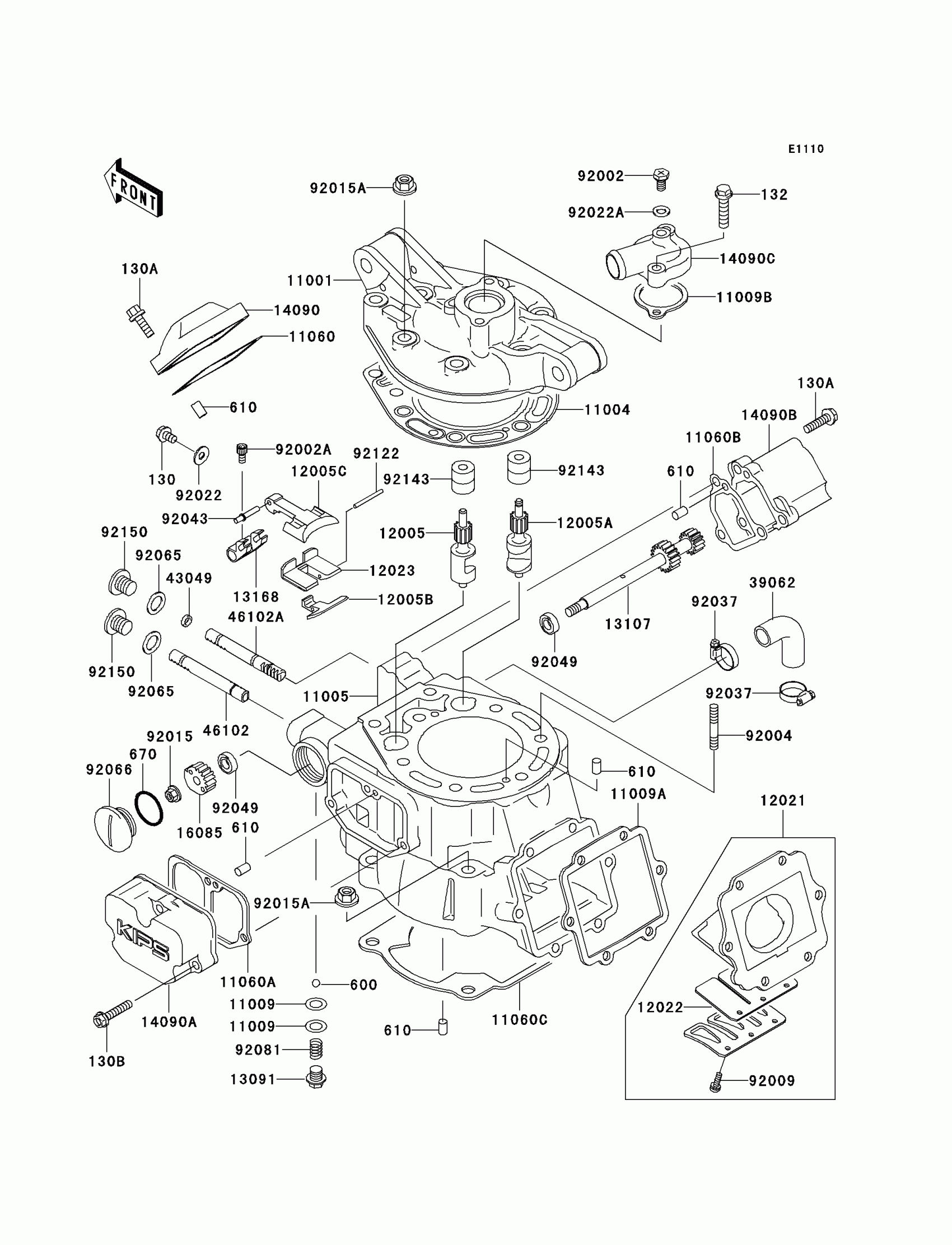

Kawasaki KDX220R Cylinder Head/Cylinder Diagram

#

Description
Price

11001

HEAD-CYLINDER

11001-1410

$314.07

11004

GASKET-HEAD

11004-1299

$39.65

11005

CYLINDER-ENGINE

11005-1744

$853.17

11009

GASKET,8.2X14X1.0

11009-1344

$3.17

11009A

GASKET,REED VALVE

11009-1941

$9.20

11009B

GASKET,ELBOW

11009-1993

$5.54

11060

GASKET,CENTER VALVE COVER

11060-1627

$10.97

11060A

GASKET,RESONATOR COVER

11060-1628

$12.20

11060B

GASKET,RH,COVER

11060-1629

$9.80

11060C

GASKET,CYLINDER BASE

11060-1659

$11.80

12005

VALVE-EXHAUST,LH

12005-1199

$104.58

12005A

VALVE-EXHAUST,RH

12005-1200

$104.58

12005B

VALVE-EXHAUST,MAIN

12005-1272

$68.82

12005C

VALVE-EXHAUST,MAIN

12005-1273

$95.05

12021

VALVE-ASSY-REED

12021-1067

$136.91

12022

VALVE-REED

12022-1063

$28.37

12023

HOLDER-VALVE,MAIN

12023-1085

$112.40

13091

HOLDER

13091-1889

$8.14

13107

SHAFT,CENTER

13107-1324

$95.81

13168

LEVER,MAIN VALVE

13168-1499

$91.49

14090

COVER,CENTER VALVE

14090-1441

$33.80

14090A

COVER,LH RESONATOR

14090-1442

$13.82

14090B

COVER,RH

14090-1443

$15.24

14090C

COVER,THERMOSTAT

14090-1534

$29.01

16085

GEAR,LH VALVE ROD

16085-1274

$122.90

39062

HOSE-COOLING,PUMP-CYLINDER

39062-1419

$16.56

43049

PACKING

43049-1076

$6.10

46102

ROD,LH

46102-1383

$51.46

46102A

ROD,RH

46102-1384

$51.46

92002

BOLT,6X10

92002-1222

$8.10

92002A

BOLT,SOCKET,4X8

92002-1403

$3.32

92004

STUD,8X33

92004-1197

$4.65

92009

SCREW,REED VALVE

92009-1014

$2.49

92015

NUT,FLANGED,6MM,BLACK

92015-1386

Unavailable

92015A

NUT,FLANGED,8MM

92015-1406

$4.45

92022

WASHER,5.2X13X1

92022-1380

$4.31

92022A

WASHER,6.2X11X1

92022-304

$3.65

92037

CLAMP,COOLING HOSE

92037-1589

$18.57

92043

PIN,MAIN VALVE

92043-1470

$4.92

92049

SEAL-OIL,SD088144

92049-1238

$10.46

130

BOLT-FLANGED,5X8

130Y0508

$1.92

130A

BOLT-FLANGED,5X20

130Y0520

$4.35

130B

BOLT-FLANGED,5X25

130Y0525

$4.66

132

BOLT-FLANGED-SMALL,6X25

132Y0625

$5.02

600

BALL-STEEL,3/16

600A0600

$1.07

610

ROLLER,4X8

610A0408

$4.31

670

O RING,22MM

670B2022

$4.69

92065

GASKET,10.5X16X1

92065-058

$3.96

92066

PLUG

92066-1414

Unavailable

92081

SPRING

92081-1527

$4.45

92122

ROLLER,3X31.8

92122-1187

$4.39

92143

COLLAR

92143-1725

$12.32

92150

BOLT,10X10

92150-1867

$5.59
