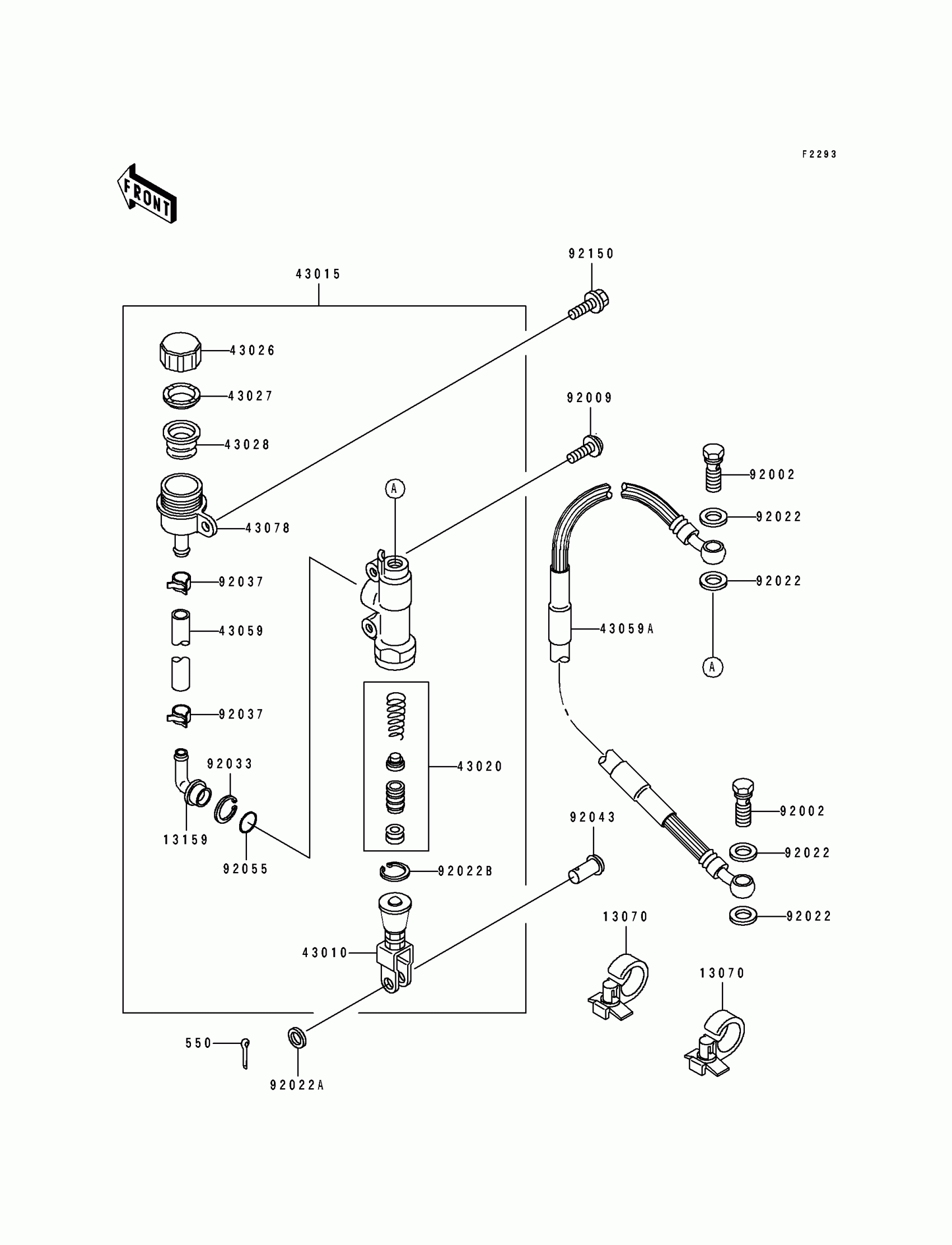

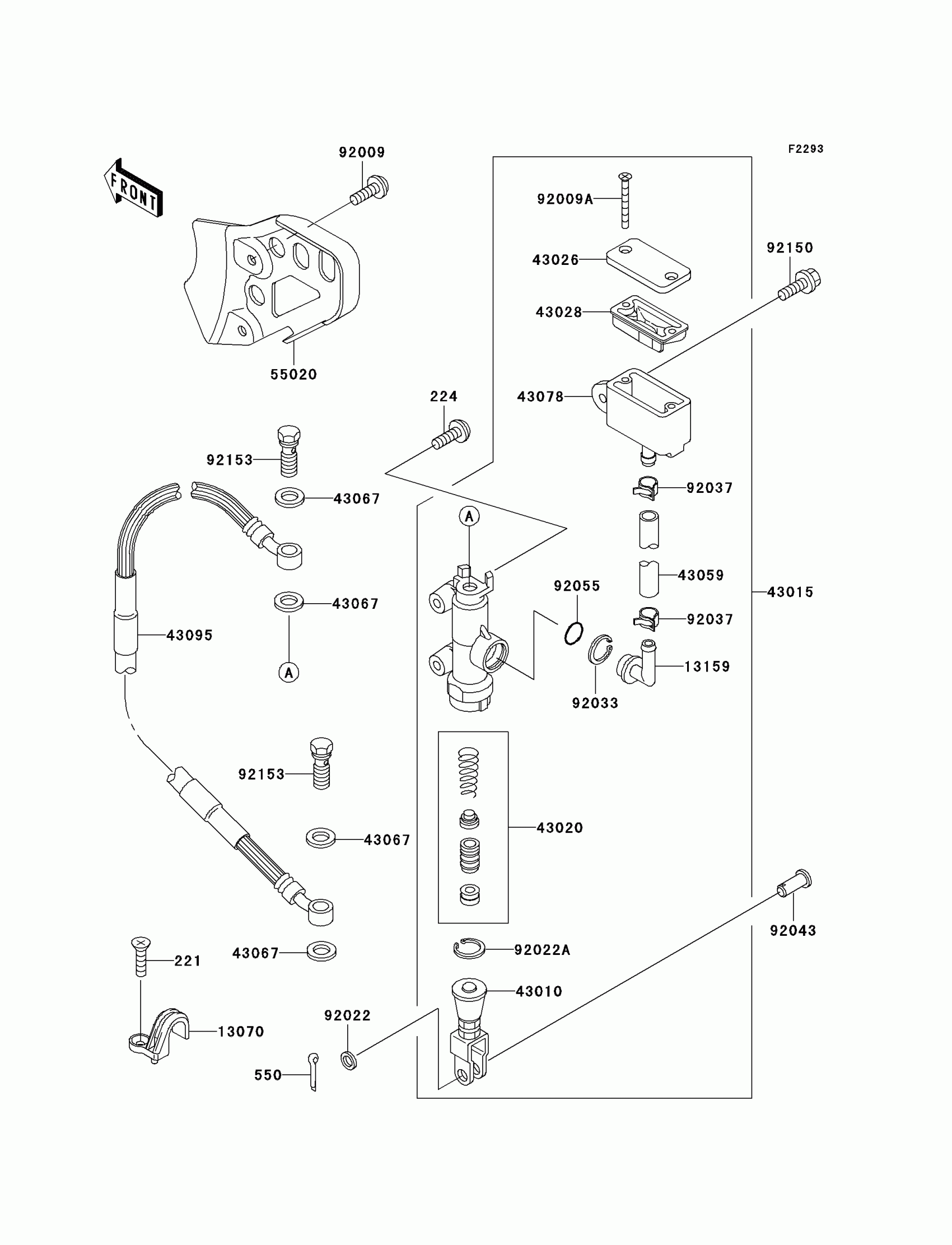

Kawasaki KDX200 Rear Master Cylinder Diagram

Description

Price

13070

GUIDE,HOSE

13070-1186

Unavailable

13159

CONNECTOR

13159-1056

$14.10

43010

ROD-ASSY-BRAKE

43010-1063

Unavailable

43015

CYLINDER-ASSY-MASTER,RR

43015-1388

$279.10

43020

PISTON-COMP-BRAKE

43020-1063

$65.22

43026

CAP-BRAKE

43026-1058

$33.60

43027

PLATE-DIAPHRAGM

43027-1052

$4.33

43028

DIAPHRAGM

43028-1060

$17.44

43059

HOSE-BRAKE,RR MASTER CYLINDER

43059-1380

$35.72

43059A

HOSE-BRAKE,RR

43059-1514

Unavailable

43078

RESERVOIR

43078-1068

$28.25

92002

BOLT,OIL,L=23

92002-1888

$5.48

92009

SCREW,6X14,WHITE

92009-1287

$2.55

92022

WASHER,10.5X15X1.5

43067-001

$2.15

92022A

WASHER,8.5X13X1

92022-1028

$3.92

92022B

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$4.96

92037

CLAMP

92037-1710

$9.91

92043

PIN,8MM

92043-1303

$3.90

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92150

BOLT,6X14

92150-1340

$5.07

550

PIN COTTER 2.0X15

550D2015

$1.04
