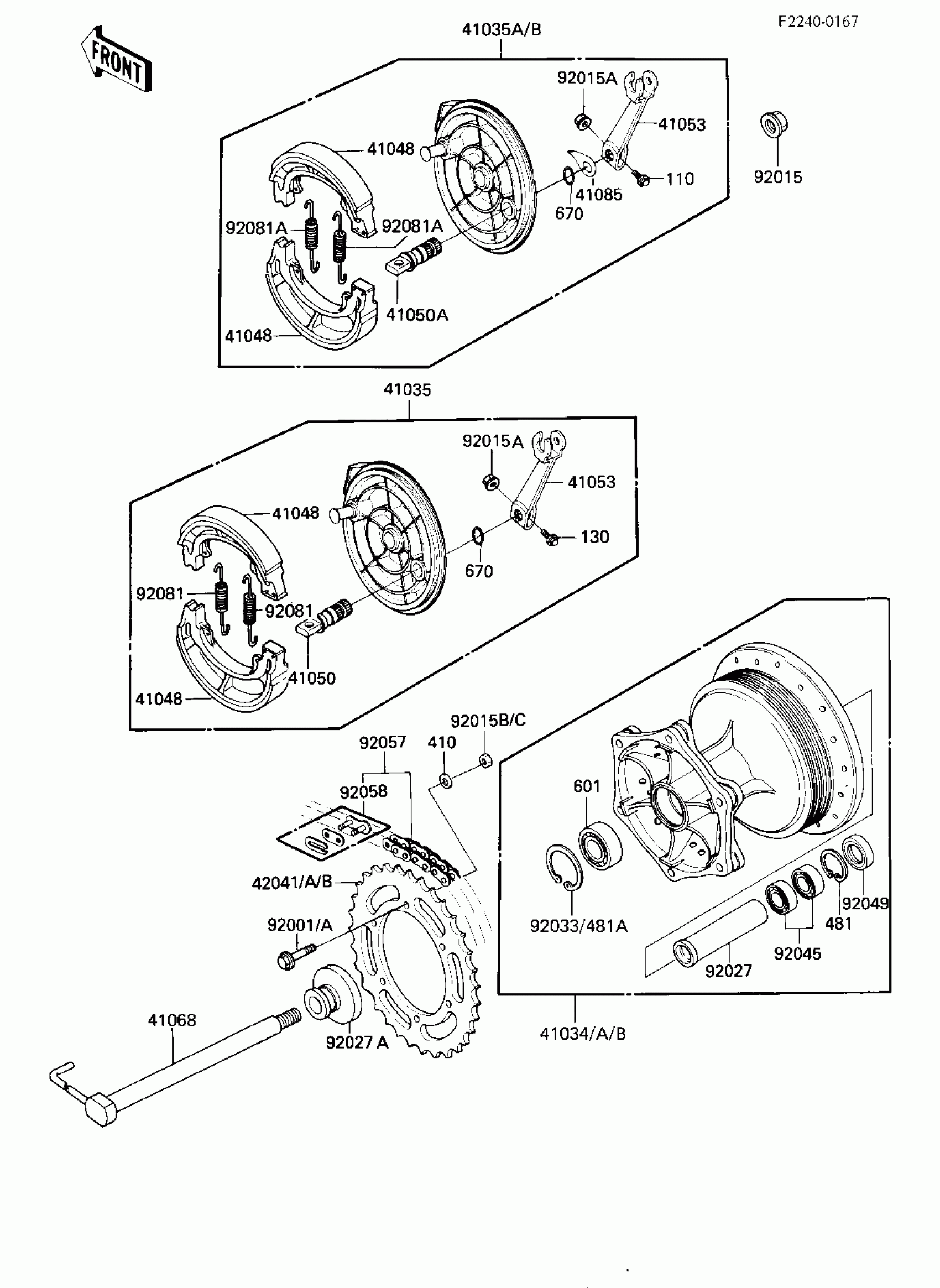

Kawasaki KDX200 REAR HUB/BRAKE/CHAIN Diagram

#

Description
Price

41034B

DRUM-ASSY,REAR BRAKE

41034-1125

$371.11

41035B

PANEL-ASSY-BRAKE,RR

41035-1186

$358.74

41048

SHOE-BRAKE

42019-013

Unavailable

41050A

CAM-BRAKE

41050-1053

$44.75

41053

LEVER-BRAKE CAM,RR

41053-1033

$38.41

41068

AXLE,RR

41068-1074

$68.04

41085

INDICATOR,BRAKE SHOE

41085-003

$14.51

42041

SPROCKET-HUB,48T

42041-1125

$134.39

42041B

SPROCKET-HUB,49T

42041-1183

$115.46

92001

BOLT,HEX HEAD,8X32

92001-1040

Unavailable

92015

NUT,16MM

92015-1015

Unavailable

92015A

NUT,FLANGED,6MM

92015-1078

Unavailable

92015C

NUT,8MM

92015-1143

$0.65

92027

COLLAR,REAR DRUM,L=10

92027-1459

$90.35

92027A

COLLAR,AXLE

92027-1531

$52.74

92033

RING-SNAP,42MM

92033-1041

$6.16

92045

BEARING-BALL,6903/2A

92045-1053

$26.91

92049

SEAL-OIL,BJN22325

92049-1103

Unavailable

92057

CHAIN,DRIVE,DID520KX112L

92057-1117

Unavailable

92058

JOINT-CHAIN

92058-1051

Unavailable

92081A

SPRING,BRAKE SHOE

92081-1766

$8.03

110

BOLT-UPSET

112G0630

$1.36

481

CIRCLIP-TYPE-C,30MM

481J3000

$1.42

601

BEARING-BALL,#6004UC3

601B6004U

$37.11

670

O RING,12MM

670B2012

$3.23
