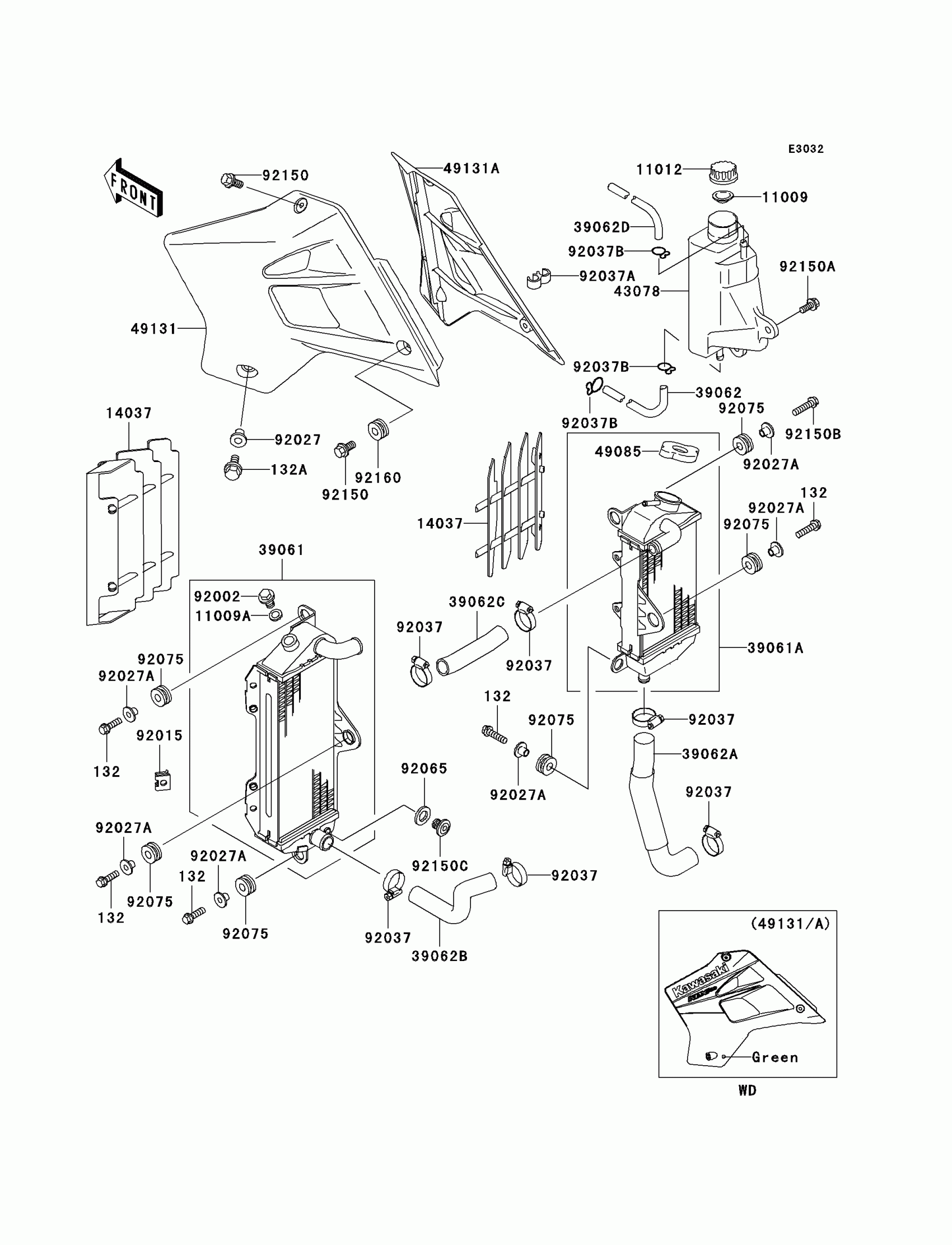

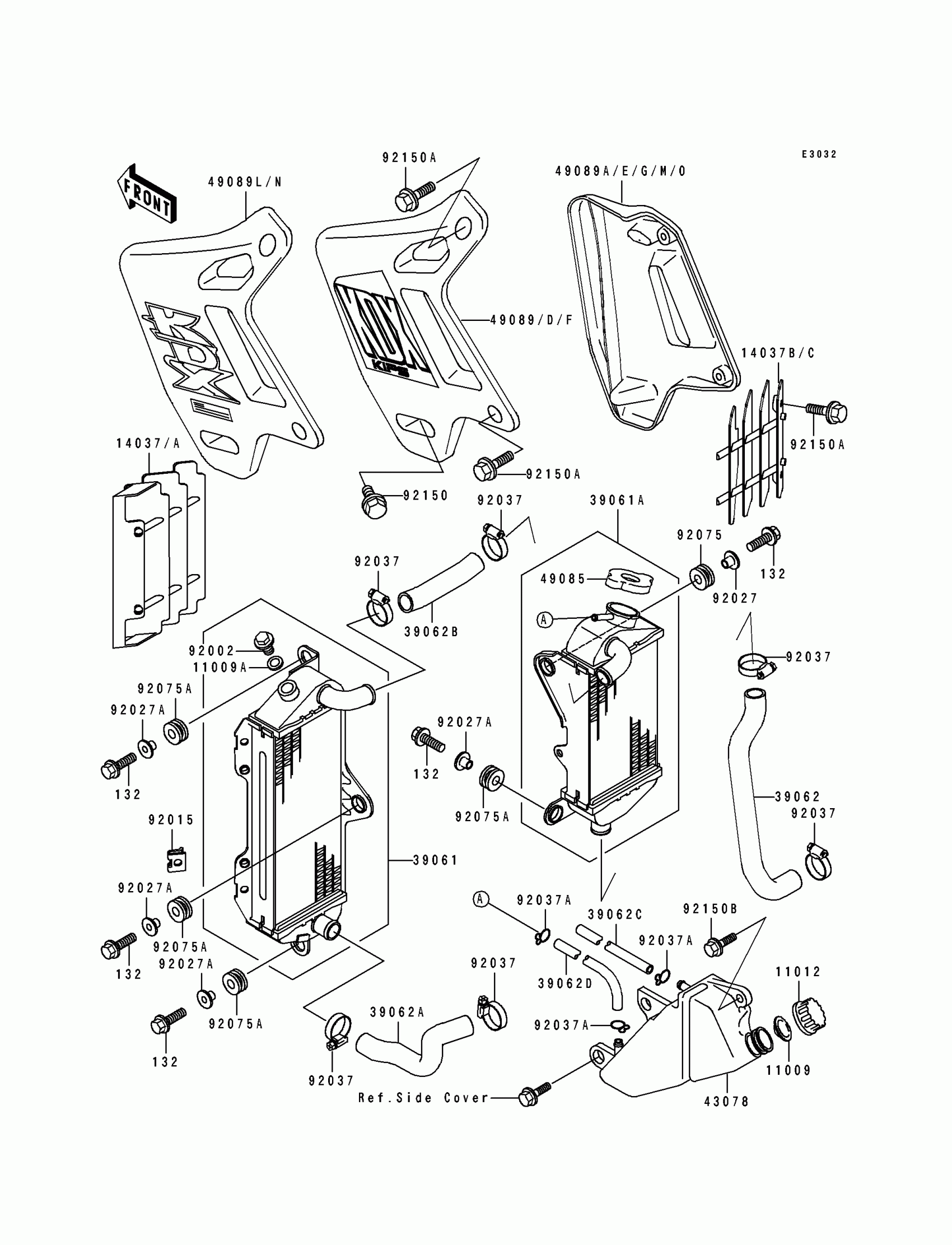

Kawasaki KDX200 Radiator Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11009A

GASKET,DRAIN BOLT

11009-1152

$7.44

11012

CAP

11012-1084

$1.25

14037

SCREEN,P.WHITE

14037-1099-6F

$22.56

14037A

SCREEN,L.GREEN

14037-1099-6W

$22.52

14037B

SCREEN,RH,P.WHITE

14037-1121-6F

$21.22

14037C

SCREEN,RH,L.GREEN

14037-1121-6W

Unavailable

39061

RADIATOR-ASSY,LH

39061-1127

$566.38

39061A

RADIATOR-ASSY

39061-1131

$593.46

39062

HOSE-COOLING,RADIATOR-PUMP

39062-1300

Unavailable

39062A

HOSE-COOLING,HEAD-RADIATOR

39062-1301

Unavailable

39062B

HOSE-COOLING,RADIATOR,LH-RH

39062-1302

Unavailable

39062C

HOSE-COOLING,5X9X420

39062-1315

$13.07

39062D

HOSE-COOLING,5X9X1050

39062-1334

$13.07

43078

RESERVOIR

43078-1095

Unavailable

49085

CAP-ASSY-PRESSURE

49085-1003

$33.19

49089L

SHROUD-ENGINE,LH,L.GREEN

49089-5111-6W

$132.32

49089M

SHROUD-ENGINE,RH,L.GREEN

49089-5112-6W

$132.32

49089N

SHROUD-ENGINE,LH,P.WHITE

49089-5127-6F

$123.90

49089O

SHROUD-ENGINE,RH,P.WHITE

49089-5128-6F

$81.65

92002

BOLT,RADIATOR DRAIN

92002-1682

$16.61

92015

NUT

92015-1487

$3.64

92027

COLLAR

92027-1045

$4.18

92027A

COLLAR

92027-194

$4.18

92037

CLAMP,COOLING HOSE

92037-1589

$14.01

92037A

CLAMP

92037-1712

$3.81

92075

DAMPER

92075-1185

$4.17

92075A

DAMPER RUBBER,RR FENR

92075-209

$3.57

92150

BOLT,FLANGED,6X14,WASHER

92150-1392

$3.66

92150A

BOLT,6X12

92150-1435

$3.29

92150B

BOLT,FLANGED,6X14

92150-1504

$3.66

132

BOLT-FLANGED-SMALL

132G0620

Unavailable
