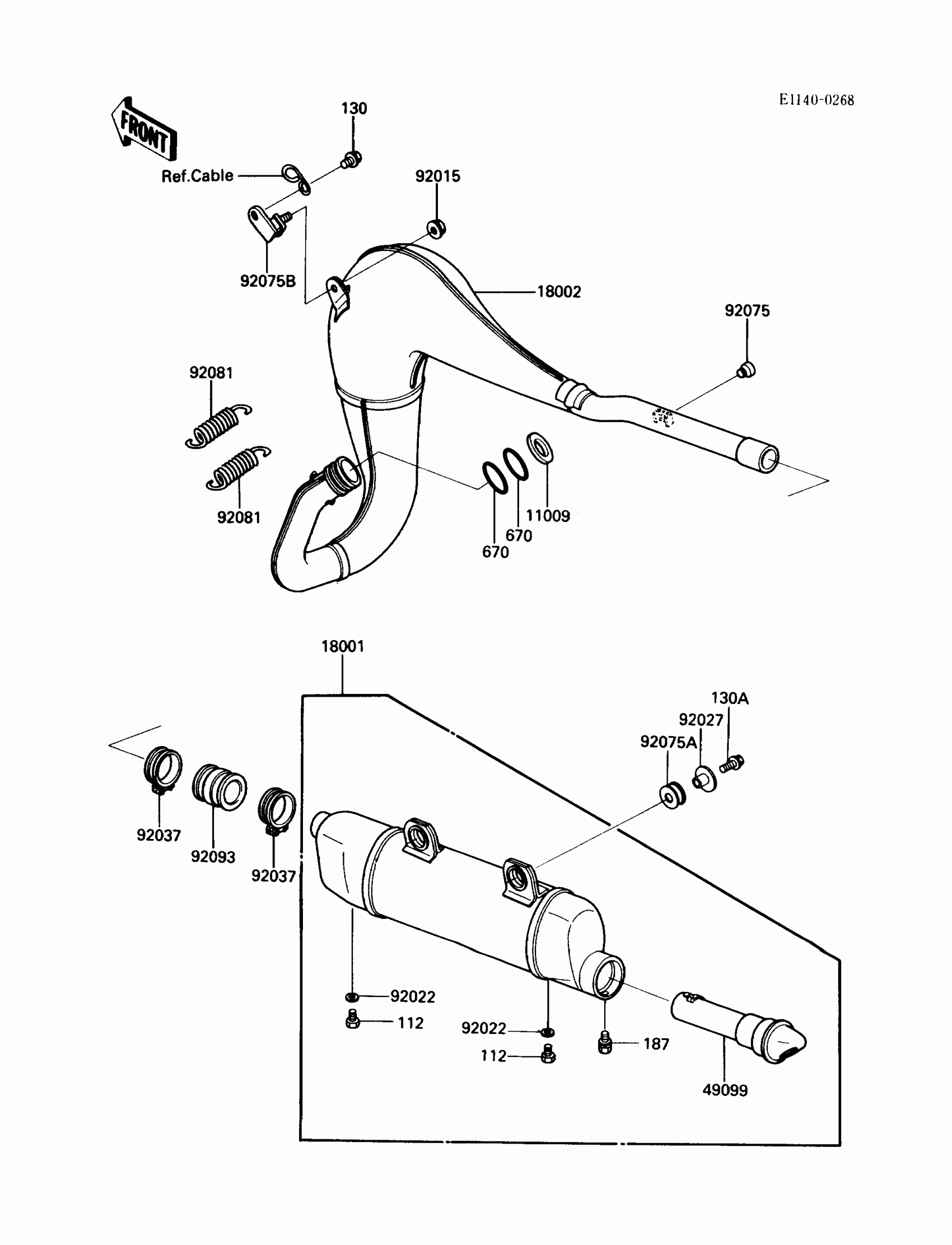

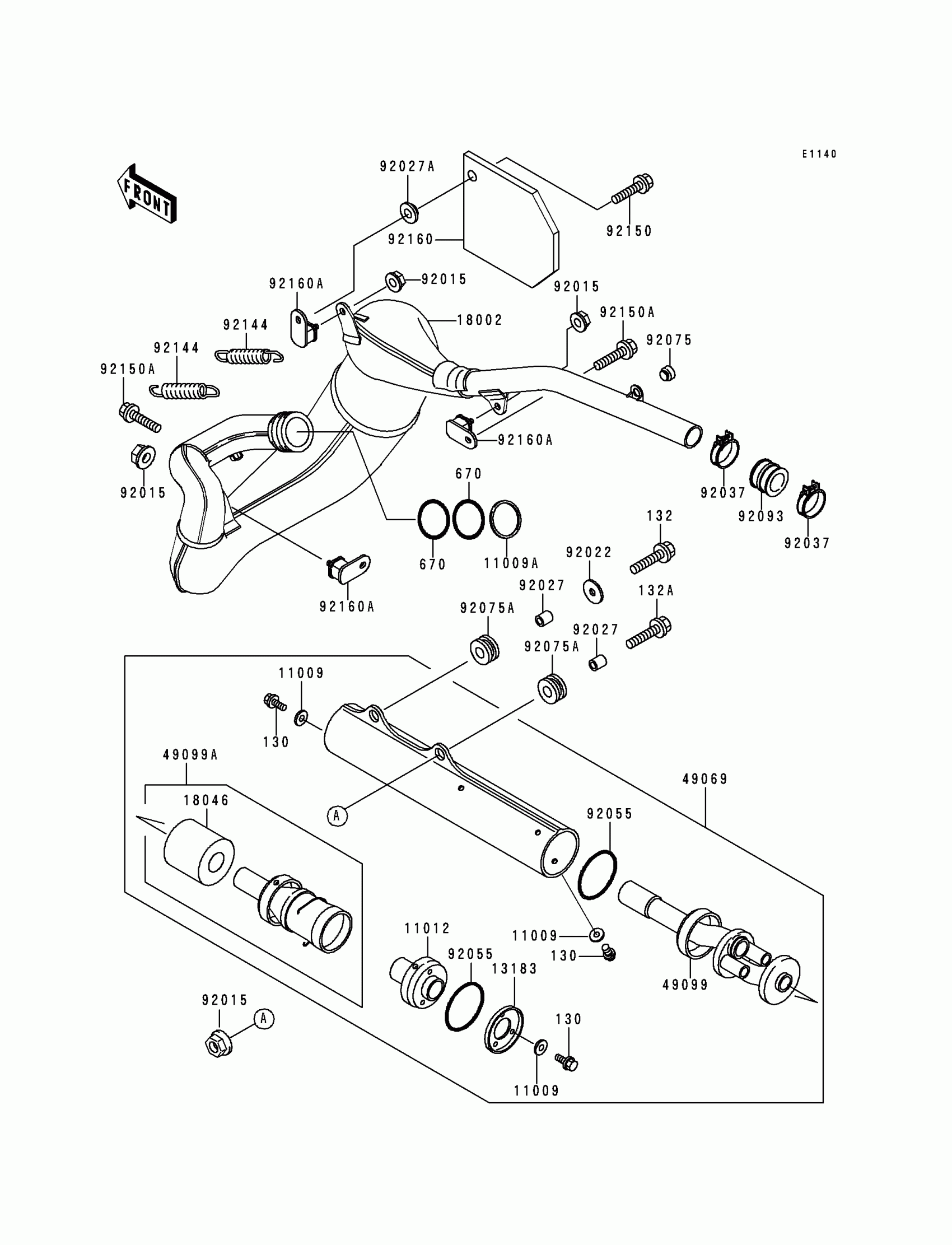

Kawasaki KDX200 Muffler(s) Diagram
#
Description
Price
130
BOLT-FLANGED,5X10
130G0510
$1.60
132
BOLT-FLANGED-SMALL
132G0625
Unavailable
132A
BOLT-FLANGED-SMALL,6X30
132G0630
$2.48
670
O RING,39MM
670E3039
$15.89
11009
GASKET,5.5X13X1.2
11009-1881
Unavailable
11009A
GASKET,EXHAUST PIPE
11009-1995
$9.03
11012
CAP,TAIL PIPE
11012-1739
Unavailable
13183
PLATE,TAIL PIPE
13183-1569
Unavailable
18002
BODY-COMP-MUFFLER
18002-1933
$449.85
18046
WOOL,BAFFLE PIPE
18046-1115
Unavailable
49069
MUFFLER-ASSY
49069-1137
$429.67
49099
BAFFLE-PIPE MUFFLER,FR
49099-1286
Unavailable
49099A
BAFFLE-PIPE MUFFLER,RR
49099-1287
$110.38
92015
NUT,FLANGED,6MM
92015-1078
Unavailable
92022
WASHER,6.5X22X1.6
92022-237
$3.92
92027
COLLAR,6.8X10X11.5
92027-1210
$10.28
92027A
COLLAR,L=5.6
92027-1933
$5.78
92037
CLAMP,CARBURETOR,40MM
92037-1129
$9.58
92055
RING-O,61.6X3.5
92055-1431
Unavailable
92075
DAMPER
92075-1598
$8.58
92075A
DAMPER,MUFFLER FITTING
92075-1857
$5.96
92093
SEAL,MUFFLER
92093-1085
$41.75
92144
SPRING
92144-1035
$10.53
92150
BOLT,6X20
92150-1339
$4.39
92150A
BOLT,6X14
92150-1340
$5.07
92160
DAMPER,HEAT
92160-1145
Unavailable
92160A
DAMPER,MUFFLER,FR
92160-1176
$28.25
