1985 Kawasaki KDX200 Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1985 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

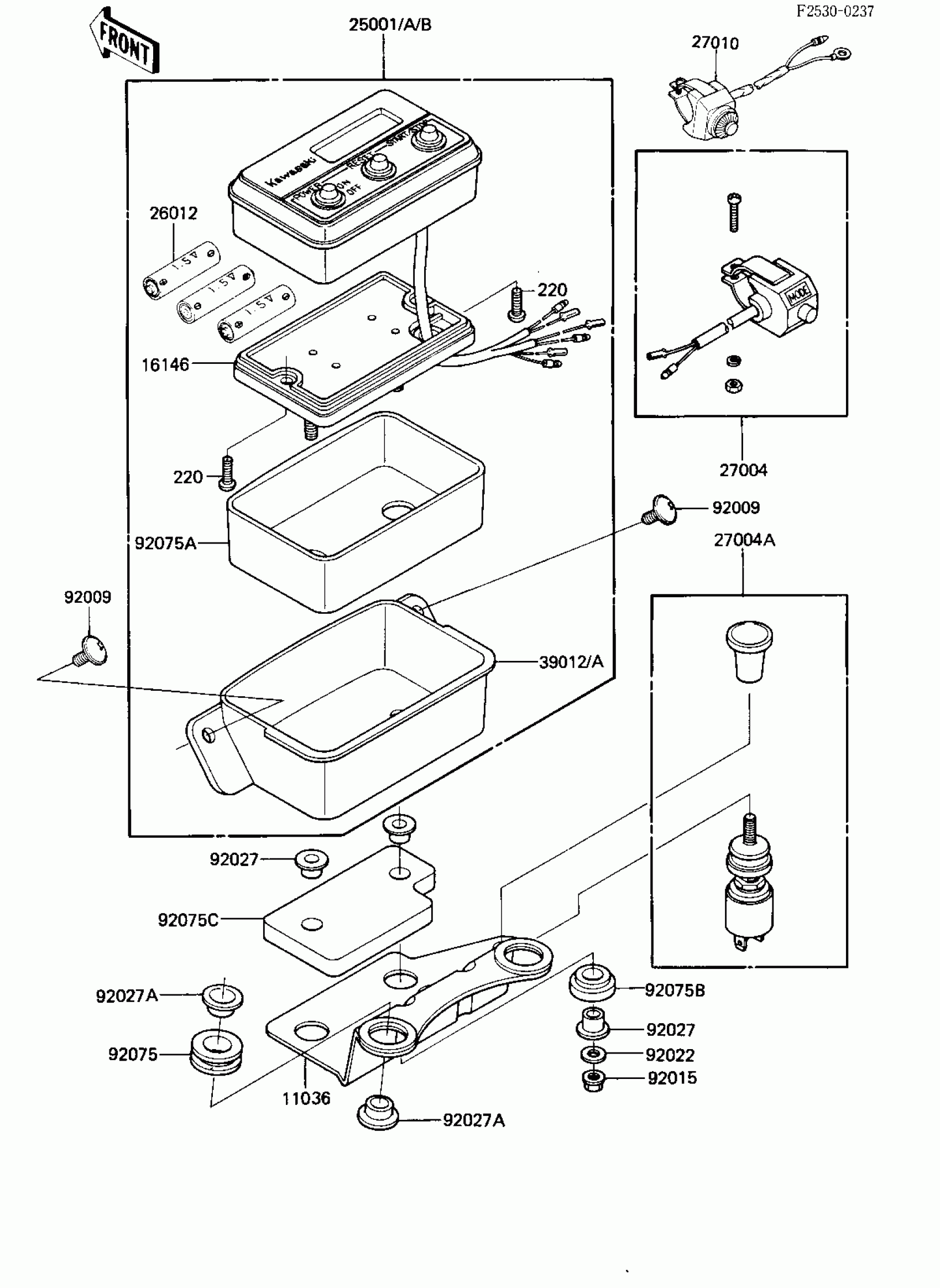

1985 Kawasaki KDX200 Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11036

BRACKET-A,METER

11036-1781

1
Out of stock

16146

COVER-ASSY,METER

16146-1012

1
Out of stock

25001A

METER-ASSY,MILE,L.GRE

25001-1412-6W

1
Out of stock

25001B

METER-ASSY,KILOMETER (Canada)

25001-1431-6W

1
Out of stock

27004A

SWITCH,HEAD LAMP

27004-4001

1
Out of stock

39012A

CASE-STORAGE,METER,L.

39012-1015-6W

1
Out of stock

92009

SCREW,6X10,WHITE

92009-1286

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-125

1
Out of stock

92027

COLLAR

92027-153

1
Out of stock

92027A

COLLAR,METER BRACKET

92027-1585

1
Out of stock

92075

DAMPER RUBB TANK FRNT

92075-013

1
Out of stock

92075A

DAMPER,METER

92075-1433

1
Out of stock

92075B

DAMPER,METER BRACKET

92075-1485

1
Out of stock

92075C

DAMPER,METER BRACKET

92075-1485

1
Out of stock

220

SCREW PAN HEAD 4X16

220B0416

1
Out of stock
