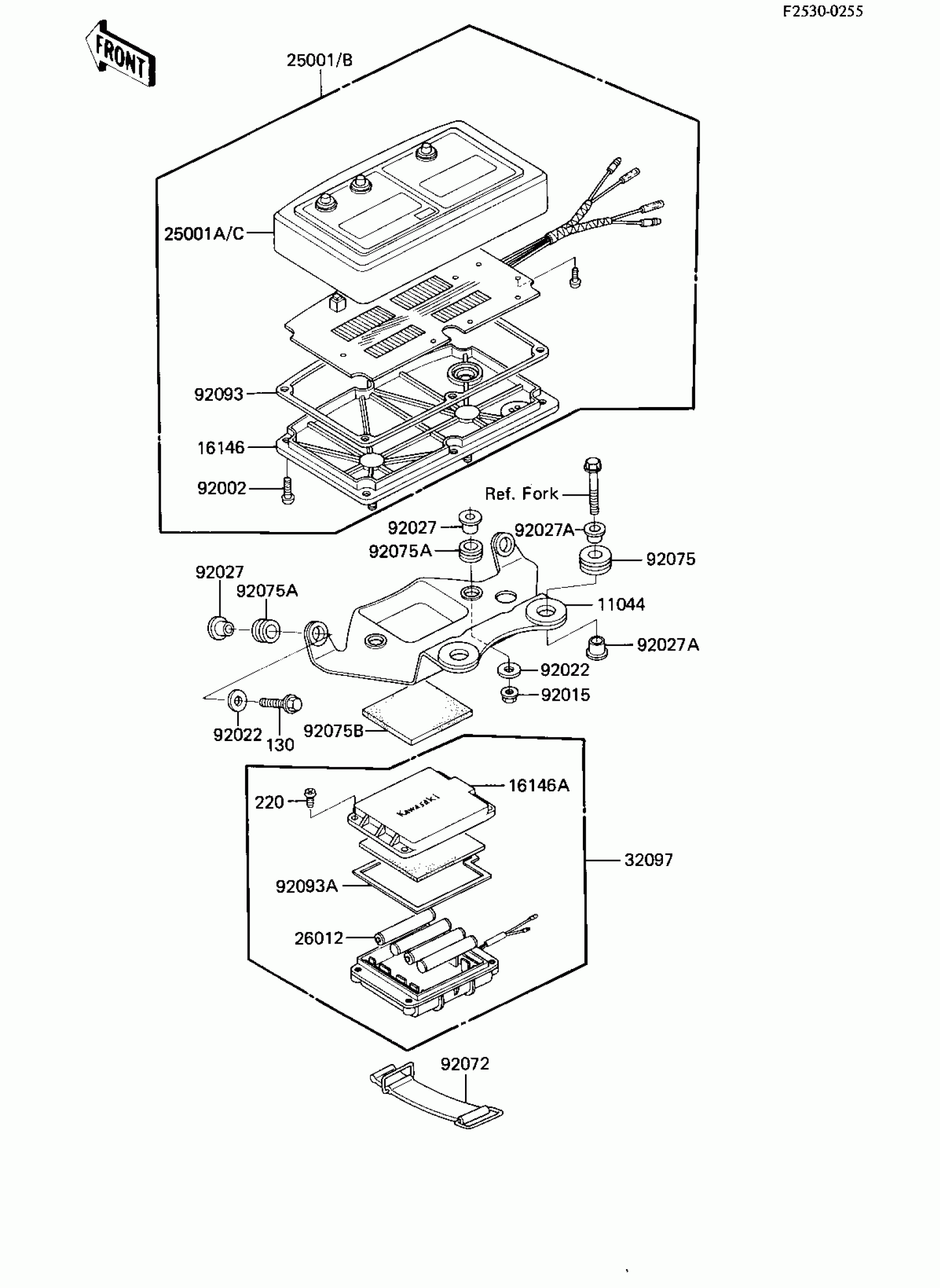

Kawasaki KDX200 METER (KDX200-A3) Diagram

#

Description
Price

11044

BRACKET,METER

11043-1898

Unavailable

16146

COVER-ASSY,METER

16146-1055

$22.46

16146A

COVER-ASSY,BATTERY CASE

16146-1056

$12.66

25001

METER-ASSY,TRIP MILE&TIME

25001-1576

$700.76

25001A

METER-ASSY

25001-1577

$40.04

25001B

METER-ASSY,TRIP(KM)&TIME

25001-1578

Unavailable

25001C

METER-ASSY

25001-1579

Unavailable

32097

CASE-BATTERY

32097-1070

$72.71

92002

BOLT,4X14

92002-1441

$1.98

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,6.5X20X1.6

92022-125

$1.25

92027

COLLAR

92027-1045

$4.37

92027A

COLLAR,METER BRACKET

92027-1585

Unavailable

92072

BAND,TOOL

92072-1176

$12.34

92075

DAMPER RUBB TANK FRNT

92075-013

$3.92

92075A

DAMPER

92075-1028

$3.72

92075B

DAMPER,BATTERY CASE

92075-1668

$13.03

92093

SEAL,METER

92093-1178

$8.41

92093A

SEAL,BATTERY CASE

92093-1179

$5.15

130

BOLT-FLANGED,6X20

130G0620

Unavailable

220

SCREW,4X8

92009-1324

$1.46
