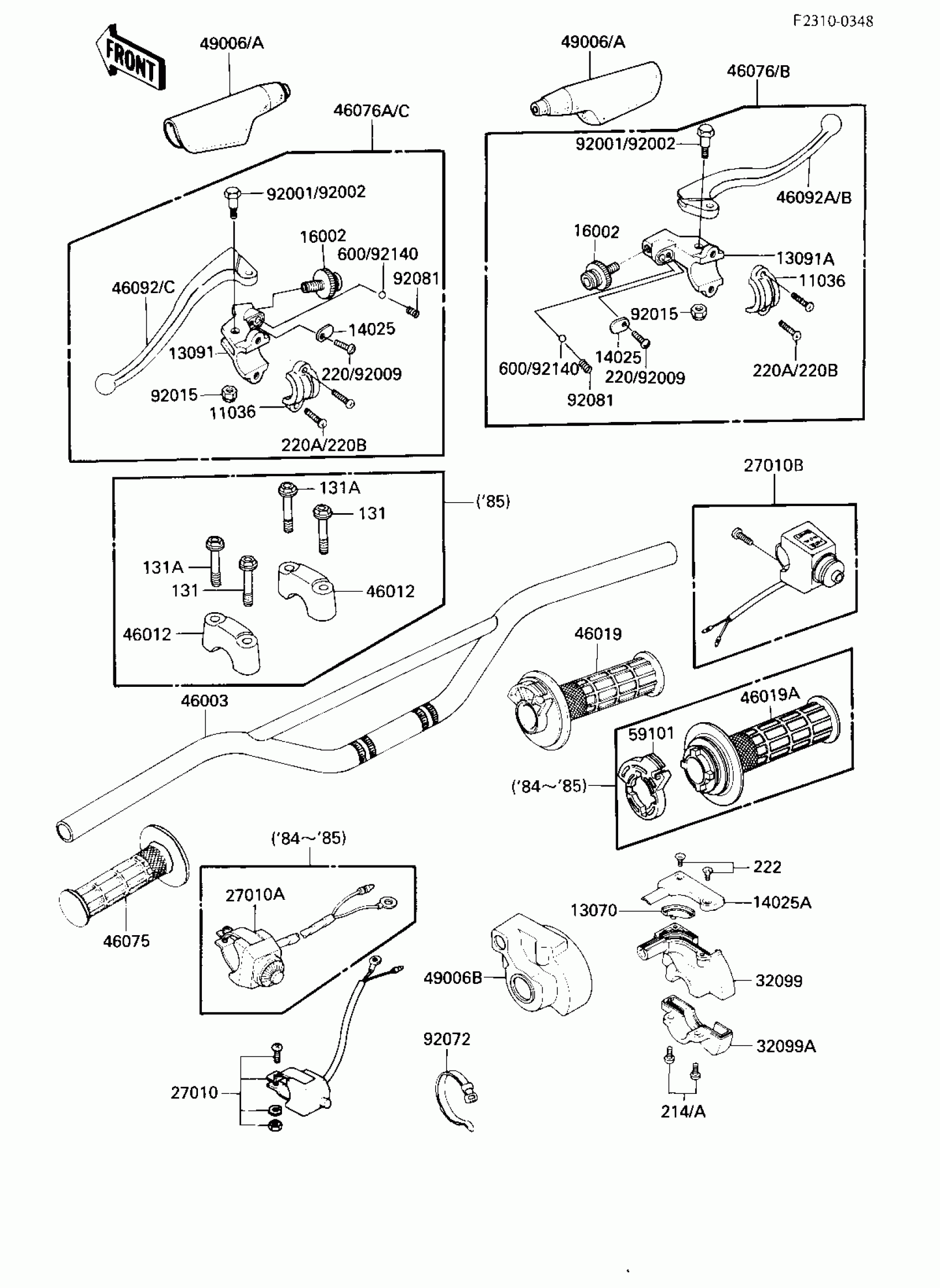

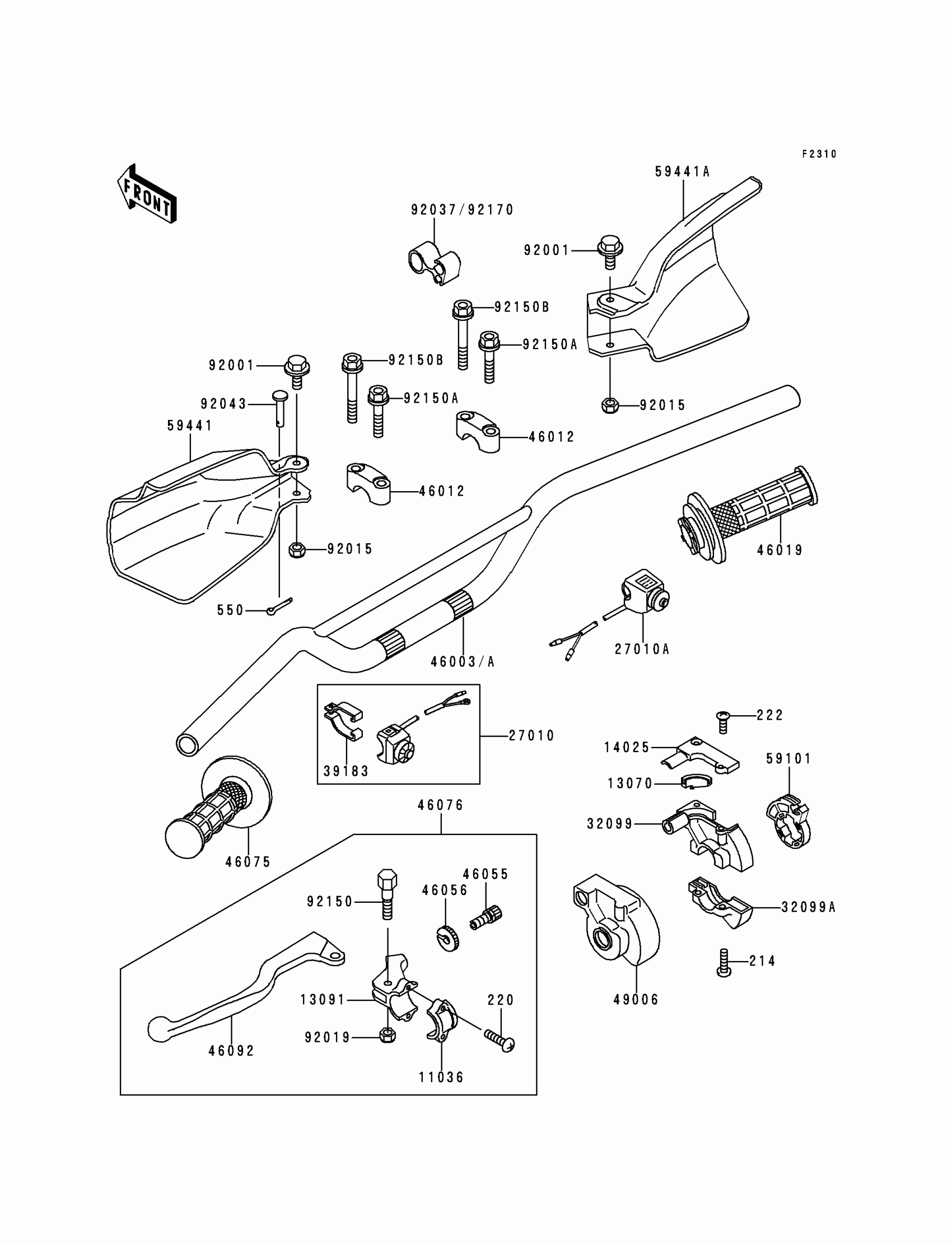

Kawasaki KDX200 Handlebar Diagram
#
Description
Price
214
SCREW-PAN+-,5X18
214C0518
$3.69
220
SCREW-PAN-CROS
220C0514
$1.81
222
SCREW-CSK-RD-CROS,4X12
222E0412
$2.63
550
PIN COTTER 1.2X10
550D1210
$2.65
11036
BRACKET-A,LEVER HOLDER
11036-1297
Unavailable
13070
GUIDE,THROTTLE PEACE
13070-1073
$6.89
13091
HOLDER,CLUTCH LEVER
13091-1131
$46.92
14025
COVER,THROTTLE CASE UPP
14025-1646
$9.36
27010
SWITCH,ENGINE STOP
27010-1161
$56.15
27010A
SWITCH,LIGHTING
27010-1279
$76.66
32099
CASE,THROTTLE UPP
32099-1036
$35.36
32099A
CASE,THROTTLE LWR
32099-1044
Unavailable
39183
BAND-ASSY,SWITCH
39183-1059
$13.02
46003A
HANDLE,SILVER NO.25
46003-1376-CE
$119.14
46012
HOLDER-HANDLE,UPP
46012-1191
$33.90
46019
GRIP-ASSY,THROTTLE
46019-1054
$35.69
46055
SCREW,CABLE ADJUST,8MM
46055-009
$19.07
46056
NUT,CABLE ADJUST
46056-006
$8.94
46075
GRIP,LH
46075-1024
$25.66
46076
LEVER-ASSY-GRIP,CLUTCH
46076-1163
$53.43
46092
LEVER-GRIP,CLUTCH
46092-1110
$26.28
49006
BOOT,THROTTLE CASE
49006-1097
$17.98
59101
REEL,THROTTLE
59101-1103
$11.80
59441
COVER-HANDLE,LH,L.GREEN
59441-1094-6W
$26.13
59441A
COVER-HANDLE,RH,L.GREEN
59441-1098-6W
Unavailable
92001
BOLT,FLANGED,6X10
92001-1034
$10.28
92015
NUT,LOCK,FLANGED,6MM
92015-1603
$4.69
92019
NUT,LOCK,6MM
92019-008
$4.26
92043
PIN,5X27.5
92043-1434
$9.21
92150
BOLT
92150-1291
$24.02
92150A
BOLT,FLANGED,8X30
92150-1455
Unavailable
92150B
BOLT,FLANGED,8X45
92150-1456
Unavailable
92170
CLAMP,BRAKE HOSE
92170-1255
$9.05
