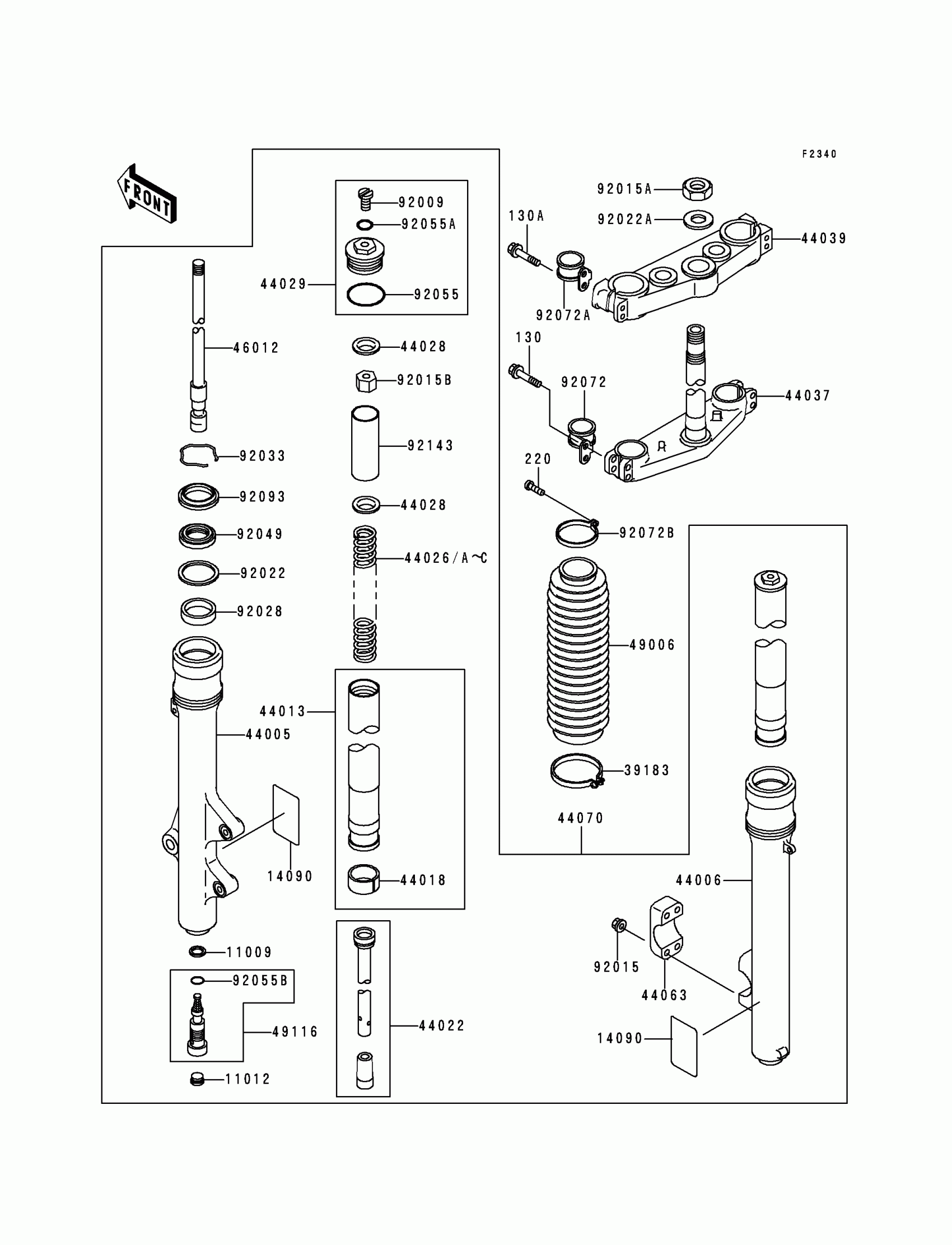

Kawasaki KDX200 Front Fork(KDX200-H1-H3) Diagram

#

Description
Price

11009

GASKET,FORK CYLINDER BOLT

11009-1592

$6.16

11012

CAP,FORK CYLINDER

11012-1381

$6.11

14090

COVER

14090-1564

Unavailable

39183

BAND-ASSY,BOOT

39183-1060

$11.07

44005

PIPE-LEFT FORK OUTER

44005-1345

$435.87

44006

PIPE-RIGHT FORK OUTER

44006-1343

Unavailable

44013

PIPE-FORK INNER

44013-1403

$517.29

44018

PISTON-FORK,INNER PIPE

44018-1056

$28.45

44022

CYLINDER-FORK

44022-1299

Unavailable

44026

SPRING-FRONT FORK,K=0.35

44026-1570

Unavailable

44026A

SPRING-FRONT FORK,K=0.34

44026-1574

$105.65

44026B

SPRING-FRONT FORK,K=0.36

44026-1575

$96.18

44026C

SPRING-FRONT FORK,K=0.37

44026-1576

$96.18

44028

GUIDE-FORK SPRING

44028-1010

$11.30

44029

SEAT-FORK SPRING

44029-1152

$67.65

44037

HOLDER-FORK UNDER

44037-1331

Unavailable

44039

HOLDER-FORK UPPER

44039-1256

$325.96

44063

HOLDER-FRONT AXLE

44063-1056

$55.31

44070

DAMPER-ASSY,FORK SET

44070-1369

Unavailable

46012

ROD,FORK

46012-1376

Unavailable

49006

BOOT,FORK,J.S.VIOLET

49006-1296-VW

$102.37

49116

VALVE-ASSY,FORK

49116-1132

$195.65

92009

SCREW

92009-1568

$7.21

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92015A

NUT,STEERING STEM,22MM

92015-1653

$16.69

92015B

NUT

92015-1839

$19.64

92022

WASHER

92022-1299

$8.58

92022A

WASHER,STEERING STEM

92022-1873

$7.45

92028

BUSHING

92028-1581

$21.80

92033

RING-SNAP

92033-1077

$4.96

92049

SEAL-OIL,FORK OUTER TUBE

92049-1316

$28.98

92055

RING-O

92055-1123

$6.22

92055A

RING-O,2.8X6.6X1.9

92055-1441

$4.33

92055B

RING-O,FORK VALVE

92055-1502

$7.45

92072

BAND,CABLE

92072-1166

$27.29

92072A

BAND

92072-1268

$23.46

92072B

BAND,BOOT

92072-1316

$11.49

92093

SEAL,FORK DUST

92093-1260

$27.10

92143

COLLAR,FORK,L=90

92143-1645

$25.61

130

BOLT-FLANGED,8X45

130G0845

$1.58

130A

BOLT-FLANGED,8X50

130G0850

$2.19

220

SCREW PAN HEAD 4X16

220B0416

$1.66
