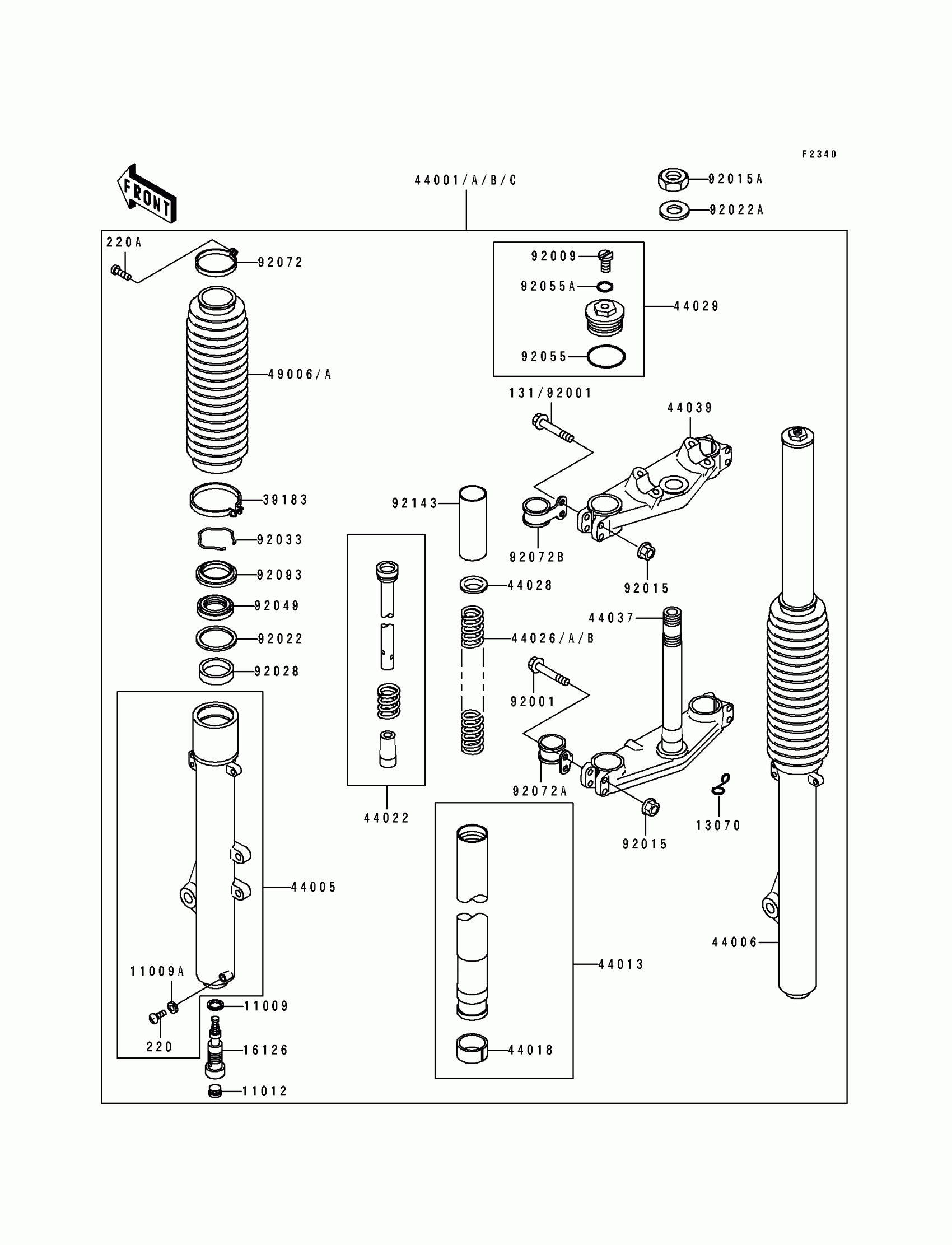

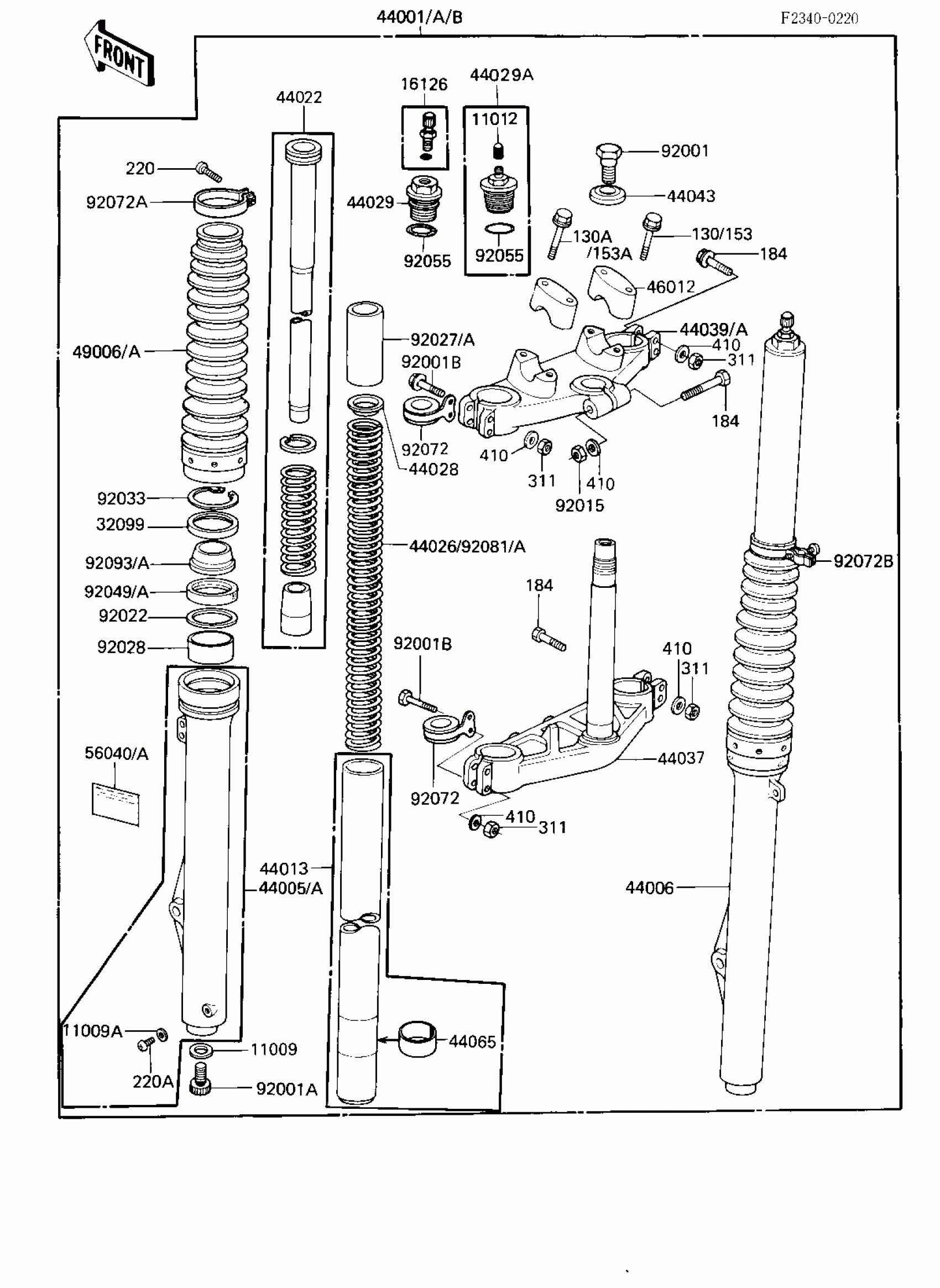

Kawasaki KDX200 Front Fork Diagram
#
11009
GASKET,FORK CYLINDER BOLT
11009-1324
$5.54
11009A
GASKET,FORK DRAIN PLUG
44045-002
$5.18
11012
CAP,FORK CYLINDER
11012-1381
$6.11
13070
GUIDE,CABLE
13070-1208
Unavailable
16126
VALVE,FORK CYLINDER
16126-1134
$154.94
39183
BAND-ASSY,BOOT
39183-1051
$10.64
44001A
FORK-FRONT,BLUE NO.32
44001-1711-GF
$1,685.60
44005
PIPE-LEFT FORK OUTER
44005-1286
$421.21
44006
PIPE-RIGHT FORK OUTER
44006-1300
$453.24
44013
PIPE-FORK INNER
44013-1300
Unavailable
44018
PISTON-FORK,INNER PIPE
44018-1056
$28.45
44022
CYLINDER-FORK
44022-1240
$143.39
44026
SPRING-FRONT FORK,K=0.30
44026-1401
$47.20
44026A
SPRING-FRONT FORK,K=0.29
44026-1430
$67.47
44026B
SPRING-FRONT FORK,K=0.31
44026-1431
$71.90
44028
GUIDE-FORK SPRING
44028-1010
$11.30
44029
SEAT-FORK SPRING
44029-1137
Unavailable
44037
HOLDER-FORK UNDER
44037-1248
$608.79
44039
HOLDER-FORK UPPER
44039-1154
Unavailable
49006A
BOOT,FORK,BLUE NO.32
49006-1184-GF
Unavailable
92001
BOLT,FLANGED,8X55
92001-1639
$8.05
92009
SCREW
92009-1568
$7.21
92015
NUT,FLANGED,8MM
92015-1485
$5.38
92015A
NUT,STEERING STEM,22MM
92015-1653
$16.69
92022
WASHER
92022-1299
$8.58
92022A
WASHER,STEERING STEM
92022-1873
$7.45
92028
BUSHING
92028-1581
$21.80
92033
RING-SNAP
92033-1077
$4.96
92049
SEAL-OIL,FORK OUTER TUBE
92049-1295
$22.14
92055
RING-O
92055-1123
$6.22
92055A
RING-O,2.8X6.6X1.9
92055-1441
$4.33
92072
BAND,BOOT
92072-1078
$11.16
92072A
BAND,CABLE
92072-1205
Unavailable
92072B
BAND
92072-1246
$18.73
92093
SEAL,FORK DUST
92093-1086
Unavailable
92143
COLLAR,FORK,L=110
92143-1328
Unavailable
131
BOLT-FLANGED
131G0850
Unavailable
220
SCREW PAN HEAD 4X8
220B0408
$0.67
220A
SCREW PAN HEAD 4X16
220B0416
$1.66
