Description

Price

11012

CAP,UNI-TRAK

11012-1211

Unavailable

32029A

BRACKET-ENGINE,FR

32029-1458

$26.41

32029B

BRACKET-ENGINE,UPP

32029-1584

$27.32

32037D

BRACKET-SHOCKABSORBER,LH

32037-1471

$26.47

32037E

BRACKET-SHOCKABSORBER,RH

32037-1472

$26.47

92001

BOLT,8X67

92001-1928

$9.87

92002

BOLT,FLANGED,8X90

92002-1849

$7.93

92015

NUT,8MM

92015-1143

$0.65

92015A

NUT,FLANGED,10MM

92015-1415

$4.69

92022

WASHER,8.5X22X1.5

92022-1629

$6.15

92027

COLLAR,CHAIN ROLLER

92027-1670

$7.34

92037

CLAMP,RESERVE TANK

92037-1586

$12.54

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=218

92072-032

$5.00

92122A

ROLLER,CHAIN GUIDE

92122-1144

Unavailable

92160

DAMPER

92160-1025

$3.83

130

BOLT-FLANGED,8X50

130G0850

$2.19

130A

BOLT-FLANGED,8X55

130G0855

Unavailable

130B

BOLT-FLANGED,10X20

130P1020

$2.09

130C

BOLT-FLANGED

130P1050

$4.69

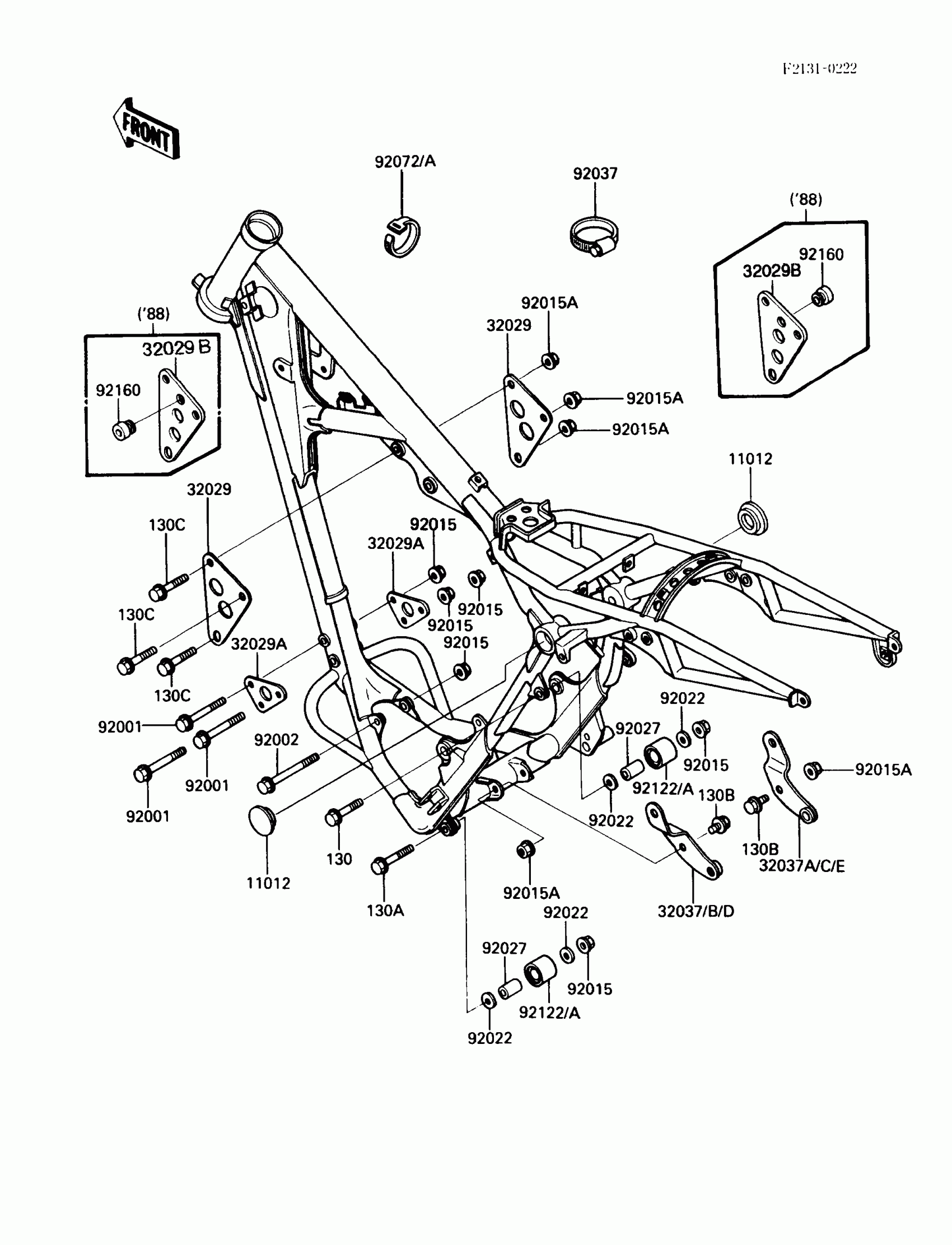

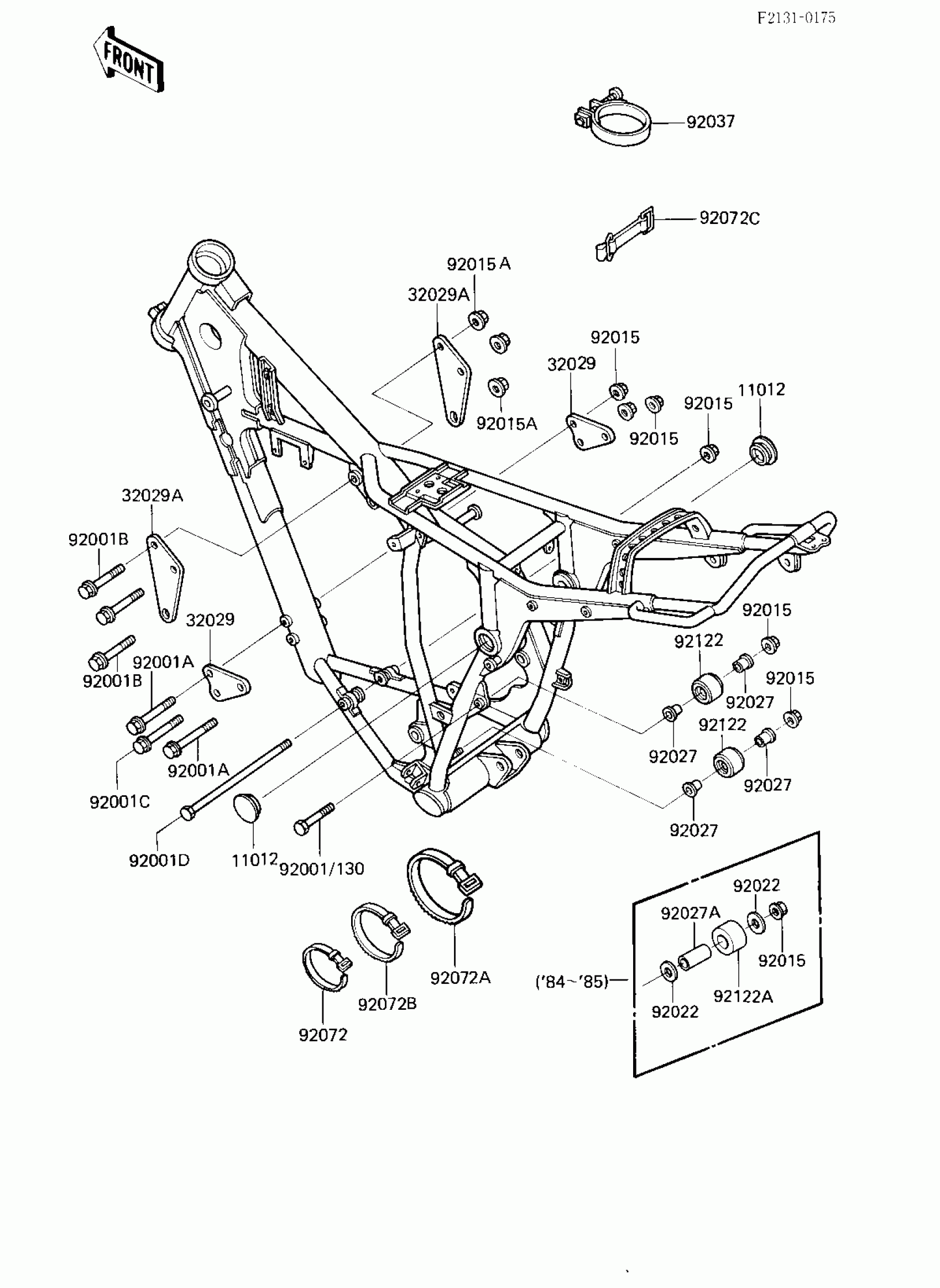

Kawasaki KDX200 Frame Fittings Diagram

CAP,UNI-TRAK

BRACKET-ENGINE,FR

BRACKET-ENGINE,UPP

BRACKET-SHOCKABSORBER,LH

BRACKET-SHOCKABSORBER,RH

BOLT,8X67

BOLT,FLANGED,8X90

NUT,8MM

NUT,FLANGED,10MM

WASHER,8.5X22X1.5

COLLAR,CHAIN ROLLER

CLAMP,RESERVE TANK

BAND,L=123

BAND,L=218

ROLLER,CHAIN GUIDE

DAMPER

BOLT-FLANGED,8X50

BOLT-FLANGED,8X55

BOLT-FLANGED,10X20

BOLT-FLANGED
