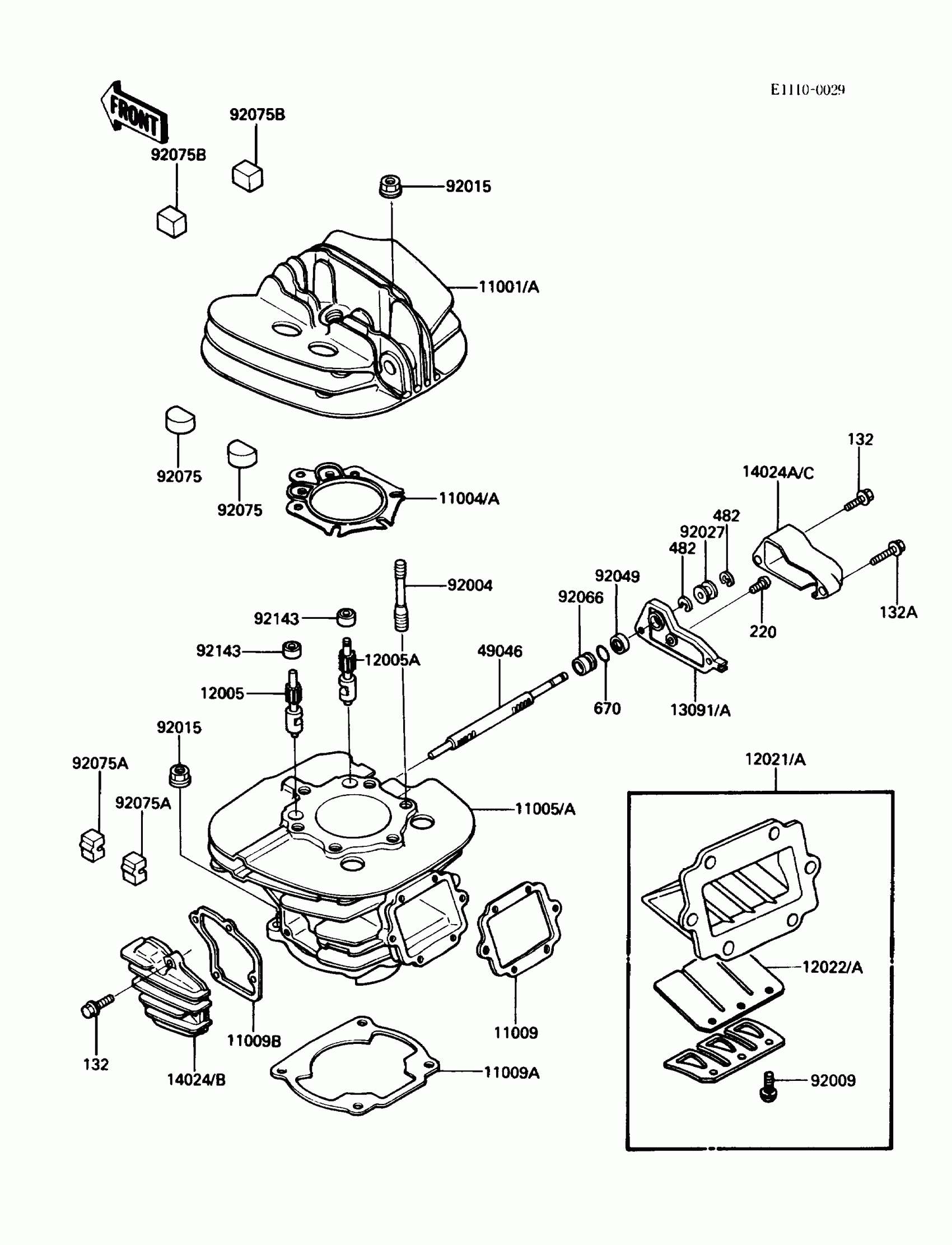

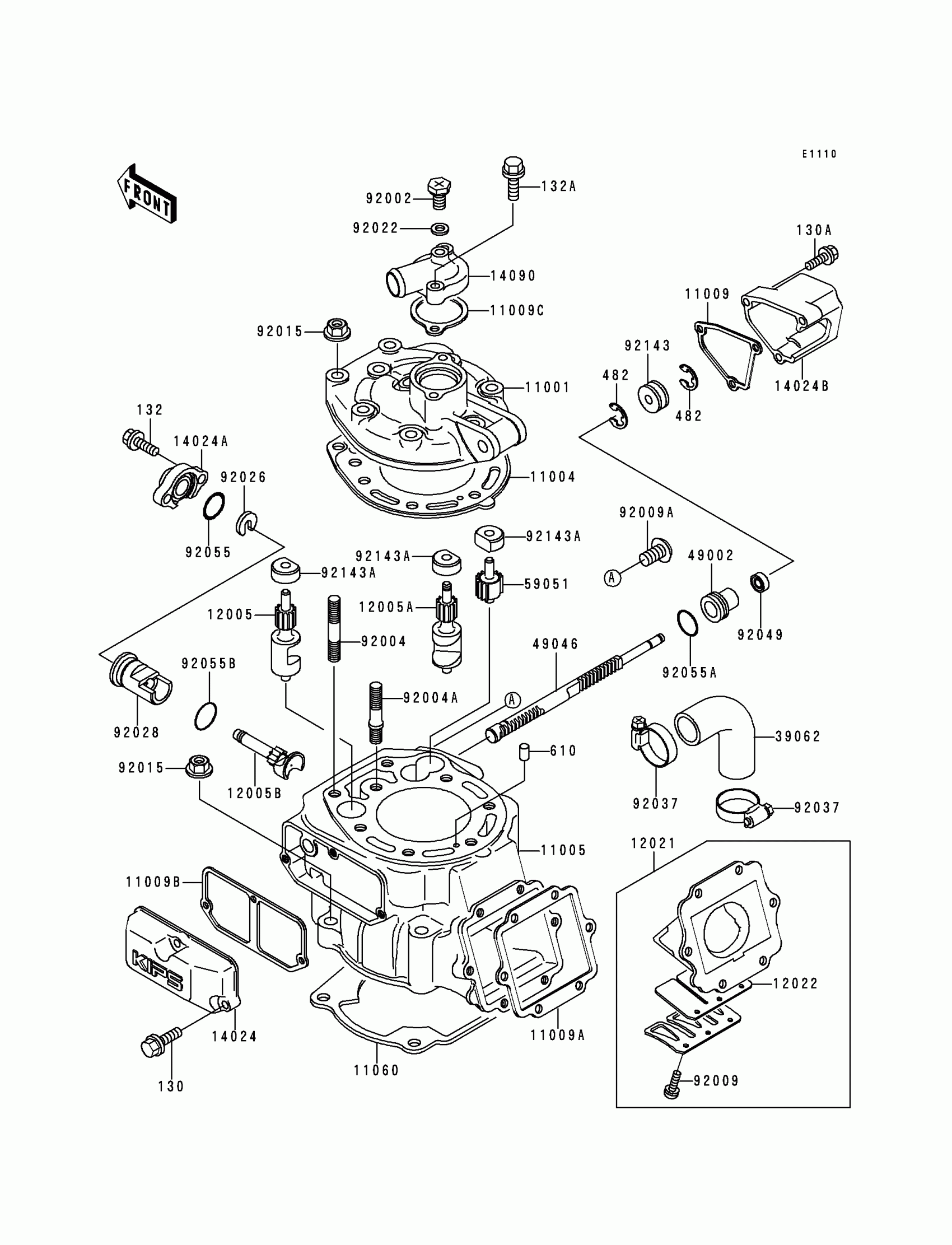

Kawasaki KDX200 Cylinder Head/Cylinder Diagram
#
130
BOLT-FLANGED
130G0520
Unavailable
130A
BOLT-FLANGED
130G0525
$0.64
132
BOLT-FLANGED-SMALL
132G0620
$2.33
11001
HEAD-CYLINDER
11001-1317
Unavailable
11004
GASKET-HEAD
11004-1189
Unavailable
11005
CYLINDER-ENGINE
11005-1569
Unavailable
11009
GASKET,RH,GOVERNOR
11009-1934
$6.50
11009A
GASKET,REED VALVE
11009-1941
$9.20
11009B
GASKET,LH,RESONATOR
11009-1968
$5.30
11009C
GASKET,ELBOW
11009-1993
$5.54
11060
GASKET,CYLINDER BASE
11060-1659
$11.80
12005
VALVE-EXHAUST,LH
12005-1121
Unavailable
12005A
VALVE-EXHAUST,RH
12005-1122
Unavailable
12005B
VALVE-EXHAUST,CENTER
12005-1157
Unavailable
12021
VALVE-ASSY-REED
12021-1067
$136.91
12022
VALVE-REED
12022-1063
$28.37
14024
COVER,RESONATOR
14024-1565
$38.31
14024A
COVER,CENTER VALVE
14024-1708
Unavailable
14024B
COVER,GOVERNOR
14024-1786
$18.05
14090
COVER,THERMOSTAT
14090-1534
$29.01
39062
HOSE-COOLING,PUMP-CYLINDER
39062-1299
Unavailable
49002
GUIDE-VALVE
49002-1083
$20.67
49046
ROD-GOVERNOR
49046-1069
Unavailable
59051
GEAR-SPUR,IDLE
59051-1206
$41.91
92002
BOLT,6X10
92002-1222
$8.10
92004
STUD,8X35
92004-1009
$6.38
92004A
STUD,8X34
92004-1199
Unavailable
92009
SCREW,REED VALVE
92009-1014
$2.49
92009A
SCREW,5X10
92009-1502
$4.18
92015
NUT,8MM
92015-1143
$0.65
92022
WASHER,6.2X11X1
92022-304
$3.65
92026
SPACER
92026-1333
Unavailable
92028
BUSHING,CENTER VALVE
92028-1616
Unavailable
92037
CLAMP,COOLING HOSE
92037-1589
$18.57
92049
SEAL-OIL,RSO-5.5X11X4
92049-1206
$10.39
92055
RING-O,16.8X2.4
92055-1258
$4.92
92055A
RING-O,14.5X1.5
92055-1399
$4.67
92055B
RING-O
92055-1422
$7.71
92143
COLLAR
92143-1056
$10.57
92143A
COLLAR,VALVE
92143-1147
$13.98
132A
BOLT-FLANGED-SMALL
132G0625
Unavailable
482
CIRCLIP-TYPE-E,4MM
482J4000
$1.35
610
ROLLER,4X8
610A0408
$4.31
