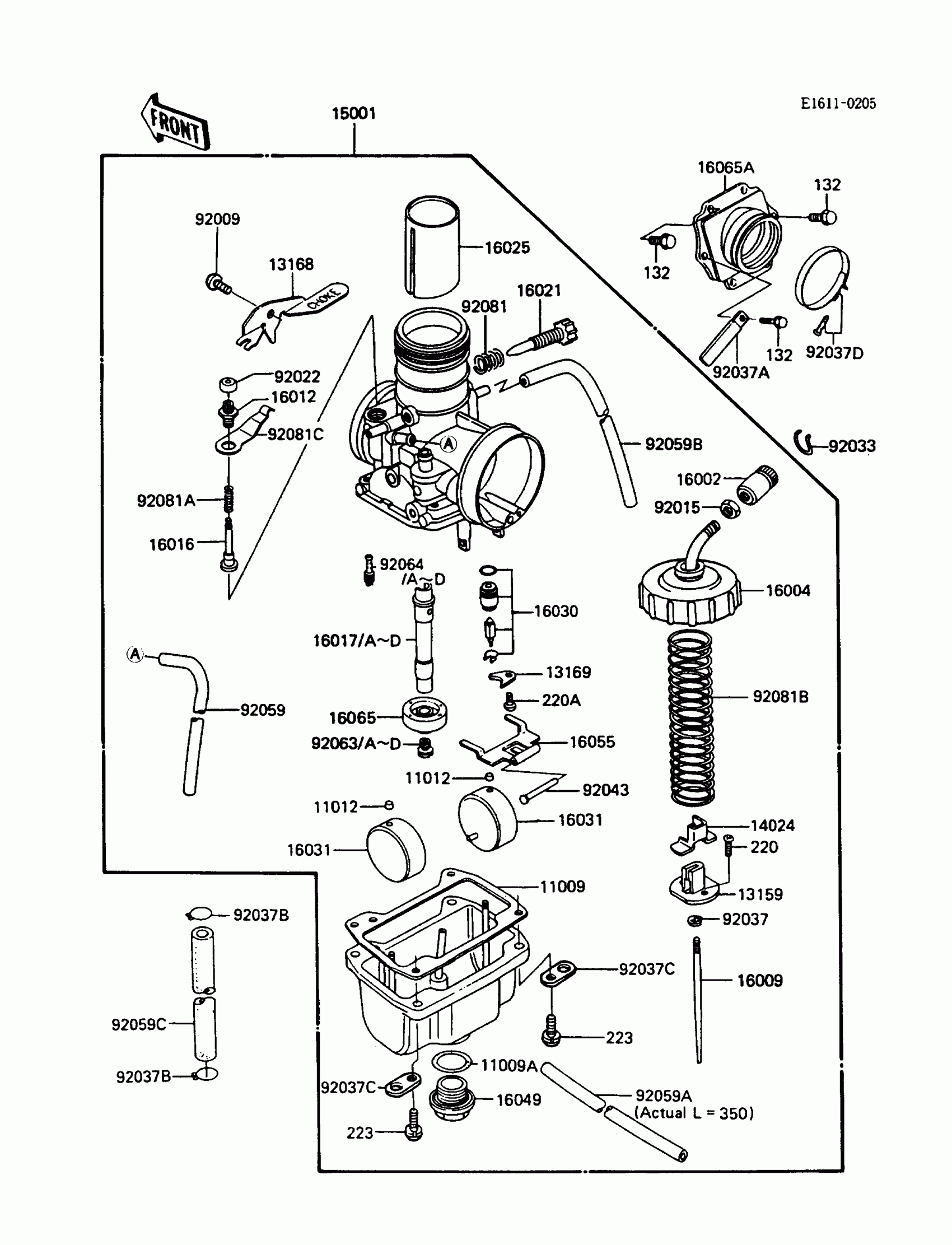

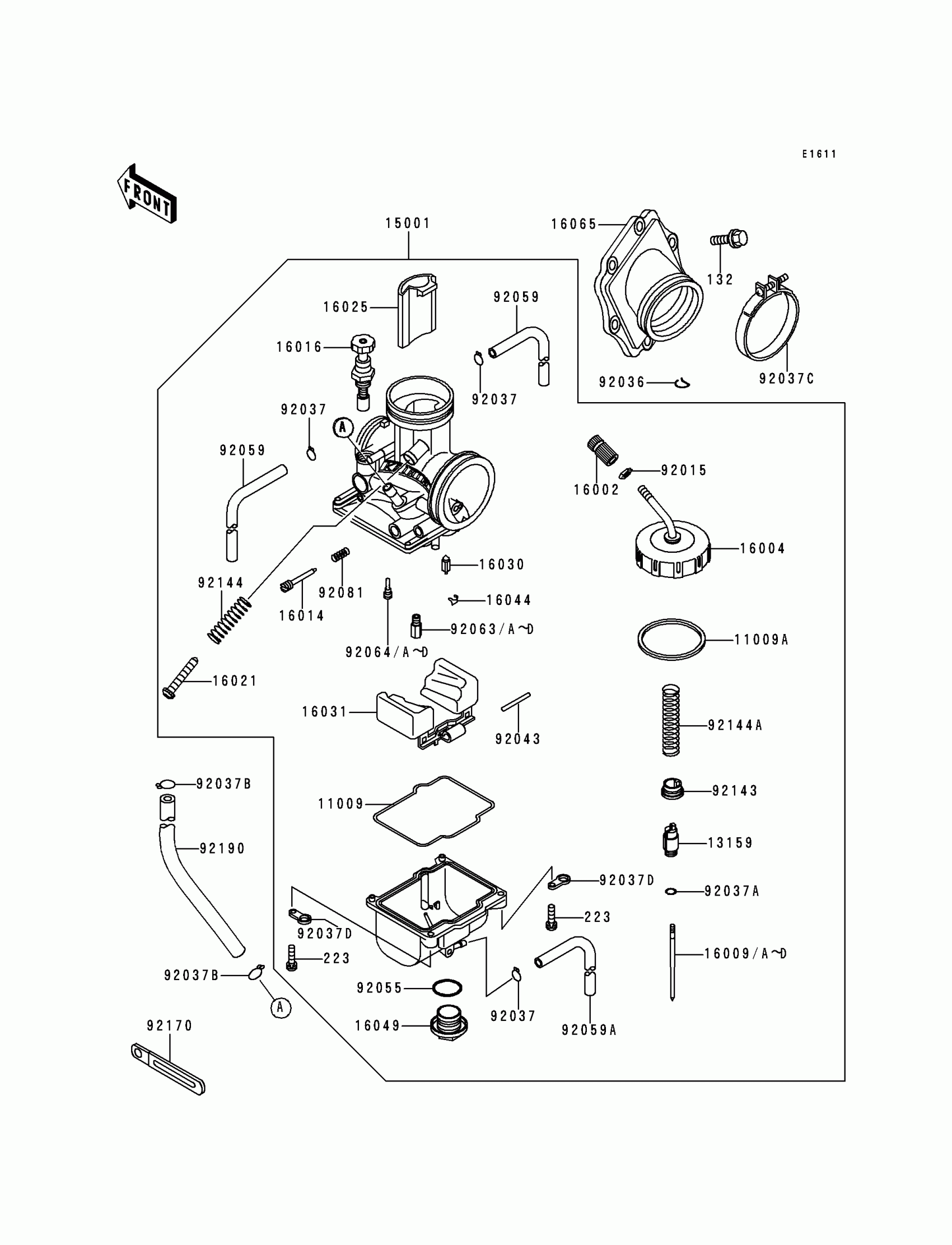

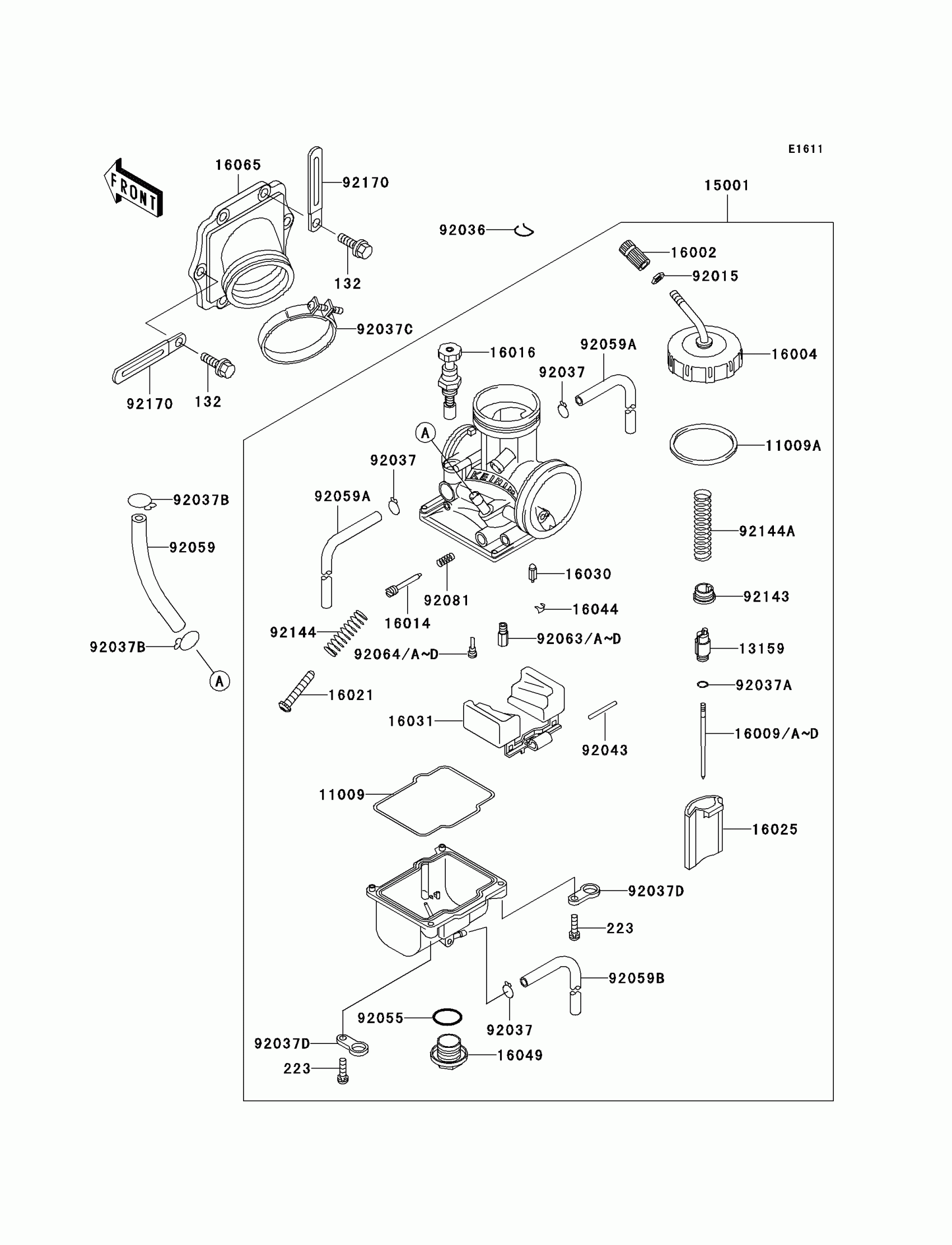

1987 Kawasaki KDX200 Carburetor Diagram
Find the part on the Carburetor diagram for your 1987 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
11009
GASKET,FLOAT CHAMBER
11009-1275
11009A
GASKET,MAIN JET COVER
16038-009
11012
CAP,FLOAT
11012-1047
13159
CONNECTOR
13159-1004
13168
LEVER,STARTER
13168-1233
13169
PLATE, LOCK
13169-1190
14024
COVER,THROTTLE VALVE
14025-1113
15001
CARBURETOR-ASSY
15001-1202
16002
ADJUSTER-CABLE
16002-1006
16004
CAP-CHAMBER,MIXING
16004-1013
16009
NEEDLE-JET,6FL52
16009-1226
16017
JET-NEEDLE,R-2
16017-1307
16017C
JET-NEEDLE,R-4
16017-1310
16021
SCREW-THROTTLE STOP
16021-1029
16030
VALVE-FLOAT,3.3
16030-1020
16049
COVER-MAIN JET
16049-006
16055
ARM-FLOAT
16055-009
16065
HOLDER-CARBURETOR,NEEDLE JET
16065-1045
16065A
HOLDER-CARBURETOR
16065-1138
92009
SCREW
92009-1412
92037A
CLAMP,WIRING HARNESS,L=60
92037-1069
92037C
CLAMP
92037-1474
92037D
CLAMP,CARBURETOR HOLD
92037-1484
92059
TUBE,3.5X6.5X410
92059-1142
92059B
TUBE,4X7X400
92059-1292
92063
JET-MAIN,#300
92063-045
92063A
JET-MAIN,#310
92063-046
92063B
JET-MAIN,#320
92063-047
92063D
JET-MAIN,#340
92063-049
92081
SPRING,THROTTLE STOP SCREW
16022-005
92081B
SPRING,THROTTLE VALVE
92081-1432
92081C
SPRING,PLATE
92081-1625
132
BOLT-FLANGED-SMALL
132G0620
223
SCREW-PAN-WS-CROS
223B0518
