Description

Price

11009

GASKET,FLOAT CHAMBER

11009-1275

Unavailable

11009A

GASKET,MAIN JET COVER

16038-009

Unavailable

11012

CAP,FLOAT

11012-1047

Unavailable

13159

CONNECTOR,THROTTLE

13159-1010

Unavailable

13169

PLATE, LOCK

13169-1190

Unavailable

14025

COVER,THROTTLE VALVE

14025-1113

Unavailable

16001

CARBURETOR

16001-1793

Unavailable

16002

ADJUSTER-CABLE

16002-1006

Unavailable

16004

CAP-CHAMBER,MIXING

16004-1013

Unavailable

16009

NEEDLE-JET,5FJ57

16009-1152

Unavailable

16016

PLUNGER,STARTER

16016-1026

Unavailable

16017

JET-NEEDLE,R-6

16017-1106

Unavailable

16021

SCREW,THROTTLE STOP

16021-1034

Unavailable

16025

VALVE-THROTTLE,CA3.0

16025-1082

$98.94

16030

VALVE-FLOAT,3.3

16030-1020

Unavailable

16031

FLOAT

16031-029

$64.25

16049

COVER-MAIN JET

16049-006

Unavailable

16055

ARM-FLOAT

16055-009

Unavailable

16065A

HOLDER-CARBURETOR

16065-1052

Unavailable

16065B

HOLDER-CARBURETOR

16065-1070

Unavailable

92001

BOLT-FLANGED-SMALL

132G0620

$2.33

92015

NUT,CABLE ADJUST LOCK

16003-004

$7.34

92033

RING-SNAP

92036-018

$3.89

92037

CLAMP,E-TYPE

16008-010

$9.21

92037A

CLAMP,CARB CONECT HOS

92037-056

$6.60

92037B

CLAMP,CARBURETOR HOL

92037-1313

Unavailable

92043

PIN,FLOAT

16032-008

$6.57

92059

HOSE,FUEL,6.5OX11.5O

92059-1026

Unavailable

92059A

TUBE,3.5X6.5X350

92059-1211

$12.19

92059B

TUBE,4X7X400

92059-1292

Unavailable

92059C

TUBE,5.8X10.8X180

92059-1443

$35.06

92063E

MAIN JET NO 130R

92063-057

$14.10

92063F

JET-MAIN NO 132.5R

92063-103

Unavailable

92063G

MAIN JET NO 135R

92063-104

Unavailable

92063H

MAIN JET,#A137.5

92063-1087

Unavailable

92063I

MAIN JET,#140A

92063-116

Unavailable

92064B

JET-PILOT NO 40

92064-024

$22.86

92081

SPRING,THRTL STP SCRW

92081-1200

$9.28

92081A

SPRING,THROTTLE VALVE

92081-1432

Unavailable

220

SCREW-PAN-CROS,3X8

220B0308

$0.59

220A

SCREW PAN HEAD 4X6

220B0406

$1.67

220B

SCREW PAN HEAD 5X16

220B0516

$2.06

461

WASHER SPRING 3MM

461F0300

$0.46

461A

WASHER SPRING 5MM

461F0500

$0.69

670

O RING,9MM

670B1509

$3.65

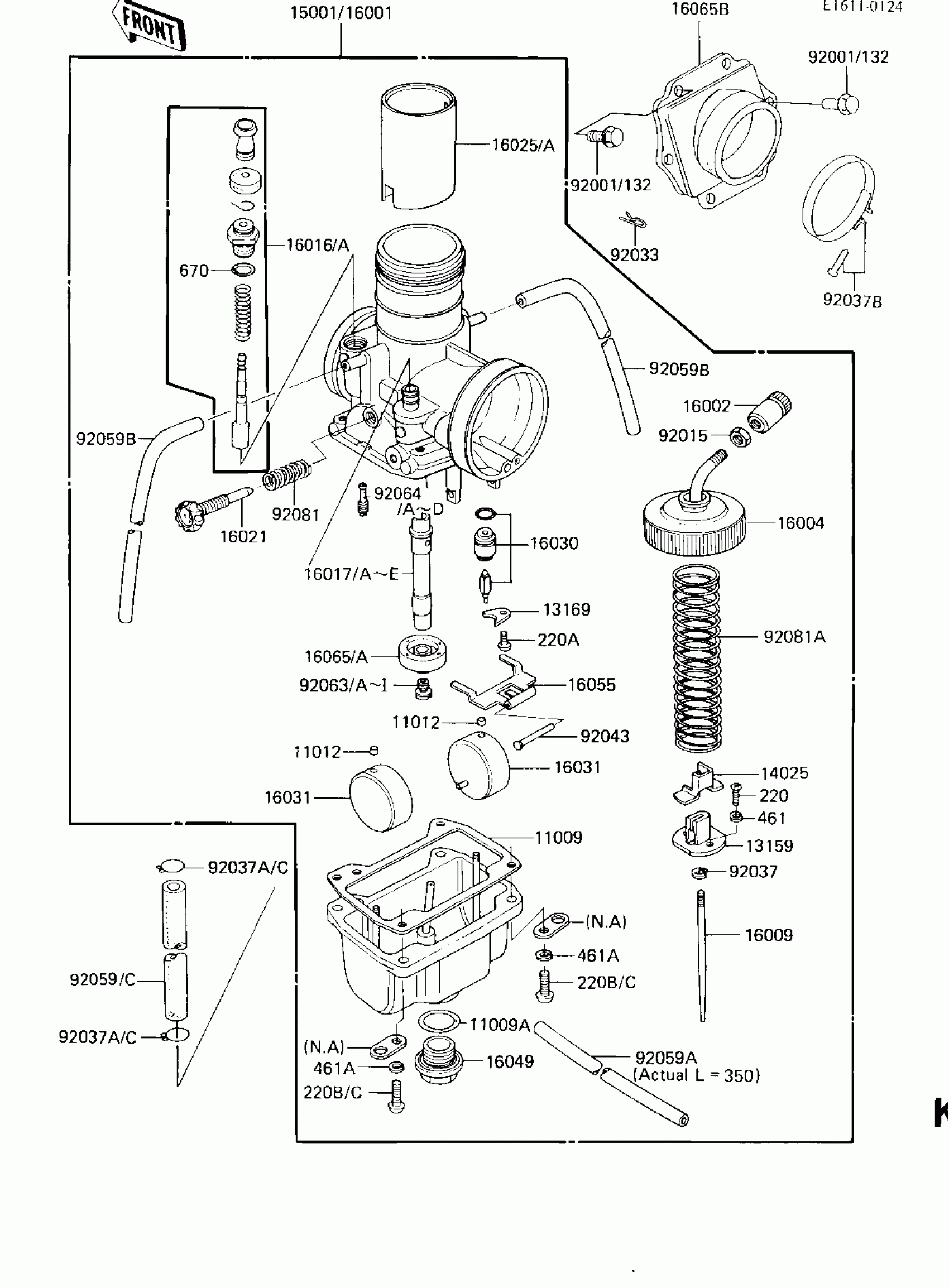

Kawasaki KDX200 CARBURETOR (KDX200-A1/A2) Diagram

GASKET,FLOAT CHAMBER

GASKET,MAIN JET COVER

CAP,FLOAT

CONNECTOR,THROTTLE

PLATE, LOCK

COVER,THROTTLE VALVE

CARBURETOR

ADJUSTER-CABLE

CAP-CHAMBER,MIXING

NEEDLE-JET,5FJ57

PLUNGER,STARTER

JET-NEEDLE,R-6

SCREW,THROTTLE STOP

VALVE-THROTTLE,CA3.0

VALVE-FLOAT,3.3

FLOAT

COVER-MAIN JET

ARM-FLOAT

HOLDER-CARBURETOR

HOLDER-CARBURETOR

BOLT-FLANGED-SMALL

NUT,CABLE ADJUST LOCK

RING-SNAP

CLAMP,E-TYPE

CLAMP,CARB CONECT HOS

CLAMP,CARBURETOR HOL

PIN,FLOAT

HOSE,FUEL,6.5OX11.5O

TUBE,3.5X6.5X350

TUBE,4X7X400

TUBE,5.8X10.8X180

MAIN JET NO 130R

JET-MAIN NO 132.5R

MAIN JET NO 135R

MAIN JET,#A137.5

MAIN JET,#140A

JET-PILOT NO 40

SPRING,THRTL STP SCRW

SPRING,THROTTLE VALVE

SCREW-PAN-CROS,3X8

SCREW PAN HEAD 4X6

SCREW PAN HEAD 5X16

WASHER SPRING 3MM

WASHER SPRING 5MM

O RING,9MM
