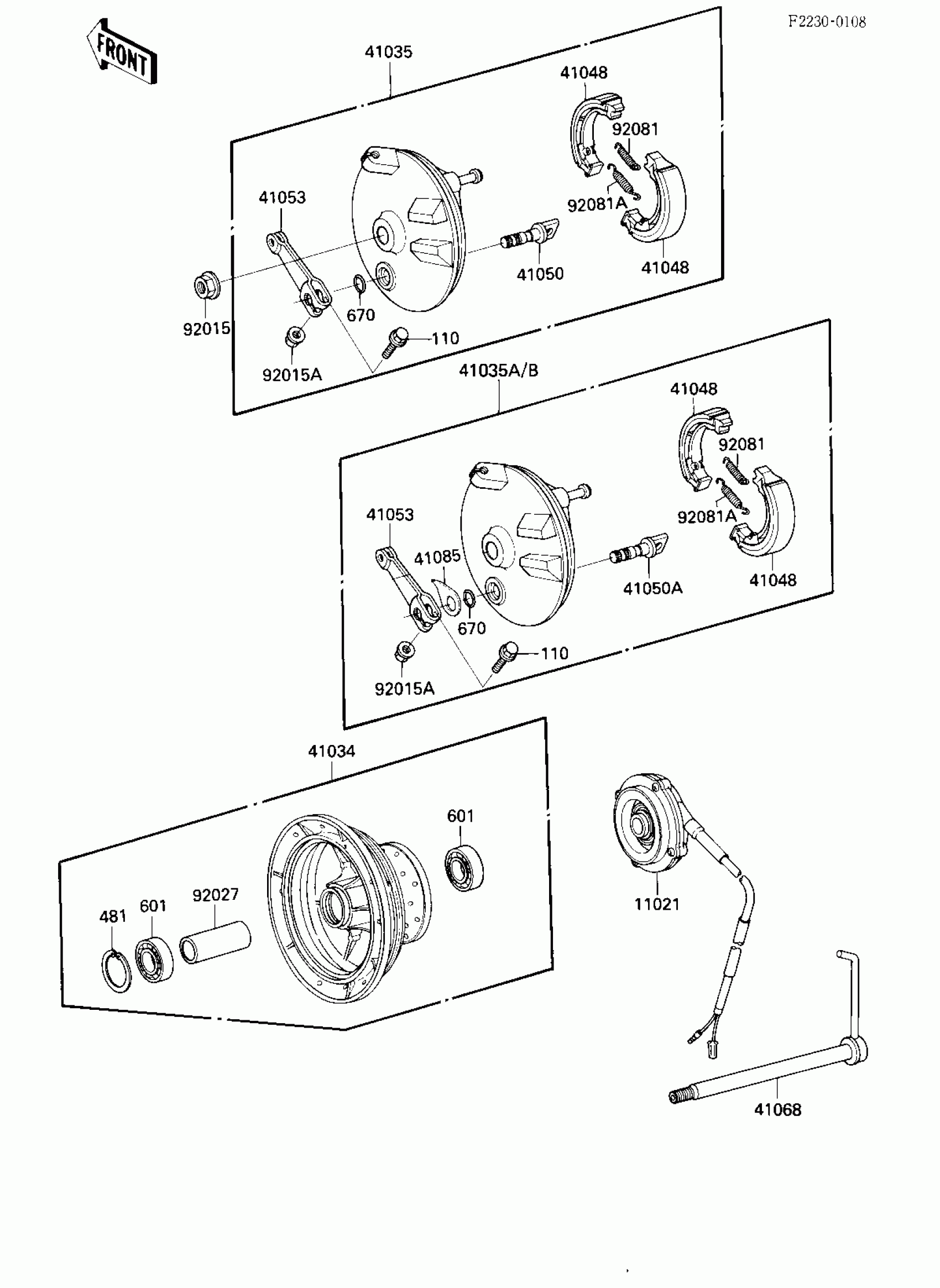

Kawasaki KDX200 FRONT HUB/BRAKE Diagram

Description

Price

11021

CASE-ASSY,DISTANCE SENSOR

11021-1064

Unavailable

41034

DRUM-ASSY,FR

41034-1059

$344.67

41035B

PANEL-ASSY-BRAKE,FR

41035-1187

$574.69

41048

SHOE BRAKE

41048-1012

$30.45

41050A

CAM-BRAKE

41050-1053

$46.85

41053

LEVER,FR BRAKE CAM

41053-1018

$63.41

41068

AXLE,FR

41068-1073

$75.22

41085

INDICATOR,BRAKE SHOE

41085-003

$13.78

92015

NUT,14MM

92015-1407

$7.54

92015A

NUT,FLANGED,6MM

92015-1078

Unavailable

92027

COLLAR,L=54.5

92027-1458

Unavailable

92081

SPRING,BRAKE SHOE

92081-1766

$6.13

92081A

SPRING,BRAKE SHOE

92081-1550

$9.20

110

BOLT-UPSET

112G0630

Unavailable

481

CIRCLIP-TYPE-C,35MM

481J3500

$1.42

601

BEARING-BALL,#6202UC3

601B6202U

$15.51

670

O RING,12MM

670B2012

$2.22
