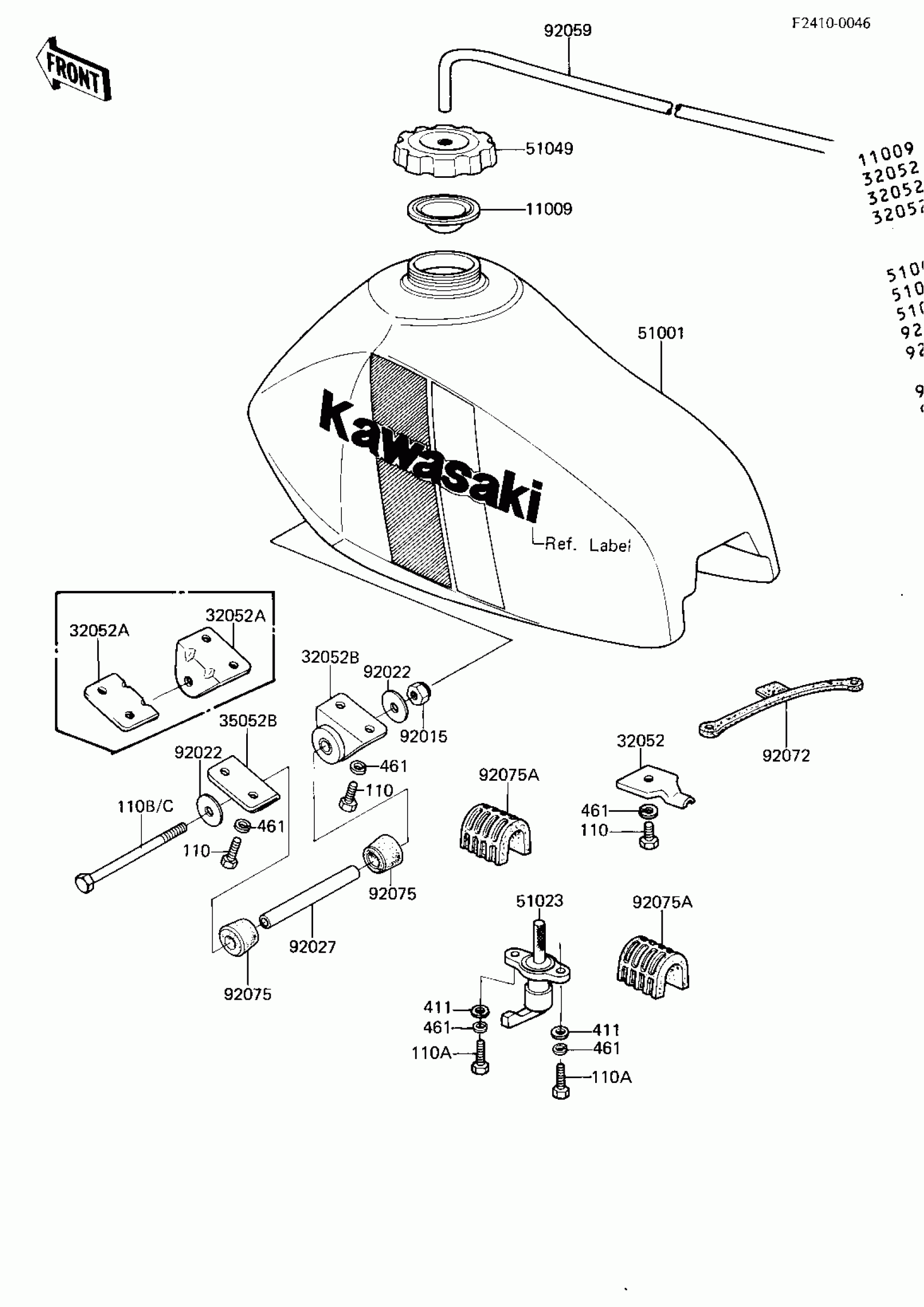

Kawasaki KDX175 FUEL TANK ('81-'82 A2/A3) Diagram

#

Description

Price

11009

GASKET,FUEL TANK CAP

11009-1276

Unavailable

32052

BRACKET,FUEL TANK

32052-1009

$6.42

51001

TANK-FUEL,L.GREEN

51001-5107-6W

$512.47

51023

TAP-ASSY,FUEL

51023-1115

Unavailable

51049

CAP-TANK,FUEL

51049-1007

Unavailable

92015

NUT,LOCK,6MM

92019-008

$3.12

92027

COLLAR,FUEL TANK FIT

92027-1228

Unavailable

92059

TUBE,5X7X500

92059-4001

Unavailable

92072

BAND,FUEL TANK

92072-042

$11.53

92075

DAMPER,FUEL TANK FITT

92075-1220

Unavailable

92075A

DAMPER,FUEL TANK

92075-1221

Unavailable

110

BOLT-UPSET,6X12

112G0612

Unavailable

110A

BOLT-UPSET

112G0618

Unavailable

411

WASHER PLAIN 6MM

411B0600

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable
