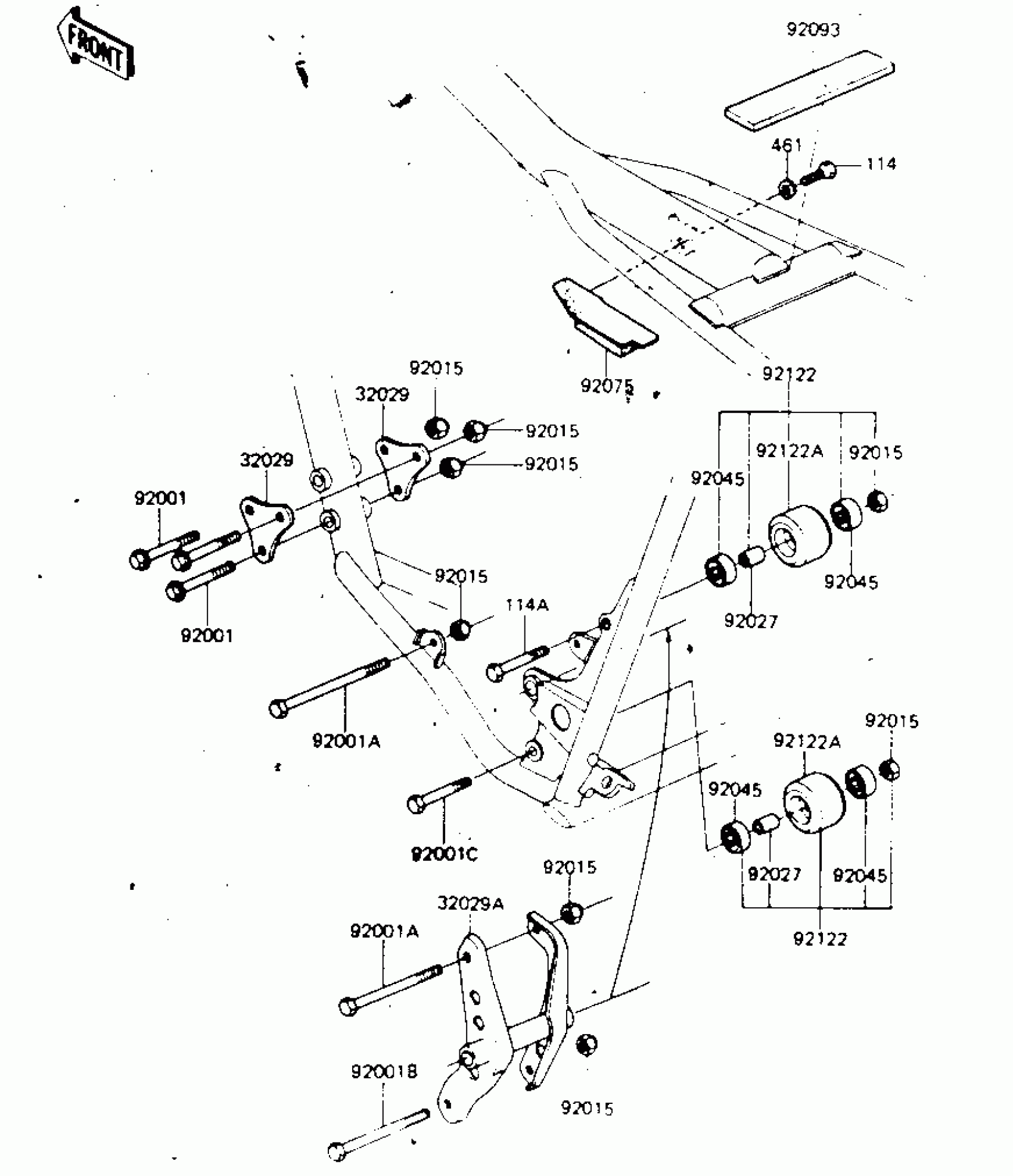

Kawasaki KDX175 FRAME FITTINGS ('81-'82 A2/A3) Diagram

Description

Price

32029

BRACKET-ENGINE

32029-1140

Unavailable

32029A

BRACKET,ENGINE REAR

32029-1123

$44.15

92001

BOLT,8X69

92001-1410

Unavailable

92001A

BOLT,FLANGED,8X90

92002-1416

Unavailable

92001B

BOLT,8X105

92001-1394

Unavailable

92001C

BOLT,8X70

92001-1440

$4.58

92015

NUT,8MM

92015-1134

$7.98

92027

COLLAR

92027-1081

$9.29

92045

BEARING-BALL,608LLU/2A

92045-1009

$35.89

92075

DAMPER,REAR SHOCK

92075-1249

Unavailable

92093

SEAL

92093-1039

Unavailable

92122

ROLLER,ASSY

92122-1013

$111.07

92122A

ROLLER

92122-1014

Unavailable

114

BOLT SMALL

114G0812

Unavailable

114A

BOLT-SMALL-UPSET

115G0855

$5.34

461

WASHER SPRING 8MM

461F0800

Unavailable
