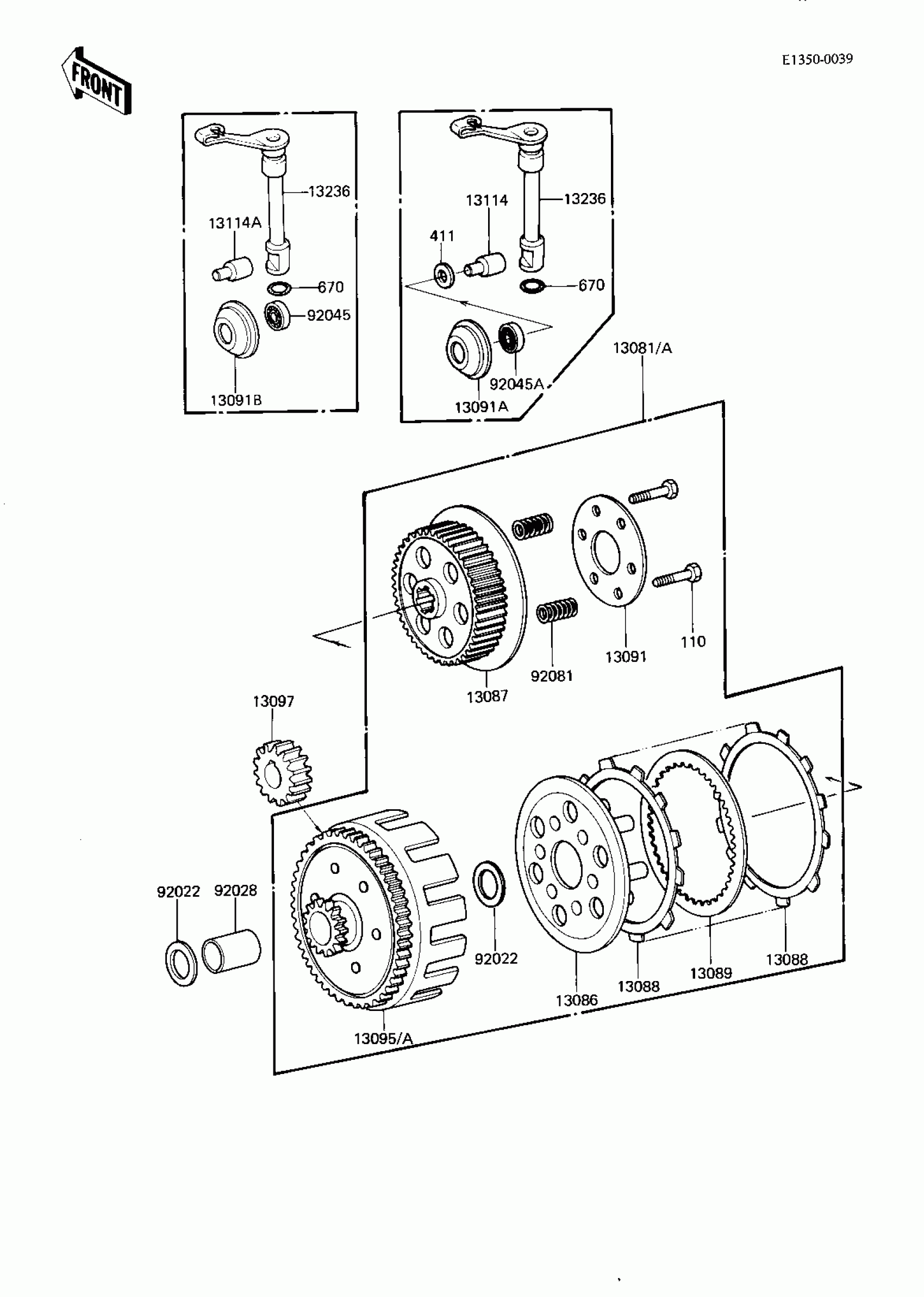

Kawasaki KDX175 CLUTCH ('81-'82 A2/A3) Diagram

Description

Price

13081A

CLUTCH-ASSY

13081-1077

Unavailable

13086

WHEEL,CLUTCH

13086-1001

Unavailable

13087

HUB,CLUTCH

13087-1014

Unavailable

13088

PLATE-FRICTION

13088-1015

$17.08

13089

PLATE CLUTCH STEEL

13089-003

$10.79

13091

HOLDER,CLUTCH

13091-015

Unavailable

13091B

HOLDER,CLUTCH PUSHER

13091-1134

$13.39

13095A

HOUSING-COMP-CLUTCH

13095-1043

Unavailable

13097

GEAR,PRIMARY,23T

13097-1033

Unavailable

13114A

PUSHER-CLUTCH

13114-1008

Unavailable

13236

LEVER ASSY,CLUTCH RL

13236-1022

Unavailable

92022

WASHER,20.5X30X1.4

92022-223

$12.15

92028

BUSHING,CLUTCH

92028-1081

$51.54

92045

BEARING-BALL,#627

92045-026

$16.08

92081

SPRING,CLUTCH

92081-123

Unavailable

110

BOLT

110G0520

Unavailable

670

O RING,10MM

670B2010

$1.13
