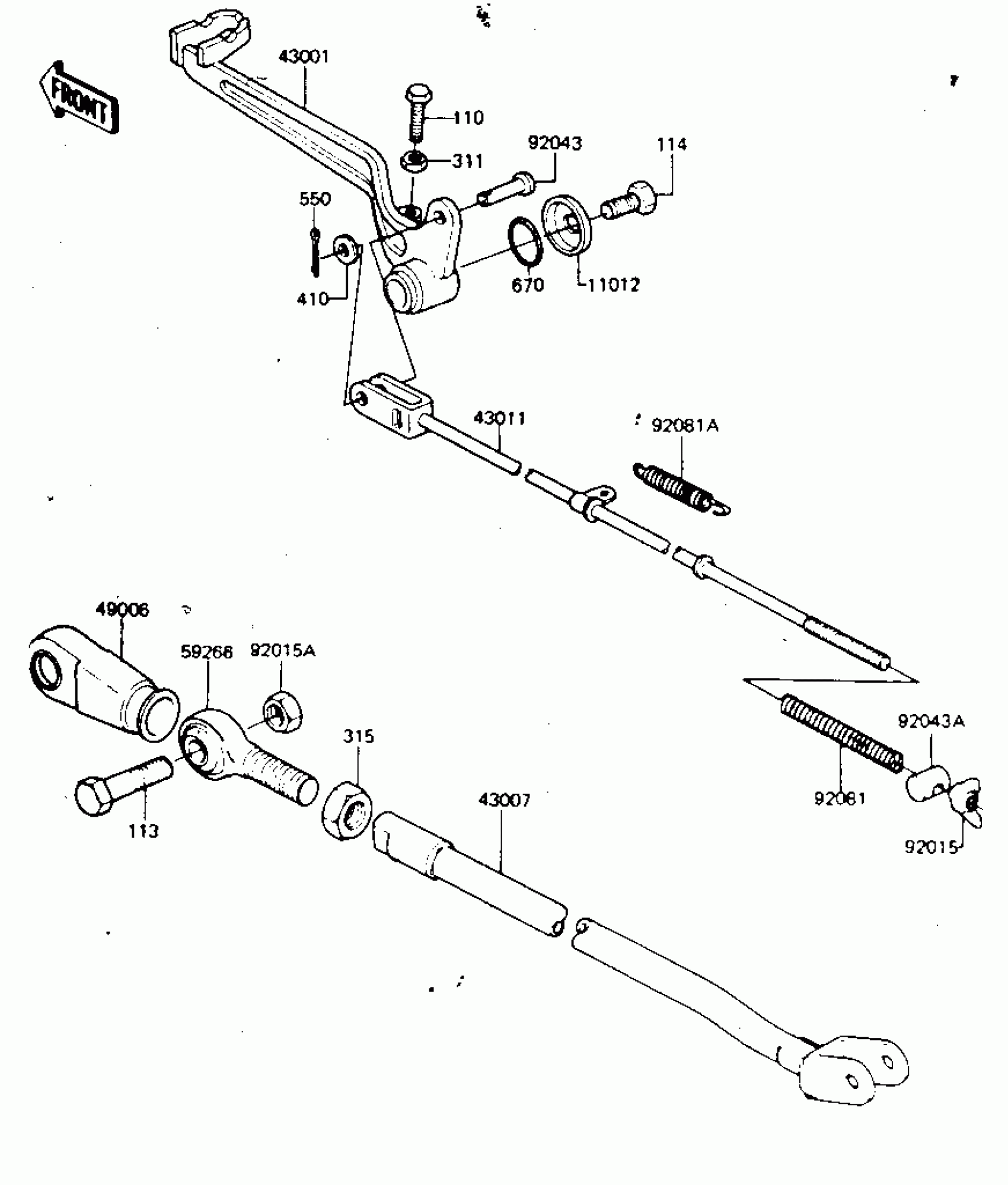

Kawasaki KDX175 BRAKE PEDAL/TORQUE LINK ('81-'82 A2/A3) Diagram

Description

Price

11012

CAP,BRAKE PEDAL FITT

11012-1116

Unavailable

43001

PEDAL,BRAKE

43001-1043

$71.49

43007

TORQUE LINK,RR BRAKE

43007-1018

$61.53

43011

ROD,BRAKE

43011-1019

Unavailable

49006

BOOT,BALL JOINT

49006-1035

Unavailable

59266

JOINT,BALL,TORQUE RN

59266-1003

$61.98

92015

NUT,WING,6MM

92015-4004

$5.58

92015A

NUT-LOCK,12MM

92019-009

$7.20

92043

PIN,6X17

92043-064

$3.57

92043A

PIN,BRAKE

92043-1024

$10.44

92081

SPRING,BRAKE ROD

43012-001

$3.54

92081A

SPRING RETURN

92081-1059

Unavailable

110

BOLT-UPSET

112G0625

Unavailable

113

BOLT,HEX HEAD,12X35

113P1235A

Unavailable

114

BOLT SMALL

114G0812

Unavailable

311

NUT 6MM

311B0600

Unavailable

315

NUT-HEX-FINE

315B1200

Unavailable

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

550

PIN COTTER 2.0X15

550D2015

Unavailable

670

O RING,18MM

670B2018

$1.08
