1976 Kawasaki KD80 Wheels/tires Diagram

← All diagrams

Find the part on the Wheels/tires diagram for your 1976 Kawasaki KD80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

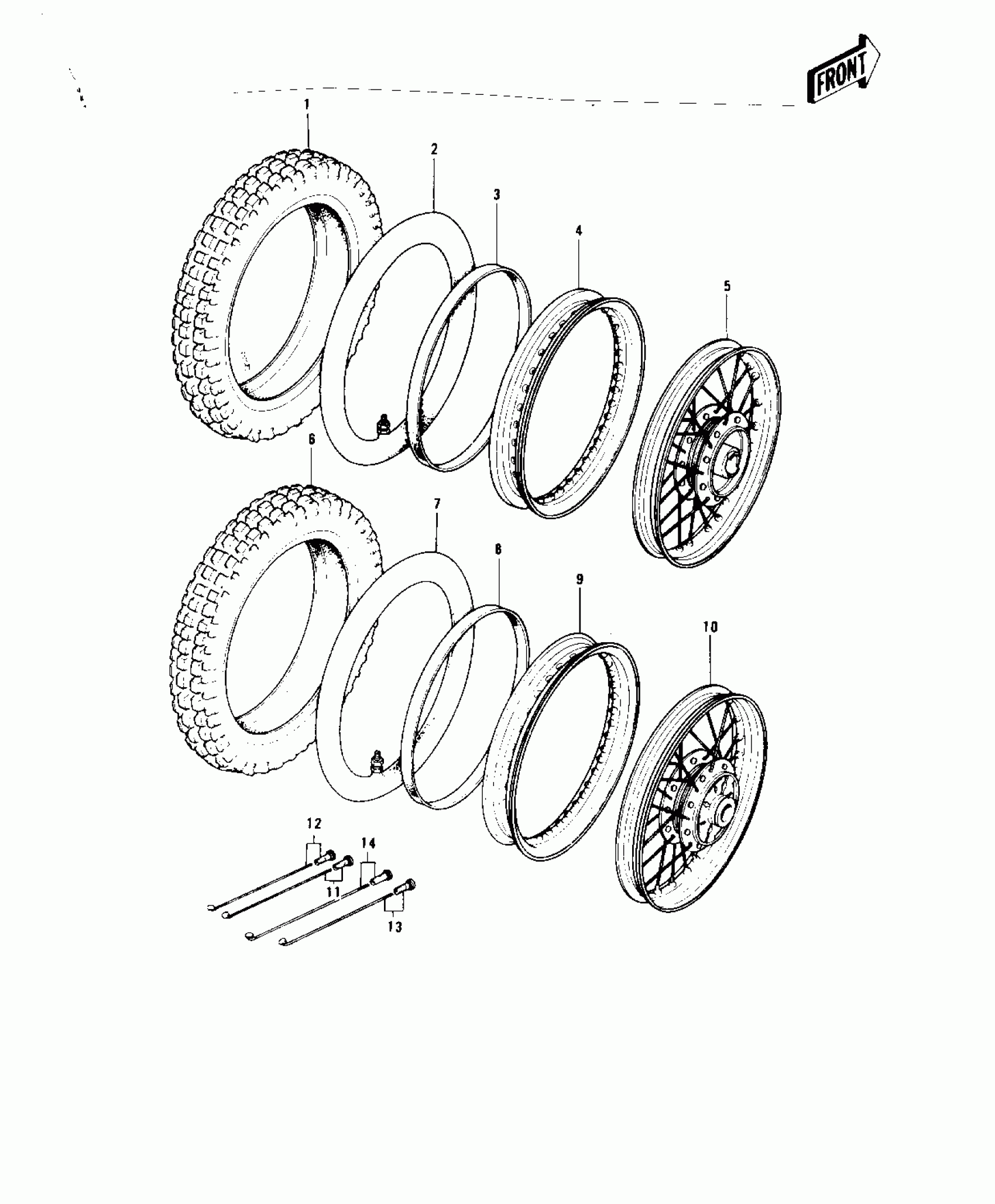

1976 Kawasaki KD80 Wheels/tires Diagram

#

Description
Price
Status
Order Qty

1

*** N.L.A.*** (Canada)

41017-014

Out of stock

2

TUBE 225/250-16

41022-041

Out of stock

3

BAND,RIM,FRONT

41023-024

Out of stock

4

RIM,1.40X16W

41025-069

Out of stock

5

WHEEL ASSY,FRONT

41074-041

Out of stock

6

TIRE 275-14 K250 R

41002-1271

Out of stock

7

TUBE 275/410/425-14

41022-042

Out of stock

8

BAND,RIM,4.10-14

41023-1025

Out of stock

9

RIM,1.60X14W

41025-070

Out of stock

10

WHEEL ASSY,REAR

41073-5017

Out of stock

11

SPOKE-ASY,FR INNER

41027-065

$8.44

In stock

12

SPOKE-ASY FR OUTER

41028-065

Out of stock

13

SPOKE-ASY,RR INNER

41027-066

Out of stock

14

SPOKE-ASY RR OUTER

41028-066

$9.36

In stock
