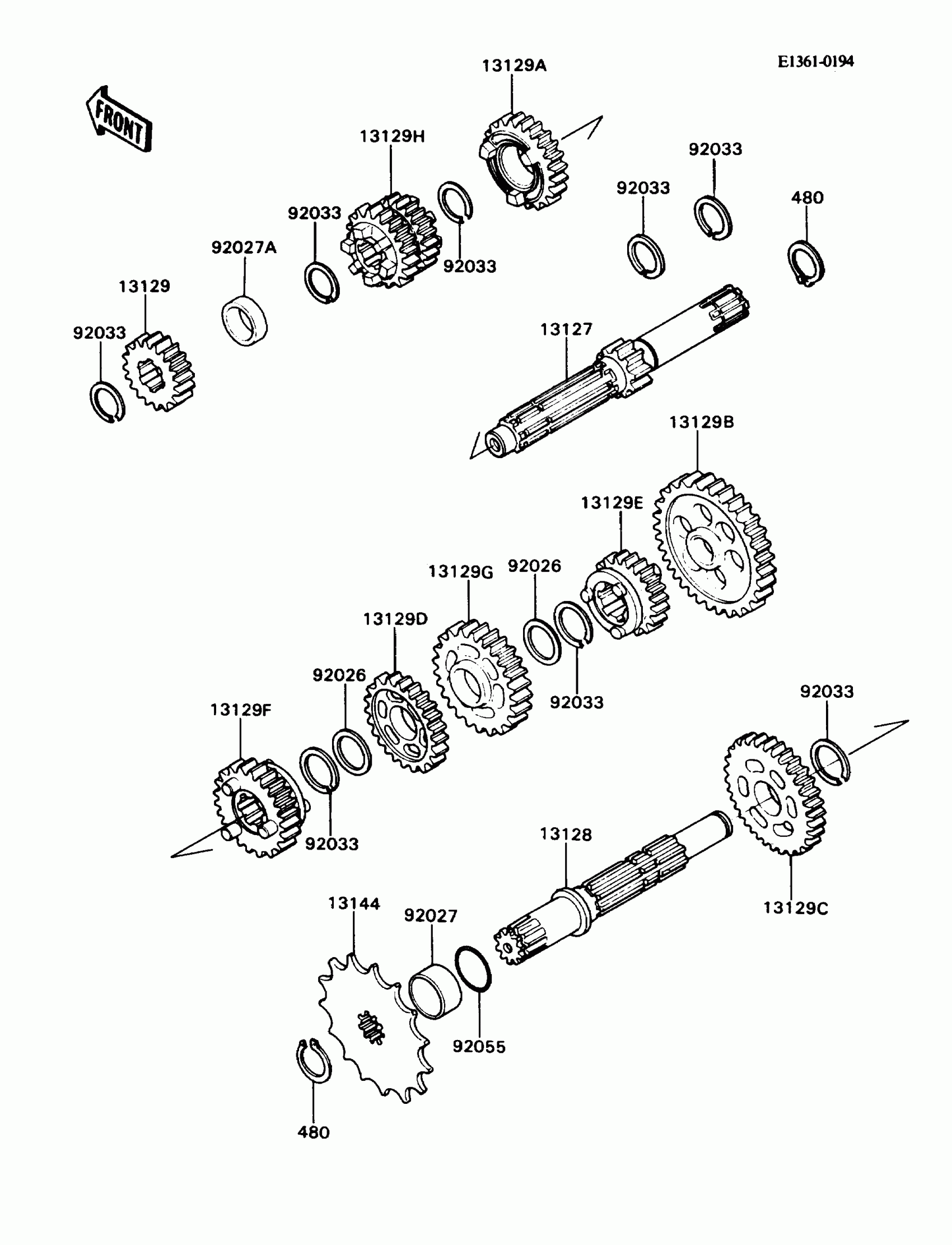

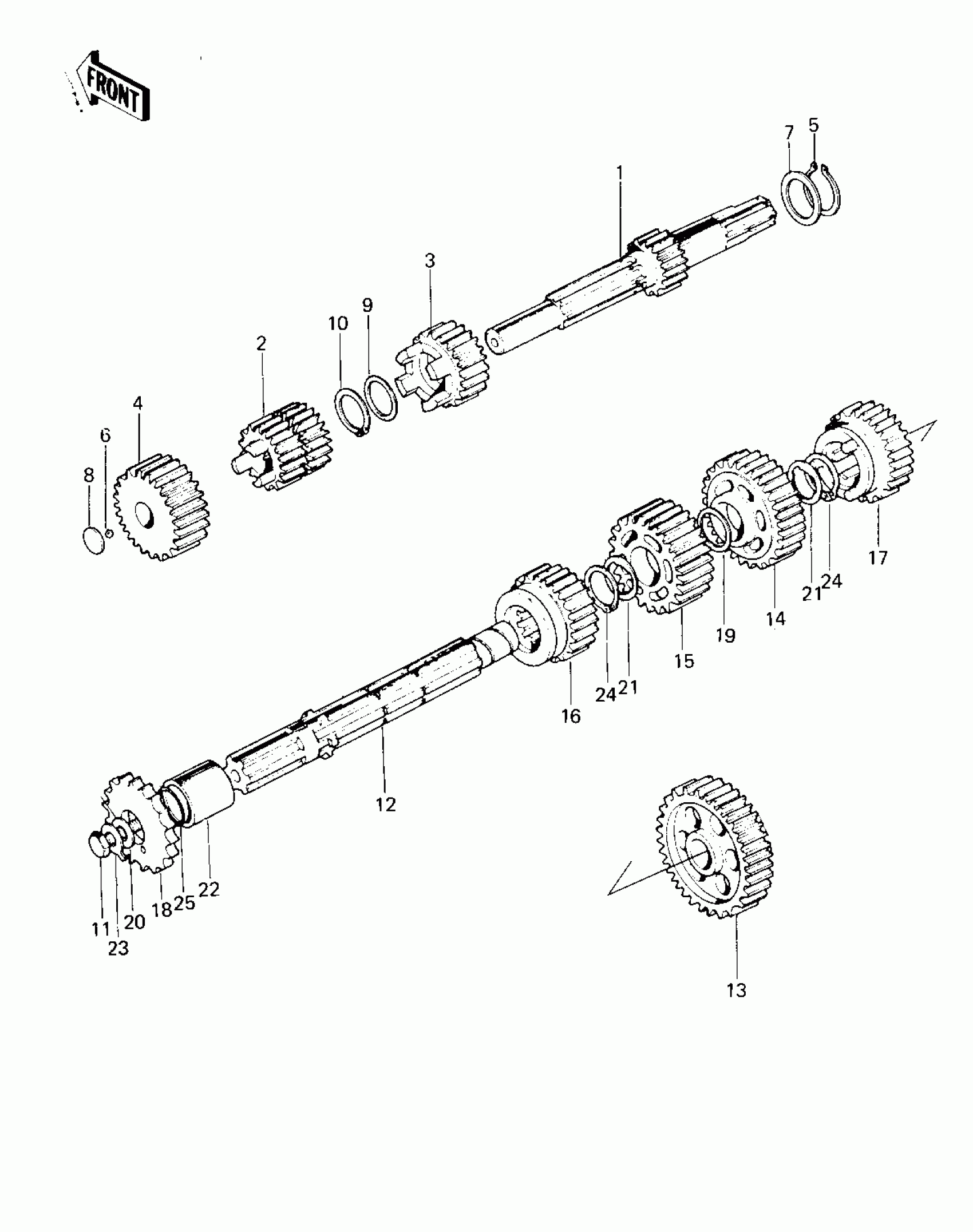

Kawasaki KD80 TRANSMISSION Diagram
#
Description
Price
1
SHAFT-TRANSMISSION INPUT
13127-1017
Unavailable
2
2ND&3RD GEAR,DRIVE
13129-1052
Unavailable
3
4TH GEAR,DRIVE
13129-1053
Unavailable
4
GEAR,INPUT TOP,24T
13129-1927
Unavailable
5
CIRCLIP-TYPE-C,16MM
480J1600
Unavailable
6
BALL-STEEL,7/32"
600A0700
Unavailable
7
WASHER,THRUST,16.5X21X0.8
92022-053
Unavailable
8
WASHER,THRUST
92022-115
Unavailable
9
WASHER,18.5X23X1.2
92022-118
Unavailable
10
RING-SNAP,16MM
92033-014
Unavailable
11
BOLT-SMALL-UPSET,8X16
115G0816
Unavailable
11
BOLT,8X16
92001-1368
Unavailable
12
SHAFT-TRANSMISSION OUTPUT
13128-021
Unavailable
13
GEAR,OUTPUT LOW,35T
13129-010
Unavailable
14
2ND GEAR OUTPUT SHAFT
13131-008
Unavailable
15
3RD GEAR OUTPUT SHAFT
13133-005
Unavailable
16
TOP GEAR OUTPUT SHAFT
13137-012
Unavailable
17
GEAR,OUTPUT 4TH,24T
13129-1708
Unavailable
18
SPROCKET-OUTPUT,14T
13144-1058
Unavailable
18
SPROCKET-OUTPUT,15T
13144-054
Unavailable
18
ENGINE SPROCKET,13T
13144-053
Unavailable
19
WASHER,THRUST,18.5X23X1.6
92022-146
Unavailable
20
WASHER,T=2.3
92022-266
Unavailable
21
WASHER,TOOTHED,18.5X23X1.2
92024-030
Unavailable
22
COLLAR,ENGINE SPROCKET,L=13.7
92027-1595
Unavailable
23
WASHER,CLAW,8X22X1.2
92030-012
Unavailable
24
RING-SNAP,16MM
92033-014
Unavailable
25
RING-O,17.5X1.5
92055-022
Unavailable
