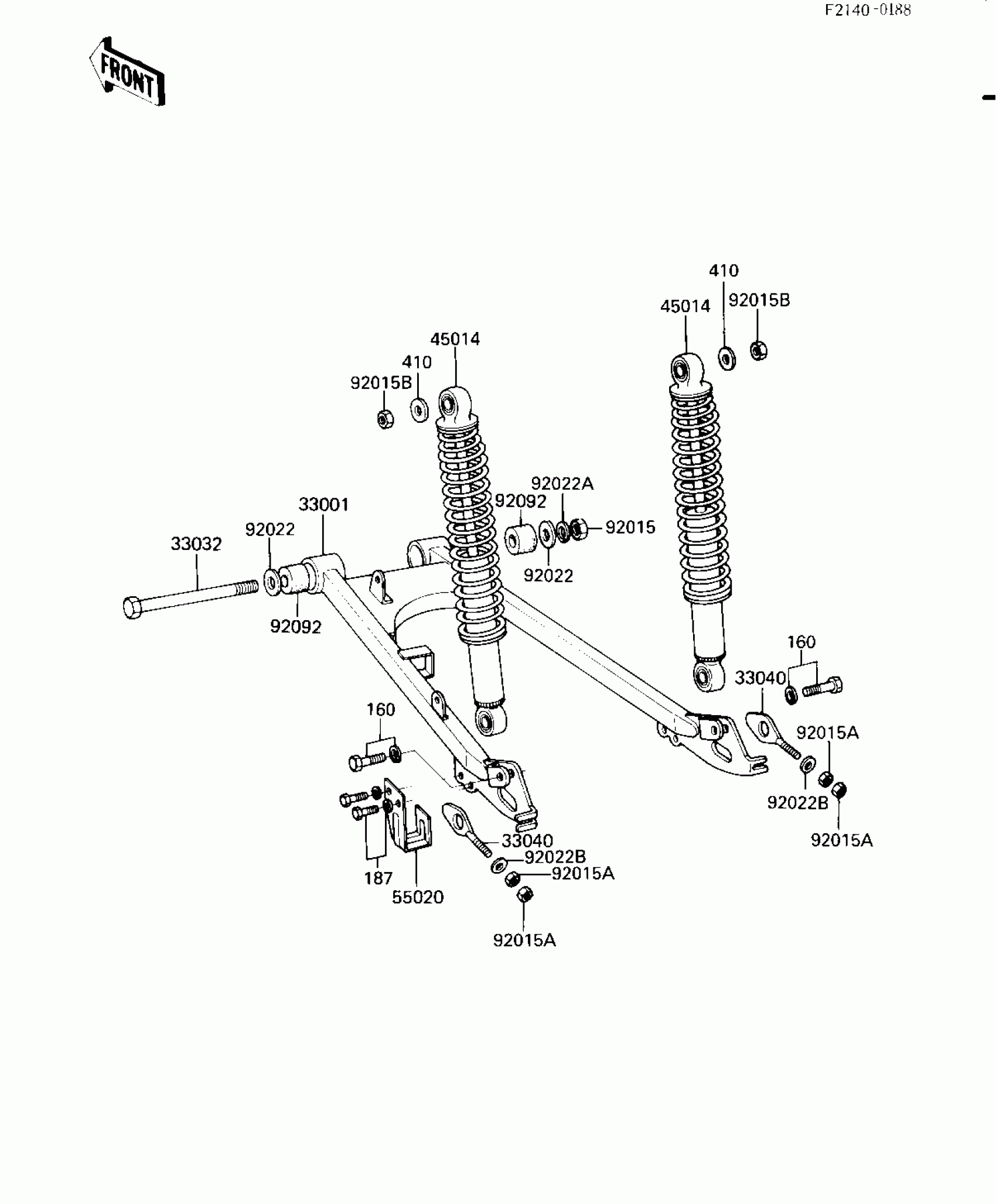

Kawasaki KD80 SWING ARM/SHOCK ABSORBERS Diagram
#
Description
Price
1
NUT,CAP,12MM
92020-014
Unavailable
2
WASHER-SPRING,12MM
461F1200
Unavailable
3
WASHER-PLAIN-SMALL,12MM
410B1200
Unavailable
4
SHOCK ABSBR RR
45014-100
Unavailable
5
SHAFT,SWING ARM PIVOT
33032-043
Unavailable
6
WASHER-PLAIN-SMALL,12MM
410B1200
Unavailable
7
BUSHING-RUBBER
92092-005
Unavailable
8
ARM,SWINGING
33001-055
Unavailable
9
WASHER-SPRING,12MM
461F1200
Unavailable
10
NUT-HEX-FINE
314B1200
Unavailable
11
BOLT HEX HEAD 10X28
113N1028
Unavailable
12
WASHER SPRING 10MM
461F1000
Unavailable
13
BOLT-UPSET 6X14
112B0614
Unavailable
14
WASHER SPRING 6MM
461F0600
Unavailable
15
GUARD,CHAIN
55020-012
Unavailable
16
ADJUSTER CHAIN
33040-008
Unavailable
17
WASHER PLAIN
92022-024
Unavailable
18
NUT 6MM
311B0600
Unavailable
19
BOLT,10X25
92003-017
Unavailable
20
TORQUE LINK,RR BRAKE
43007-037
Unavailable
21
WASHER SPRING 10MM
461F1000
Unavailable
22
NUT-HEX-FINE,10MM
314B1000
Unavailable
23
PIN COTTER 2.0X15
550D2015
Unavailable
24
BOLT,10X32
92003-003
Unavailable
