Description

Price

41035A

PANEL-ASSY-BRAKE,RR

41035-1262

$190.89

41048

SHOE-BRAKE

41048-1020

$22.53

41050A

CAM-BRAKE

41050-1080

$17.10

41053A

LEVER-BRAKE CAM

41053-1019

Unavailable

41068

AXLE,RR

41068-1263

Unavailable

41085

INDICATOR,BRAKE SHOE

41085-003

$14.51

42041

SPROCKET-HUB,34T

42041-1309

$44.69

49030

HUB,RR

49030-1101

$243.31

92004

STUD,8X18

92004-1189

Unavailable

92015

NUT,6MM

41072-007

$3.92

92015A

NUT,FLANGED,12MM

92015-1156

Unavailable

92015B

NUT,FLANGED,LOCK,8MM

92015-1668

$4.69

92055

RING-O,BRAKE CAM

92055-004

$4.80

92057

CHAIN,DRIVE,EK420RX102L

92057-1272

$81.89

92058

JOINT-CHAIN

92058-1063

Unavailable

92081

SPRING,BRAKE SHOE

92081-1766

$8.03

92143

COLLAR,12.7X17.3X98

92143-1165

Unavailable

92143A

COLLAR,L=39.5

92143-1168

Unavailable

92143B

COLLAR,12.2X22X7.5

92143-1180

$5.51

110

BOLT,6X30

110G0630

$1.36

550

PIN-COTTER,3.0X25

550D3025

$0.58

601

BEARING-BALL,#6201UG

601B6201UG

$19.40

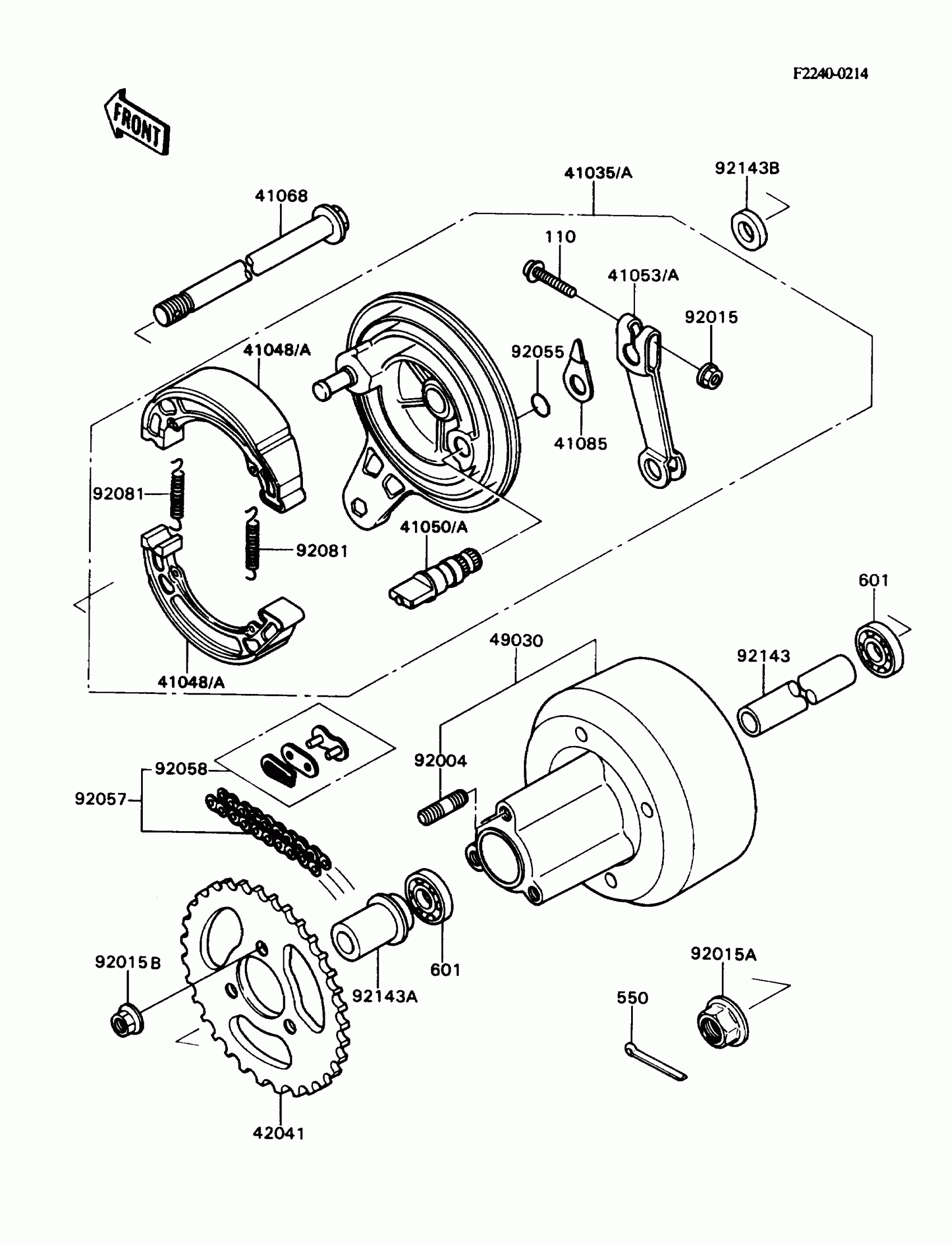

Kawasaki KD80 Rear Hub Diagram

PANEL-ASSY-BRAKE,RR

SHOE-BRAKE

CAM-BRAKE

LEVER-BRAKE CAM

AXLE,RR

INDICATOR,BRAKE SHOE

SPROCKET-HUB,34T

HUB,RR

STUD,8X18

NUT,6MM

NUT,FLANGED,12MM

NUT,FLANGED,LOCK,8MM

RING-O,BRAKE CAM

CHAIN,DRIVE,EK420RX102L

JOINT-CHAIN

SPRING,BRAKE SHOE

COLLAR,12.7X17.3X98

COLLAR,L=39.5

COLLAR,12.2X22X7.5

BOLT,6X30

PIN-COTTER,3.0X25

BEARING-BALL,#6201UG
