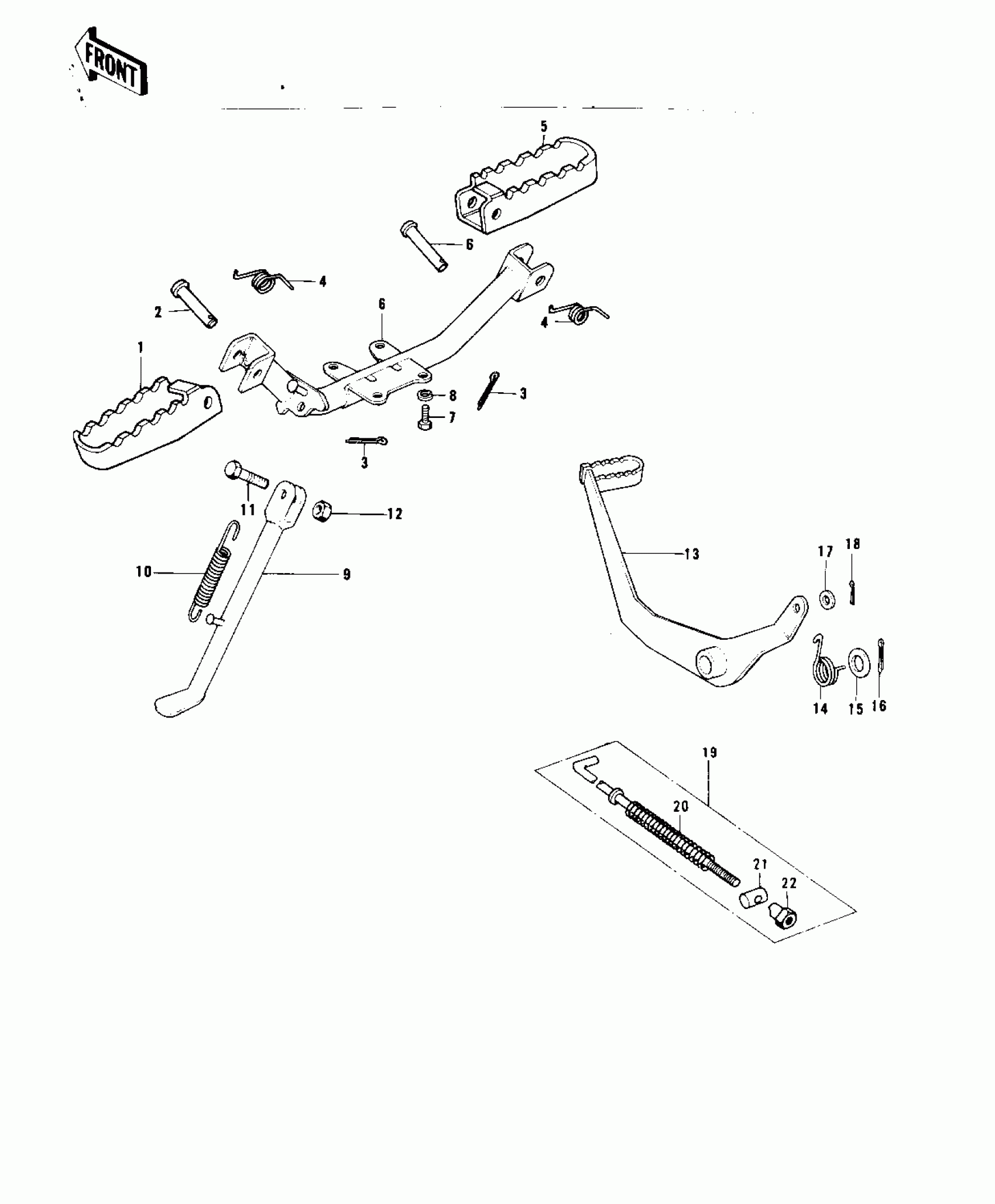

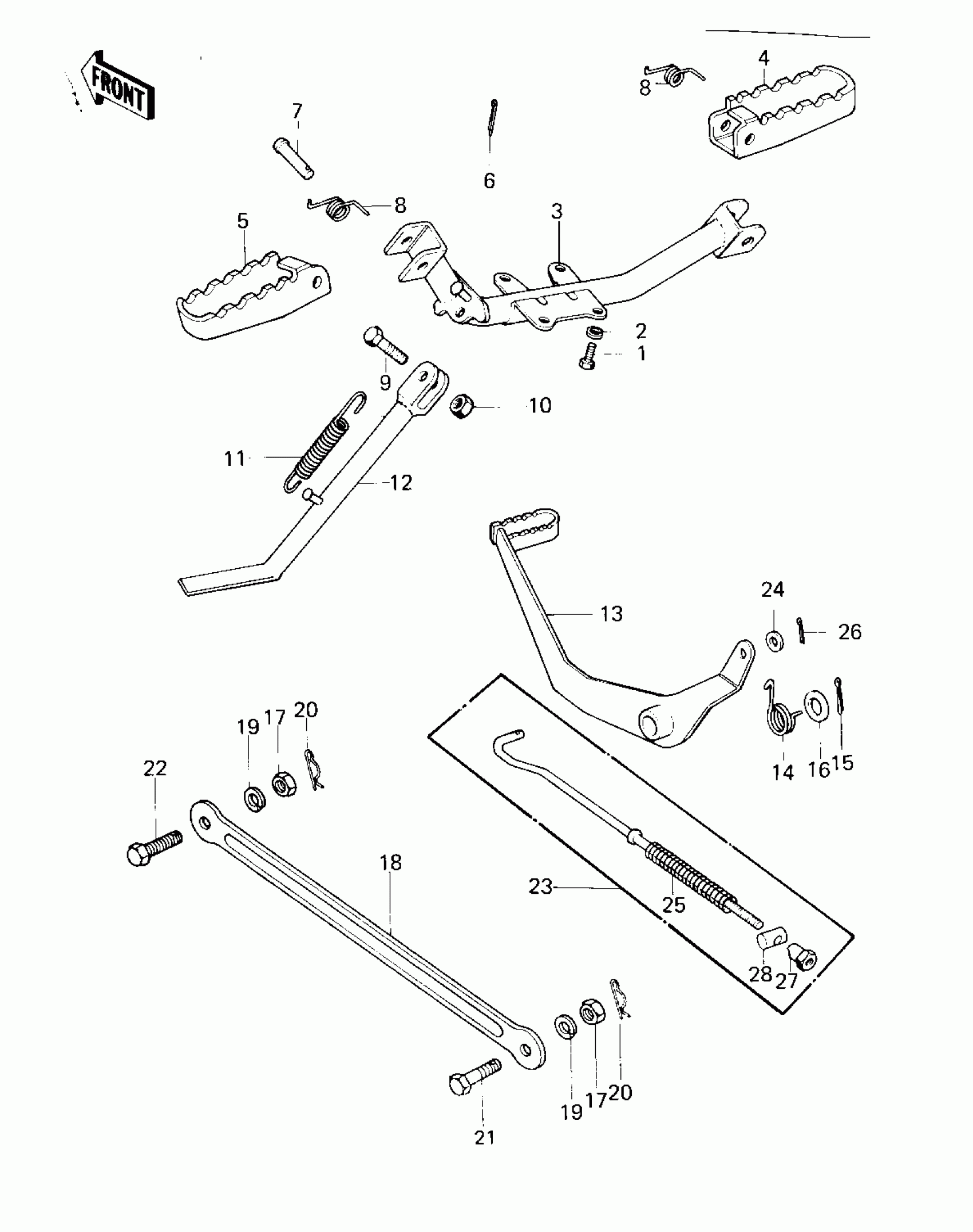

Kawasaki KD80 FOOTRESTS/STAND/BRAKE PEDAL Diagram
#
Description
Price
1
BOLT-SMALL-UPSET,8X18
115G0818
Unavailable
1
BOLT-SMALL-UPSET,8X18
115G0818
Unavailable
2
WASHER SPRING 8MM
461F0800
Unavailable
3
BAR,FOOTREST
34002-047
Unavailable
4
BAR,R.H FOOTREST
34028-023
Unavailable
5
BAR,L.H FOOTREST
34028-024
Unavailable
6
PIN COTTER 2.5X16
550D2516
Unavailable
7
PIN,8X31
92043-080
Unavailable
8
SPRING,FOOTRESTBAR
92083-027
Unavailable
9
BOLT,10X28
113G1028
Unavailable
10
NUT-HEX-FINE,10MM
314B1000
Unavailable
11
SPRING MAIN STAND
34023-005
Unavailable
12
STAND-SIDE
34024-1013
Unavailable
13
PEDAL,BRAKE
43001-062
Unavailable
14
SPRING-BRAKE PEDAL
43005-020
Unavailable
15
PIN-COTTER,3.0X30
550D3030
Unavailable
16
WASHER BRAKE PEDAL
92022-085
Unavailable
17
NUT-HEX-FINE,10MM
314B1000
Unavailable
18
TORQUE LINK,RR BRAKE
43007-037
Unavailable
19
WASHER SPRING 10MM
461F1000
Unavailable
20
PIN-SNAP,8MM
554A0800
Unavailable
21
BOLT,10X32
92003-003
Unavailable
22
BOLT,10X25
92003-017
Unavailable
23
ROD ASSY,REAR BRAKE
43010-5004
Unavailable
24
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
25
SPRING,BRAKE ROD
43012-001
Unavailable
26
PIN COTTER 2.0X15
550D2015
Unavailable
27
NUT,BRAKE ROD
92015-042
Unavailable
28
PIN,BRAKE ROD
92043-039
Unavailable
